CT 2mm Post Header Asmbly: Box V DIP

CT 2mm Post Header Asmbly: Box V DIP-CAT-3983178-PHBXVD

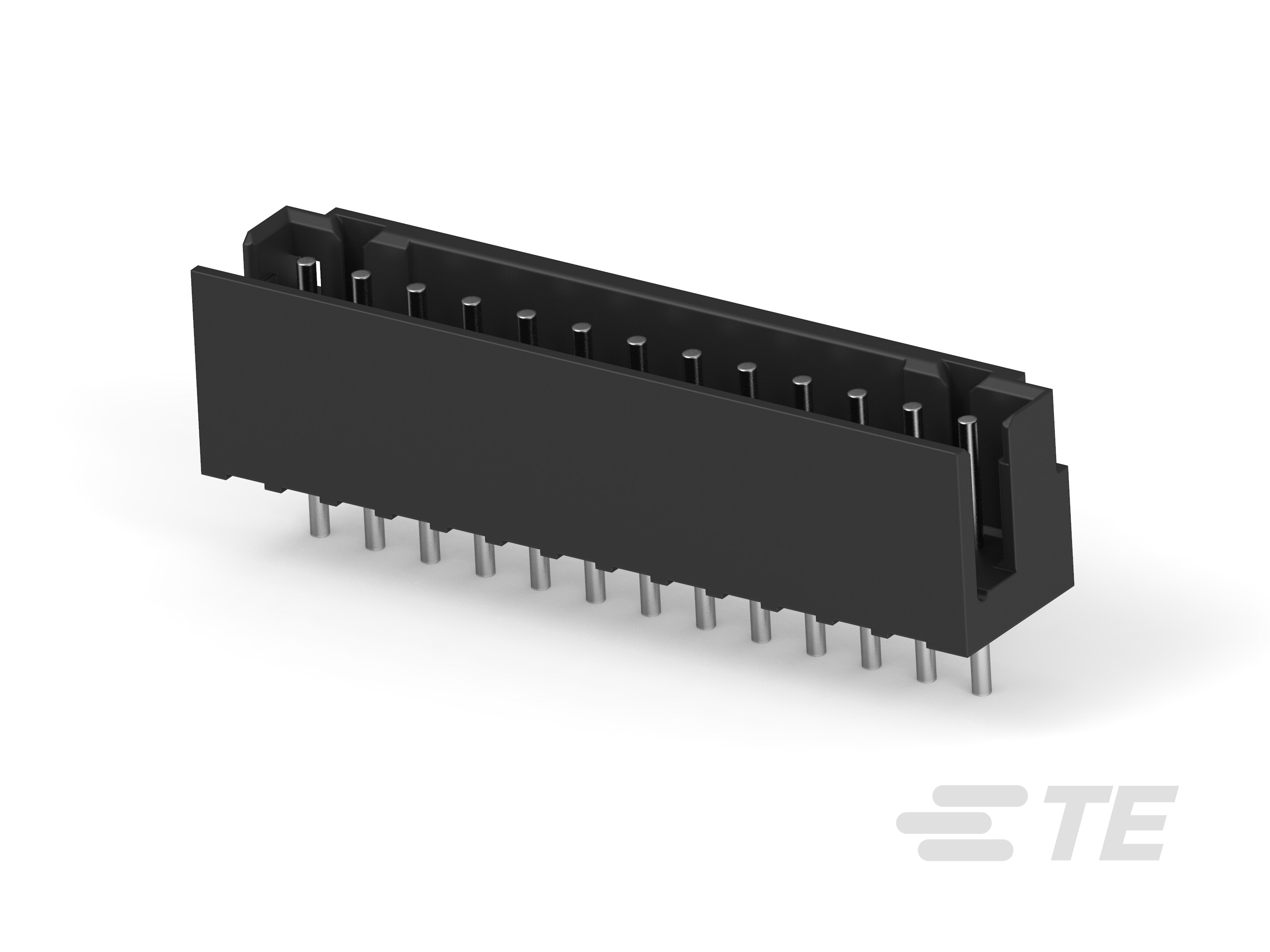

AMP CT 2mm Post Header Assembly (Box-V DIP), Vertical PCB Mount, Shrouded Header Type, Wire-to-Board Connector System.
More Less

Product Features

  • PCB Connector Assembly Type : PCB Mount Header

  • PCB Mount Orientation : Vertical

  • Connector System : Wire-to-Board

  • Number of Positions : 12, 11, 3, 6, 8, 7, 10, 5, 15, 13, 14, 4, 2, 9

  • Number of Rows : 1

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Number of Columns  13

  • Number of Loaded Positions  13

  • Connector Contact Load Condition  Fully Loaded

  • PCB Mount Orientation  Vertical

  • Number of Positions  12, 11, 3, 6, 8, 7, 10, 5, 15, 13, 14, 4, 2, 9

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VDC) 125

  • Operating Voltage (VAC) 125

Contact Features

  • Contact Mating Area Length (mm) 4.5, 4.2

  • Contact Mating Area Length (in) .177, .165

  • Contact Shape & Form  Rounded, Round

  • Contact Mating Area Plating Material Thickness (µm) 1, 1 – 2

  • Contact Mating Area Plating Material Thickness (µin) 39.37, 39.37 – 78.73

  • Contact Mating Area Plating Material Finish  Bright, Matte

  • Mating Pin Diameter  .6 mm [ .024 in ]

  • PCB Contact Termination Area Plating Material Thickness (µm) 1, 1 – 2

  • PCB Contact Termination Area Plating Material Thickness (µin) 39.37, 39.37 – 78.73

  • Contact Base Material  Brass

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Underplating Material  Nickel

  • Contact Layout  Inline

  • Contact Mating Area Plating Material  Tin

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 4, 3

Operation/Application

  • Assembly Process Feature  Pick and Place Cover

  • Circuit Application  Power & Signal

Dimensions

  • Connector Height (mm) 6.8

  • Connector Height (in) .267, .268

  • Connector Length (mm) 23.8, 27.8, 19.8, 7.8, 15.8, 9.8, 5.8, 17.8, 11.8, 29.8, 31.8, 13.8, 21.8, 25.8

  • Connector Length (in) 1.094, 1.095, 1.173, .78, .228, .858, .543, .307, .622, .937, .701, 1.016, 1.252, .386, .465

  • Connector Width (mm) 3.6, 5.8

  • Connector Width (in) .141, .228

  • PCB Thickness (Recommended) (mm) .8, 1.6

  • PCB Thickness (Recommended) (in) .031 – .063, .063

Mechanical Attachment

  • Panel Mount Feature  With

  • Mating Retention Type  Detent Window, Polarized Lock

  • Mating Alignment Type  Polarization

  • PCB Mount Retention Type  Boardlock, Kinked Legs

  • Mating Retention  Without

  • PCB Mount Alignment Type  Kinked Legs, Locating Posts

  • PCB Mount Retention  With

  • PCB Mount Alignment  With, Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Housing Material  Nylon 66, 66 Nylon

  • Centerline (Pitch) (mm) 2

  • Centerline (Pitch) (in) .078, .079

Termination Features

  • Termination Post & Tail Length  3.2 mm [ .126 in ]

  • Termination Post & Tail Diameter  .6 mm [ .024 in ]

  • Termination Method to PCB  Through Hole - Solder

Industry Standards

  • Compatible With Agency/Standards Products  UL, CSA

  • Compatible With Approved Standards Products  UL E28476, CSA LR7189

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  200, 1000, 20, 500

  • Packaging Method  Box, Bag, Tube

Product Type Features

  • PCB Connector Assembly Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Partially Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

Body Features

  • Primary Product Color  Yellow, Black, Natural, Blue

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-3983178-PHBXVD
