This product is not currently available. For more information, including distributor inventory, please contact us.

View products below to see detailed pricing

  • Product Listing

This product is not currently available. For more information, including distributor inventory, please contact us.

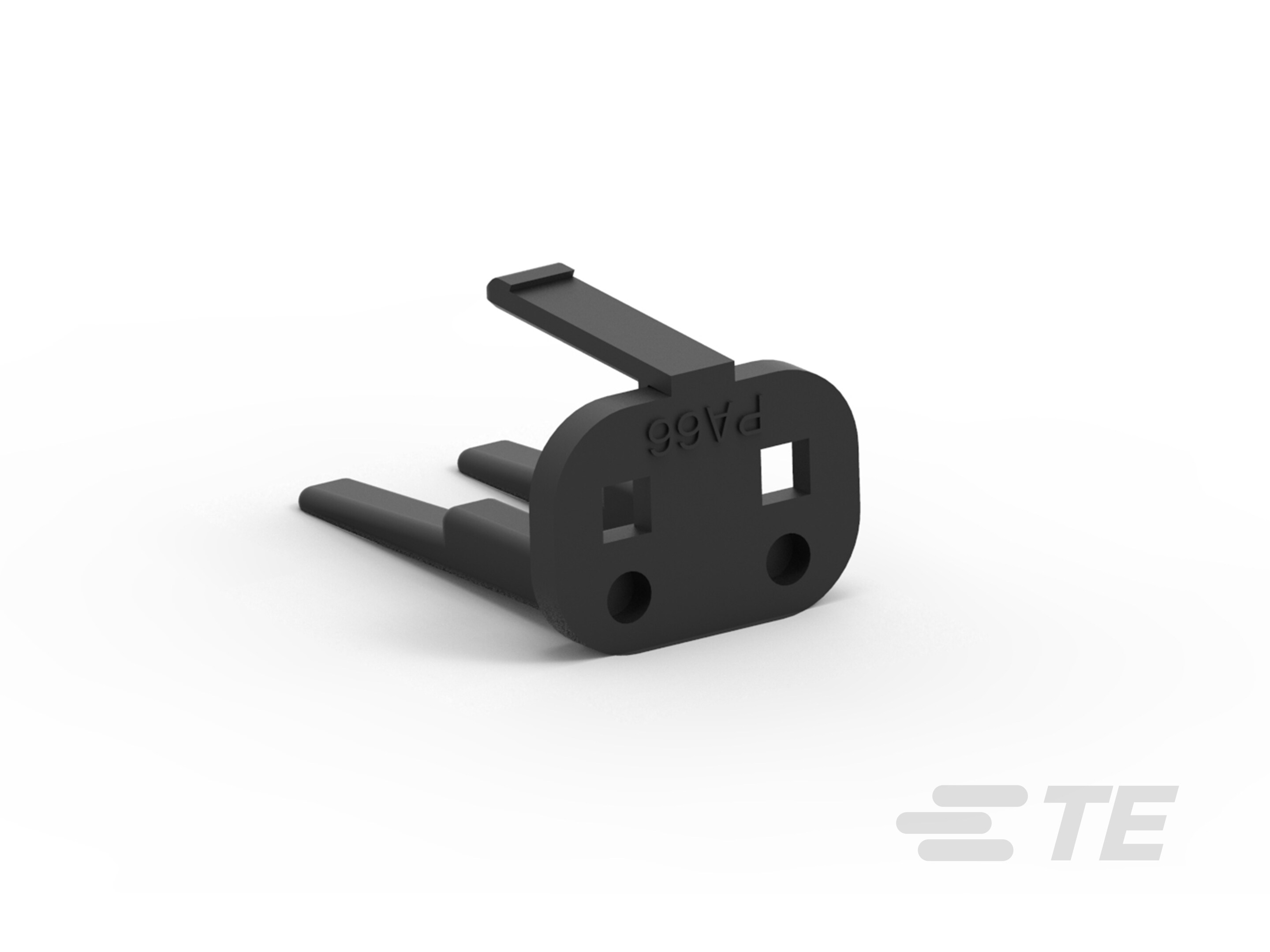

Sealed Connector: TPAs, Signal Double Lock, 2.5 mm

Sealed Connector: TPAs, Signal Double Lock, 2.5 mm-CAT-526SDL-SEALTP
2.5mm Sealed Connector: TPAs, Signal Double Lock Connectors
More Less

Product Features

  • Connector Hardware Accessory Type : TPA (Terminal Position Assurance)

  • Primary Product Color : Black

  • Number of Positions : 2, 3, 4, 5, 6

  • Operating Temperature (Max) : 105 °C [ 221 °F ]

  • Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Hardware Accessory Type  TPA (Terminal Position Assurance)

  • Hardware Accessory Function  Position Assurance

Configuration Features

  • Number of Positions  2, 3, 4, 5, 6

Body Features

  • Primary Product Color  Black

Dimensions

  • Product Width (mm) 4.8, 6, 7.3, 8.5, 9.8, 10.84, 12.3, 13.5, 14.8, 16

  • Product Width (in) .189, .236, .287, .334, .386, .427, .484, .531, .583, .63

  • Product Length (mm) 6.95, 9.2

  • Product Length (in) .273, .362

  • Product Height (mm) 3.35, 4.31

  • Product Height (in) .132, .17

Usage Conditions

  • Operating Temperature (Max)  105 °C [ 221 °F ]

  • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

Industry Standards

  • Glow Wire Rating  Standard Part - Not Glow Wire

Reference Number

  • TE Internal Number CAT-526SDL-SEALTP
