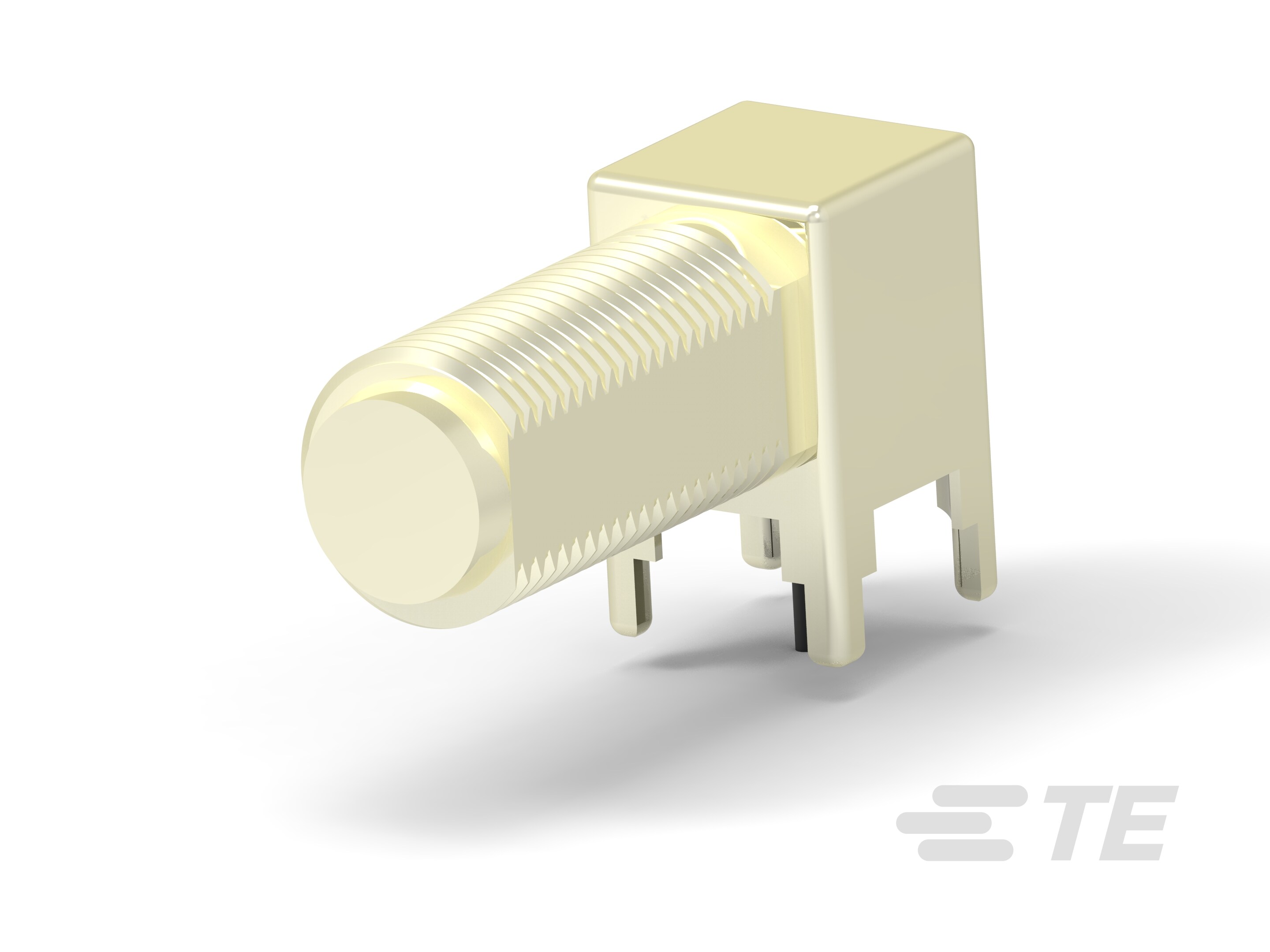

F Type Connector: Elbow Jack PCB (Jack), Right Angle

Please review product documents or contact us for the latest agency approval information.

• Termination Method to PCB  Through Hole - Solder, Surface Mount

• Termination Post & Tail Length (mm) 2.9, 6.7

• Termination Post & Tail Length (in) .263, .114

• PCB Mount Orientation  Right Angle

• Number of Positions  1

• Number of Coaxial Contacts  1

• Body Underplating Material  Copper

• Body Material  Zinc Alloy

• Body Material Finish  Plated

• Body Plating Material  Nickel

• RF Connector Center Contact Underplating Material  Copper

• RF Connector Center Contact Plating Material  Tin

• RF Connector Center Contact Material  Phosphor Bronze

• Packaging Quantity  1, 100

• Packaging Method  Box, Tray

• Profile Height from PCB (mm) 11, 13.1

• Profile Height from PCB (in) .515, .433

• RF Interface  F Type

• RF Connector Style  Jack

• Connector System  Cable-to-Panel, Cable-to-Board

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• Impedance (Ω) 75

• RF Connector Coupling Mechanism  Threaded

• Connector Mounting Type  Board Mount

• RF Contact Captivation Method  Mechanical

• Detent  Without

• Operating Frequency (GHz) 2

• Dielectric Material  TPX

• EU RoHS Compliance  Compliant, Compliant with Exemptions

• EU ELV Compliance  Compliant, Compliant with Exemptions
