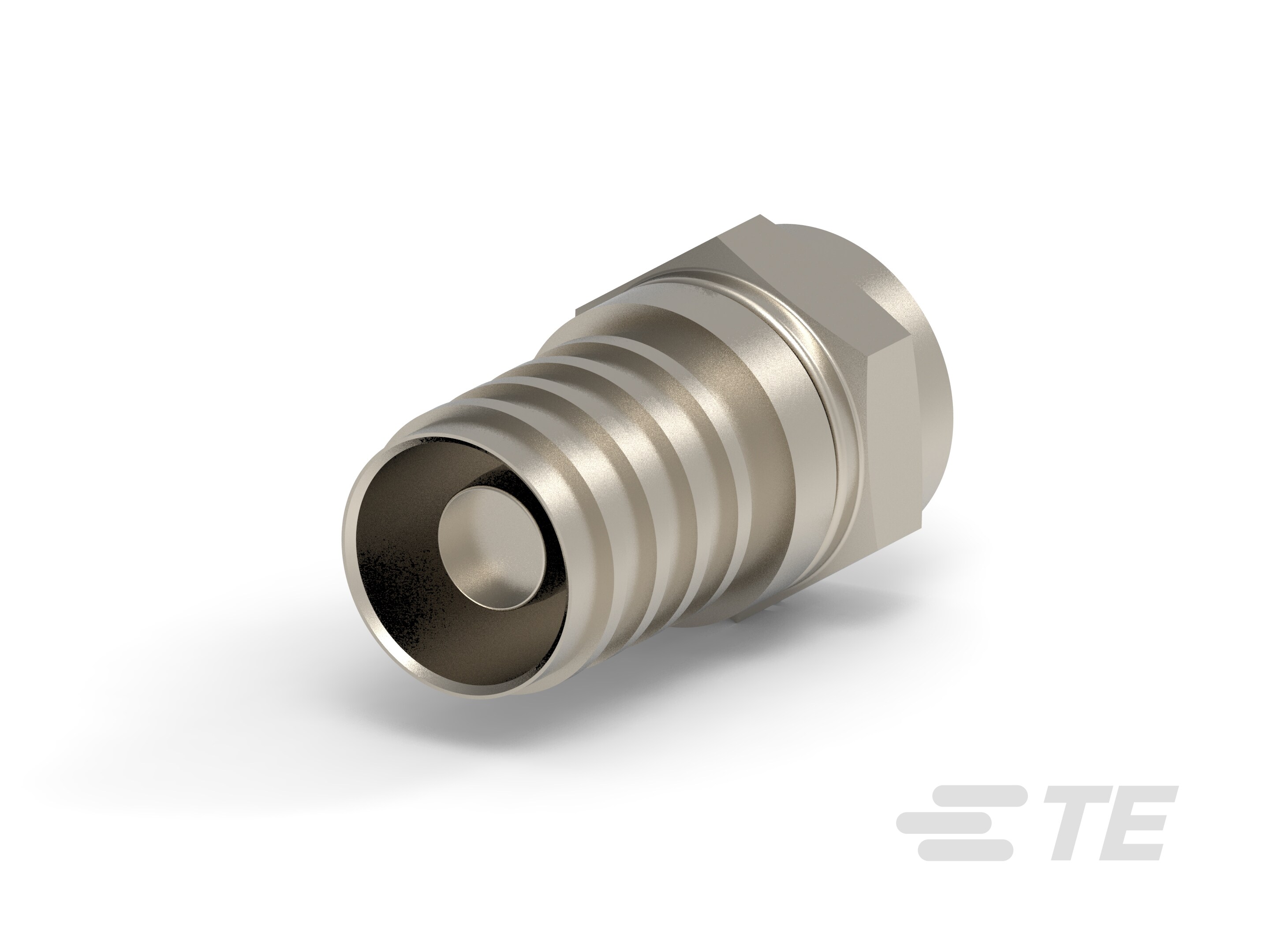

F Type Connectors: Plug, 75 Ohm

Please review product documents or contact us for the latest agency approval information.

• Crimp Type  Hexagonal Crimping

• RF Connector Center Contact Underplating Material  Nickel

• RF Connector Center Contact Plating Material  Tin, Nickel

• RF Connector Center Contact Material  Brass, Phosphor Bronze

• Packaging Quantity  10

• Packaging Method  Box, Tray, Carton

• RF Interface  F Type

• RF Connector Style  Plug

• Compatible With RF Cable Type  RG 179, RG 59, RG 6

• Connector System  Cable-to-Cable, Cable-to-Board

• Sealable  No

• Connector & Contact Terminates To  Wire & Cable

• RF Connector Mated Outer Diameter (Approximate) (mm) 9.45, 1.6, 9.65, 4.8, 6.79

• RF Connector Mated Outer Diameter (Approximate) (in) .372, .43, .38, .189, .063

• Impedance (Ω) 75

• RF Connector Coupling Mechanism  Screw, Threaded

• Connector Mounting Type  Cable Mount (Free-Hanging), Panel Mount

• RF Contact Captivation Method  Mechanical

• Detent  Without

• Operating Frequency (GHz) 1

• Number of Positions  1

• Number of Coaxial Contacts  1

• Cable Connector Orientation  Straight, Right Angle

• Body Material  Brass

• Body Plating Material  Nickel, Tin

• Termination Method to Wire & Cable  Screw-On, Crimp

• Operating Temperature Range (°C) -65 – 85, -55 – 85

• Operating Temperature Range (°F) -67 – 185, -85 – 185

• Dielectric Material  PTFE, Polypropylene

• EU RoHS Compliance  Compliant, Compliant with Exemptions, Not Compliant

• EU ELV Compliance  Not Compliant, Compliant with Exemptions
