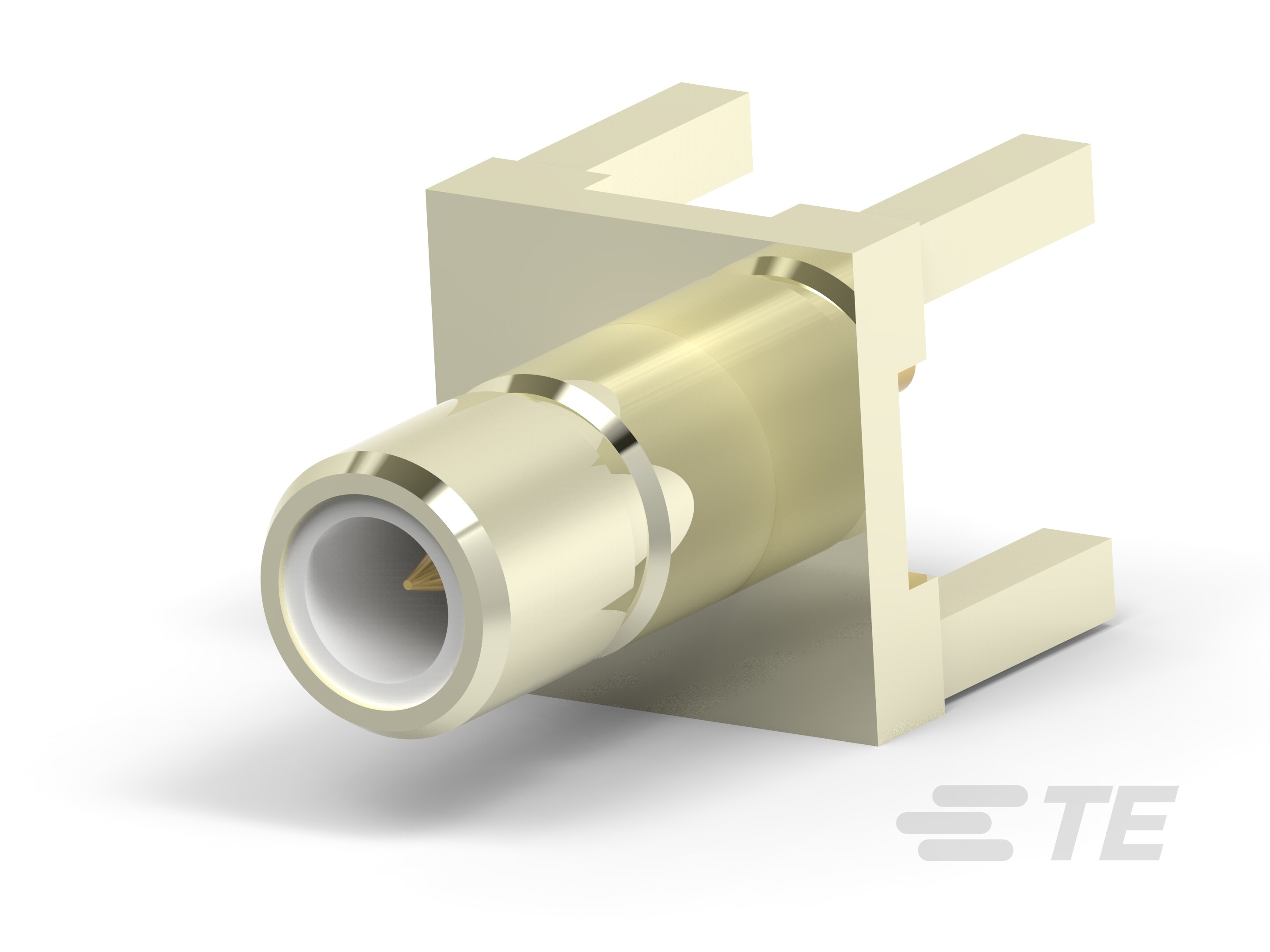

SMB Connector: Jack, Vertical Mount, Mated Outer Dia. 4.75mm, 50 Ohm

Please review product documents or contact us for the latest agency approval information.

• Connector Shape  Rectangular

• Connector Product Type  Connector Assembly

• RF Interface  SMB

• RF Connector Style  Jack

• Connector System  Cable-to-Board

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• Grade  Commercial, Mil-Type, Military

• Additional Features  Pin Protection

• Dielectric Material  PTFE

• EU RoHS Compliance  Compliant with Exemptions

• EU ELV Compliance  Compliant with Exemptions

• PCB Mount Orientation  Vertical

• Number of Positions  1

• Number of Coaxial Contacts  1

• Body Underplating Material  Nickel, Copper

• Body Material  Brass

• Body Material Finish  Plated

• Body Plating Material  Nickel, Tin, Gold

• Profile Height from PCB (mm) 7.62, 8.26, 10.16

• Profile Height from PCB (in) .325, .4, .3

• RF Connector Mated Outer Diameter (Approximate)  4.75 mm [ .187 in ]

• Termination Post & Tail Length (mm) 3.94, 4.44, 2.54

• Termination Post & Tail Length (in) .1, .155, .175

• Termination Method to PCB  Through Hole - Solder

• Termination Method to Wire & Cable  Solder Terminal

• RF Connector Center Contact Underplating Material  Nickel

• RF Connector Center Contact Plating Thickness (µin) 30

• RF Connector Center Contact Plating Material  Gold

• RF Connector Center Contact Material  Brass

• Impedance (Ω) 50

• RF Connector Coupling Mechanism  Push-On, Snap-Fit

• Connector Mounting Type  Board Mount

• RF Contact Captivation Method  Solder, Mechanical

• Detent  Without

• Operating Frequency (GHz) 4

• Operating Temperature Range  -65 – 85 °C [ -85 – 185 °F ]

• Packaging Method  Carton
