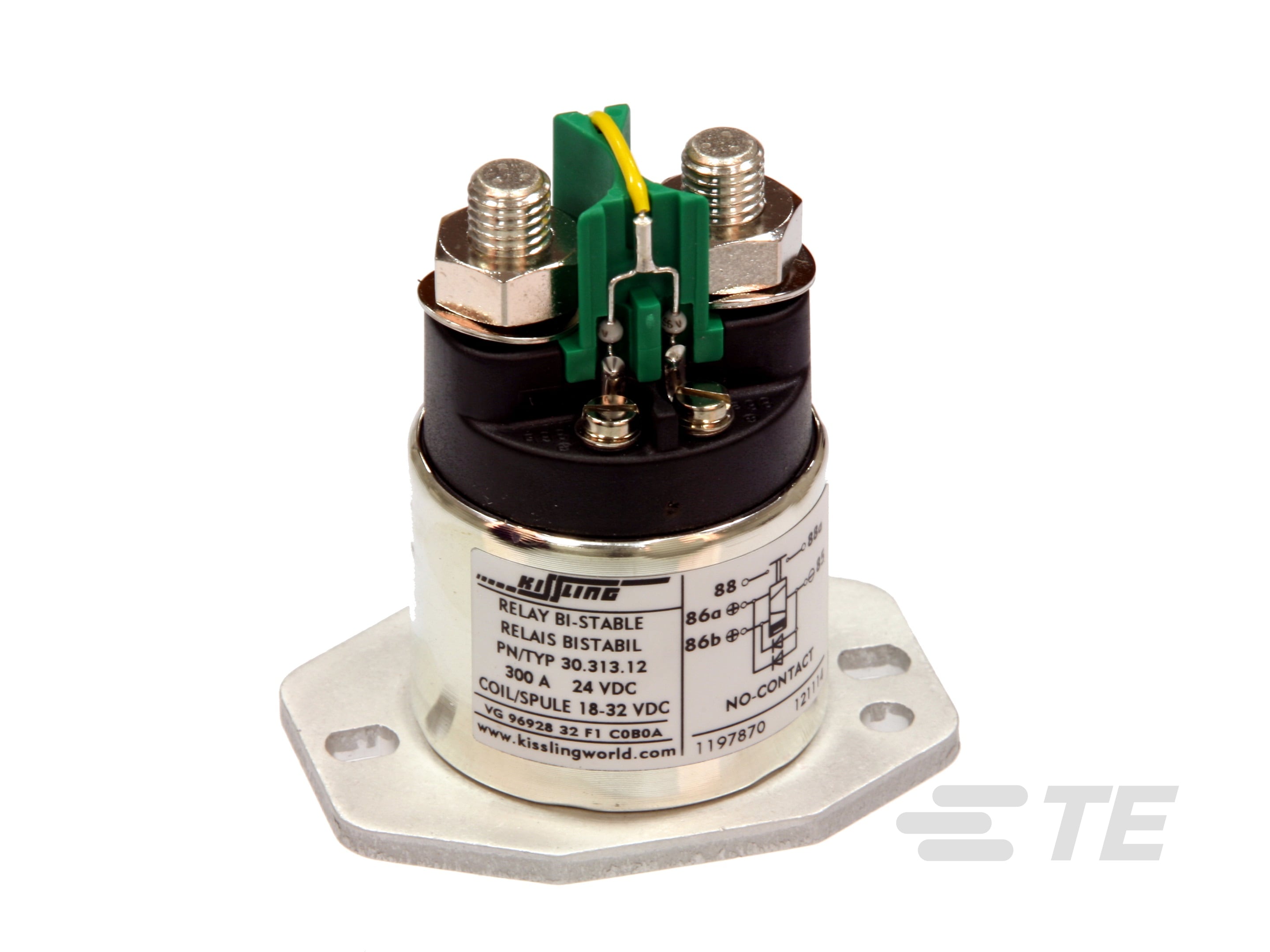

Power Relay, 300A, Standard, Bistable, 2 Coils, Polarized

Power Relay, 300A, Standard, Bistable, 2 Coils, Polarized-CAT-AL6-KSPR30300
The Series 30 300A bi-stable relay is polarized, featuring two coils and 6G shock and 4G vibration resistance. Sealed housing conforms to IP67 and IP6K9K.
More Less

Product Features

  • Relay & Contactor Type : General Purpose Power Relay, Intelligent Power Relay

  • Coil Magnetic System : Bistable, 2 Coils, Polarized

  • Contact Arrangement : 1 Form A SPST-NO, 1 Form X SPST-NO-DM

  • Contact Current Rating (A): 300

  • Coil Voltage Rating (VDC): 32, 16, 27, 18, 9, 48

Available from

LADD Inc
Overview

KISSLING Single Pole Bi-Stable Relays

Series 30 / 300A

The series 30 bi-stable relay meets even the most difficult operating requirements and is suited for various applications in severe conditions on commercial vehicles, buses, construction & agricultural vehicles, ground support equipment and fork lifts. These relays are available with a wide variety of configuration options including different contact configurations and coil voltages to have the right product for your needs.

Key Features

  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle
    • Features

    Please review product documents or contact us for the latest agency approval information.

    Packaging Features

    • Packaging Method  Carton

    Contact Features

    • Contact Material  Ag Alloy, AgSnO2, Silver Alloy

    Other

    • Contact Current Class (A) 300

    • EU RoHS Compliance  Compliant with Exemptions, Not Compliant

    • EU ELV Compliance  Compliant, Compliant with Exemptions

    Electrical Characteristics

    • Coil Resistance (Ω) 2.1 – 2.6, 8, 21, 7.8 – 8.4, 2, 3

    • Contact Current Rating (A) 300

    • Coil Voltage Rating (VDC) 32, 16, 27, 18, 9, 48

    • Contact Voltage Rating (VDC) 24, 36, 12

    • Coil Power Rating DC (W) 67, .067, .068, 72, .055, 55, 68

    Dimensions

    • Product Height (mm) 110, 90, 55.65, 76.5, 55.5

    • Product Height (in) 3.01, 4.33, 2.18, 2.19, 3.54

    • Product Length (mm) 106, 90, 101.7, 78

    • Product Length (in) 4.17, 3.07, 4, 3.54

    • Product Width (mm) 94, 84, 60, 62

    • Product Width (in) 2.36, 3.7, 3.3, 2.44

    Mechanical Attachment

    • Product Mounting Feature Type  Mounting Brackets, Flange with Mounting Slots, Flange with Mounting Holes

    • Product Mount Type  Panel Mount, Chassis Mount

    Configuration Features

    • Coil Special Features  Coil Suppression Diode, None

    • Contact Number of Poles  2, 1

    • Contact Arrangement  1 Form A SPST-NO, 1 Form X SPST-NO-DM

    Product Type Features

    • Relay & Contactor Type  General Purpose Power Relay, Intelligent Power Relay

    Operation/Application

    • Coil Magnetic System  Bistable, 2 Coils, Polarized

    Reference Number

    • TE Internal Number CAT-AL6-KSPR30300
