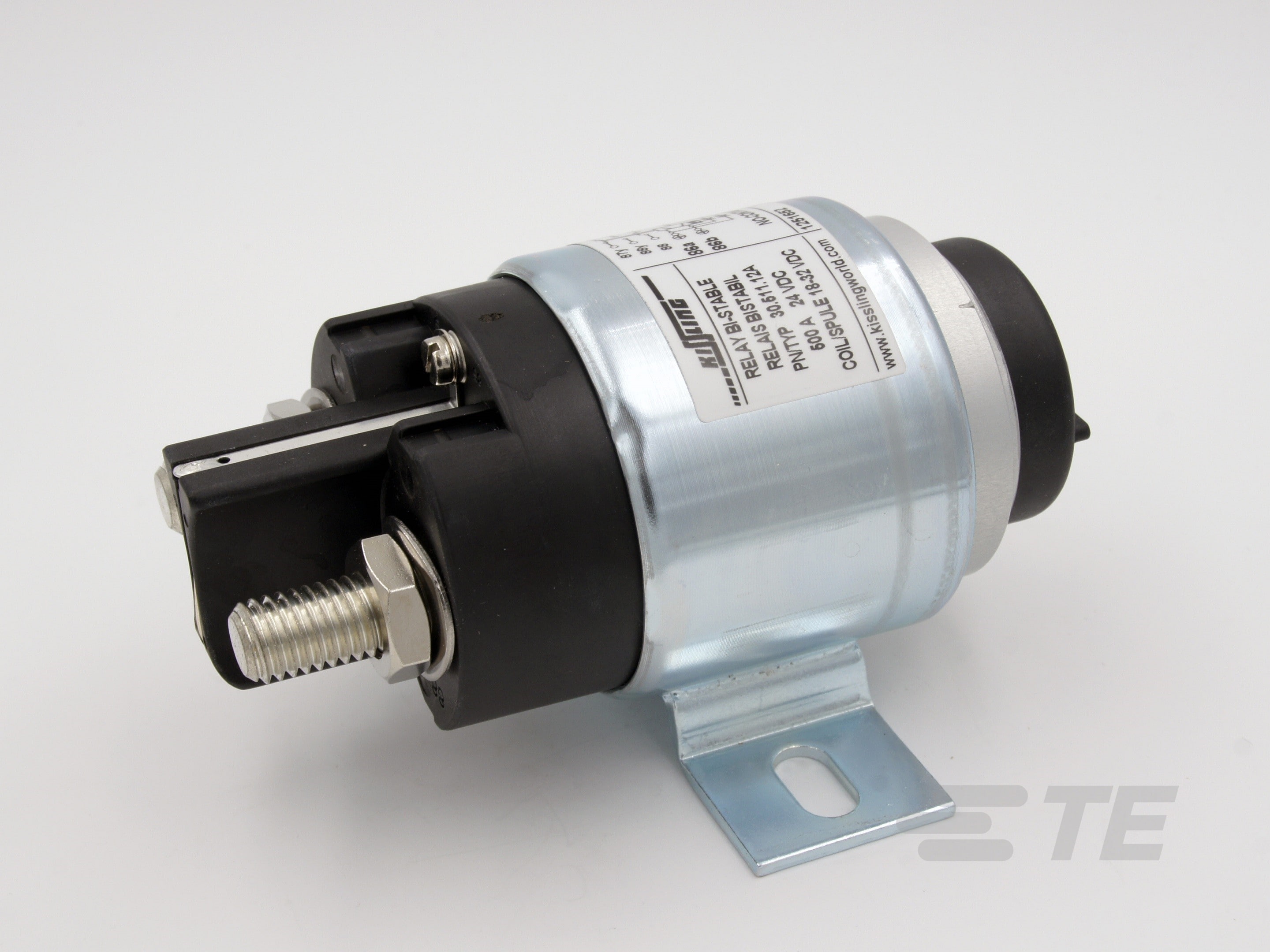

Power Relay, 500A, Standard, Bistable, 2 Coils, Polarized

Power Relay, 500A, Standard, Bistable, 2 Coils, Polarized-CAT-AL6-KSPR30500
The Series 30 500A bi-stable relay is polarized, featuring two coils and 6G shock and 4G vibration resistance. Sealed housing conforms to IP67 and IP6K9K.
More Less

Product Features

  • Relay & Contactor Type : General Purpose Power Relay

  • Coil Magnetic System : Bistable, 2 Coils, Polarized

  • Contact Arrangement : 1 Form X SPST-NO-DM

  • Contact Current Rating (A): 500

  • Coil Voltage Rating (VDC): 18, 9, 32, 16

Available from

LADD Inc
Overview

KISSLING Single Pole Bi-Stable Relays

Series 30 / 500A

The series 30 bi-stable relay is suited for severe conditions on commercial vehicles, buses, construction & agricultural vehicles, ground support equipment and fork lifts. Important advantages include low heat generation in the contact area based on low contact voltage drop, a compact design, silver alloy contact material and the use of mechanical and high thermal stability insulating compounds.

Key Features

  • Sealed housing conforms to IP6K9K
  • Robust design
  • Variety of configuration options
  • 6G shock and 4G vibration resistant
  • Main contact current rated for continuous current and 100% duty cycle



Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Carton

Contact Features

  • Contact Material  Silver Alloy, AgSnO2

Other

  • Contact Current Class (A) 500

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Electrical Characteristics

  • Coil Resistance (Ω) .6 – .85, 2.7 – 3.8

  • Contact Current Rating (A) 500

  • Coil Voltage Rating (VDC) 18, 9, 32, 16

  • Contact Voltage Rating (VDC) 24, 28, 12

  • Coil Power Rating DC (W) .073, .168

Dimensions

  • Product Height (mm) 108.5, 65.5, 76.5

  • Product Height (in) 3.01, 4.27, 2.57

  • Product Length (mm) 89, 127.5, 105.5

  • Product Length (in) 4.15, 5.01, 3.5

  • Product Width (mm) 94, 68

  • Product Width (in) 2.67, 3.7

Mechanical Attachment

  • Product Mounting Feature Type  Mounting Brackets, Flange with Mounting Slots

  • Product Mount Type  Chassis Mount, Panel Mount

Configuration Features

  • Coil Special Features  Coil Suppression Diode

  • Contact Number of Poles  1

  • Contact Arrangement  1 Form X SPST-NO-DM

Product Type Features

  • Relay & Contactor Type  General Purpose Power Relay

Operation/Application

  • Coil Magnetic System  Bistable, 2 Coils, Polarized

Reference Number

  • TE Internal Number CAT-AL6-KSPR30500
