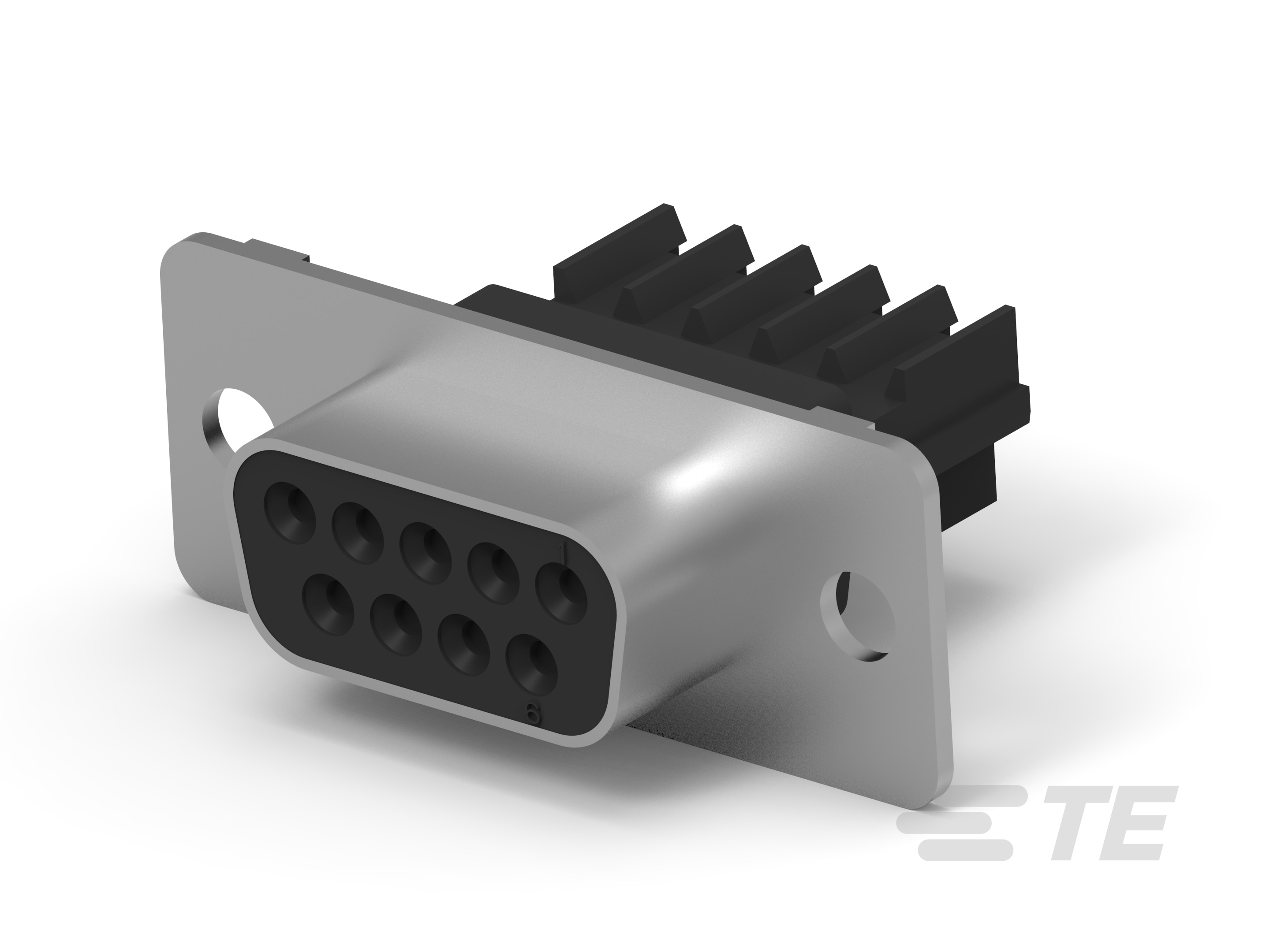

IDC D-Sub: Receptacle Assembly, Wire to Wire, Signal, 2.74 mm

IDC D-Sub: Receptacle Assembly, Wire to Wire, Signal, 2.74 mm-CAT-AM7-248H8
IDC D-sub connector receptacle assembly, intended for wire to wire applications with Insulation Displacement Crimp (IDC) mass termination. Has a centerline pitch of 2.74 mm and used for signal circuit application.
More Less

Product Features

  • Connector & Housing Type : Receptacle

  • Solid Wire Size (AWG): 30 – 26, 26 – 22

  • Shielded : No

  • Connector System : Cable-to-Cable, Wire-to-Wire

  • Number of Positions : 9, 15

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Shell Material Configuration  All Plastic, Full Metal Shell

  • Connector & Housing Type  Receptacle

  • Connector System  Cable-to-Cable, Wire-to-Wire

  • Connector Product Type  Connector Assembly

  • Connector Shell Size  1, 2

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  9, 15

  • Number of Rows  2

  • Compatible With Wire & Cable Type  Discrete Wire, Round Jacketed Cable

Body Features

  • Cable Exit Angle  180°

  • Insert Material  Thermoplastic

  • Shell Plating Material  Tin

Contact Features

  • Contact Options  Installed

  • Contact Type  Socket

  • Contact Mating Area Plating Material Thickness (µin) 1, 30

  • Contact Size  Size 20

  • Contact Current Rating (Max) (A) 1.5, 2.4

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Mechanical Attachment

  • Mating Retention  With

  • Mating Retention Type  Mounting Holes

  • Connector Mounting Type  Cable Mount (Free-Hanging), Panel Mount

Housing Features

  • Housing Material  Thermoplastic

  • Shell Material  Steel

  • Centerline (Pitch) (mm) 1.38, 2.74

  • Centerline (Pitch) (in) .054, .108

Dimensions

  • Solid Wire Size (AWG) 30 – 26, 26 – 22

  • Wire Size (mm²) .4 – .6, .05 – .15, .15 – .4

  • Wire Size (AWG) 22 – 20, 25 – 22, 30 – 26, 26 – 22

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

  • Shielded  No

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Package

  • Packaging Quantity  112, 140

Reference Number

  • TE Internal Number CAT-AM7-248H8
