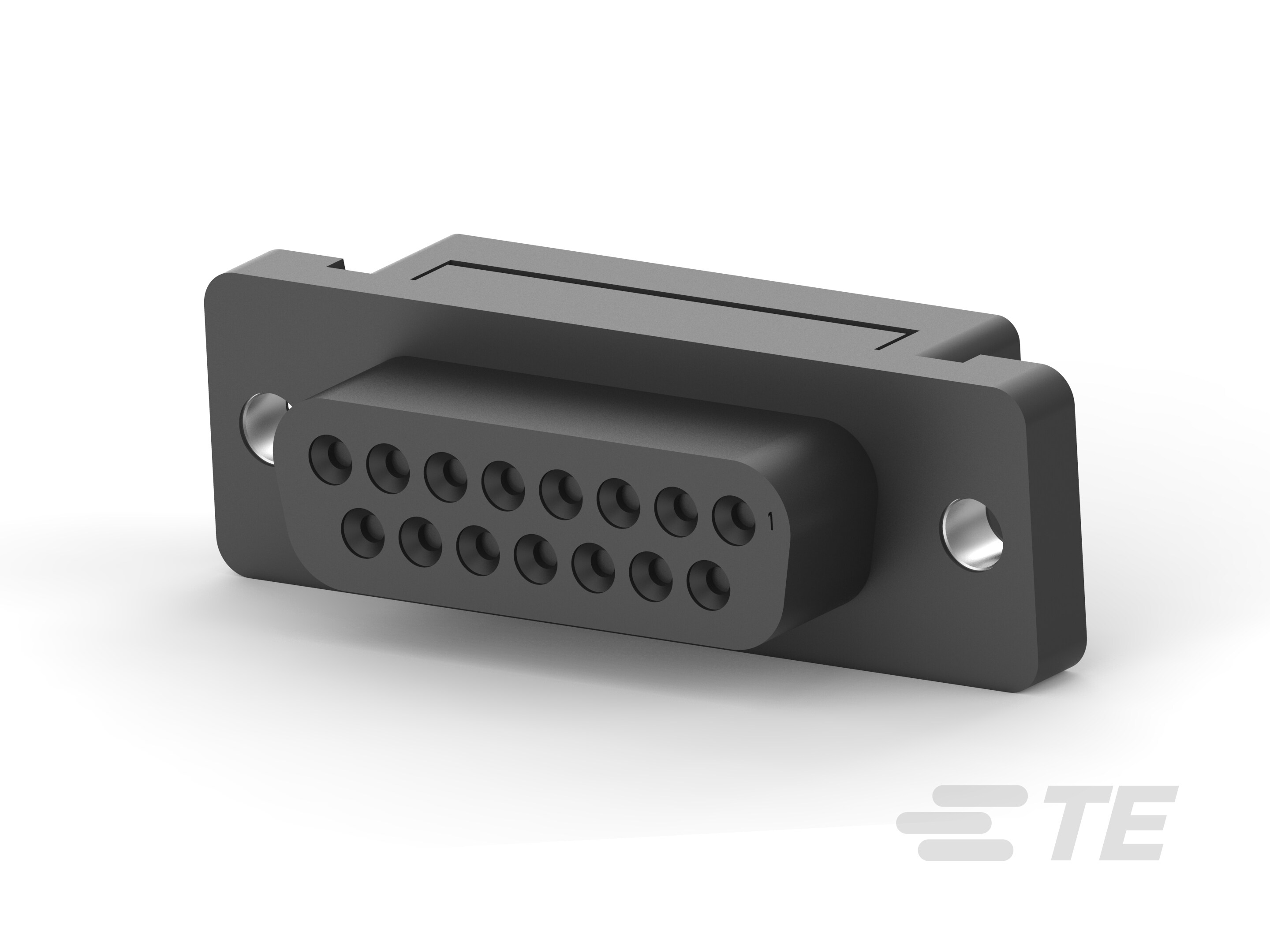

IDC D-Sub: Receptacle Assembly, Low Profile, Signal, 2.77 mm

IDC D-Sub: Receptacle Assembly, Low Profile, Signal, 2.77 mm-CAT-AM7-253
IDC D-sub connector low profile receptacle assembly, intended for wire to wire applications with Insulation Displacement Crimp (IDC) mass termination. Has a centerline pitch of 2.77mm, available in solid wire size range of 28 – 26 AWG and used for signal circuit application.
More Less

Product Features

  • Connector & Housing Type : Receptacle

  • Solid Wire Size (AWG): 28 – 26

  • Solid Wire Size (mm²): .1 – .13

  • Shielded : No

  • Connector System : Cable-to-Cable

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Tray, Tube

  • Packaging Quantity  40, 32

Product Type Features

  • Shell Material Configuration  Front Metal Shell, All Plastic

  • Connector & Housing Type  Receptacle

  • Connector System  Cable-to-Cable

  • Connector Product Type  Connector Assembly

  • Connector Shell Size  1, 2, 4, 5, 3

  • Connector & Contact Terminates To  Wire & Cable

Body Features

  • Mating Retention Feature Material  Steel, Brass

  • Cover Material  Thermoplastic

  • Shell Plating Finish  Bright

  • Insert Material  Brass

  • Shell Plating Material  Tin

  • Ribbon Cable Centerline Spacing  1.27 mm [ .05 in ]

  • Cable Exit Angle  180°, 90°

  • Connector Profile  Low

Contact Features

  • Wire Contact Termination Area Plating Material  Tin

  • Contact Type  Socket

  • Contact Mating Area Plating Material Thickness  .76 µm [ 30 µin ]

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Options  Installed

  • Contact Base Material  Phosphor Bronze

  • Contact Underplating Material  Nickel

  • Contact Mating Area Plating Material  Gold

  • Contact Size  Size 20

  • Contact Current Rating (Max) (A) 1.25

Dimensions

  • Accepts Cable Insulation Diameter Range  .81 – .97 mm [ .032 – .038 in ]

  • Solid Wire Size (AWG) 28 – 26

  • Solid Wire Size (mm²) .1 – .13

  • Wire Size (mm²) .08 – .15

  • Wire Size (AWG) 28 – 26

Operation/Application

  • Circuit Application  Signal

  • Shielded  No

Housing Features

  • Housing Material  Thermoplastic

  • Shell Material  Steel

  • Centerline (Pitch) (mm) 2.77, 1.38

  • Centerline (Pitch) (in) .054, .055

Mechanical Attachment

  • Mating Retention Type  Threaded Insert, 4-40 UNC

  • Thread Size  4-40 UNC 2B

  • Mating Retention  With

  • Mating Retention Feature Plating Material  Zinc, None

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Industry Standards

  • UL Flammability Rating  UL 94V-0

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Configuration Features

  • Number of Positions  15, 37, 25, 50, 9

  • Number of Rows  2, 3

  • Compatible With Wire & Cable Type  Ribbon Cable

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-AM7-253
