Sealed Fuse and Relay Boxes

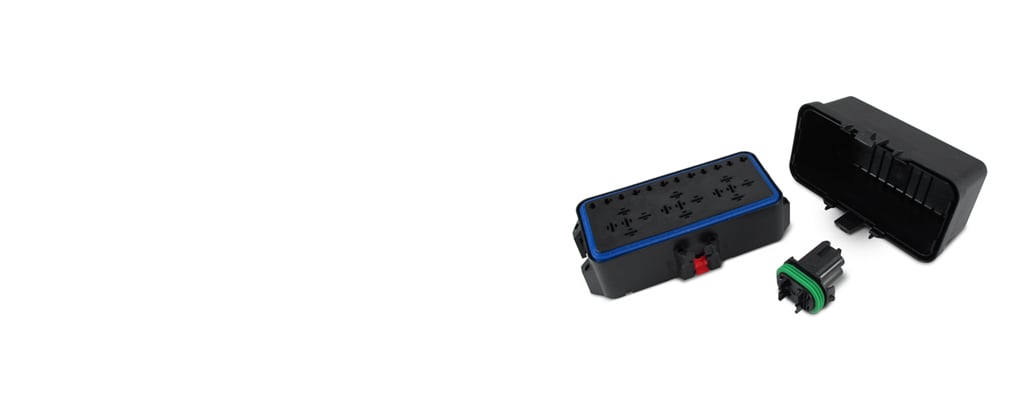

Sealed fuse and relay boxes provide electrical circuit protection and load switching capability in harsh environments. They accept AMP MCP contacts and use matching covers that provide an environmental seal. They feature a customizable layout and can be used in heavy-duty applications.
Product Features
-
Operating Temperature Range (°C): -40 – 125, -40 – 85, -40 – 65, -40 – 80
-
Operating Temperature Range (°F): -40 – 257, -40 – 185, -40 – 149, -40 – 176
-
IP Rating : IP67, IP6K7, IPX4
-
Number of Relays (Maximum) : 0, 6, 8
-
Number of Positions : 4, 40, 49, 60, 27, 38
-
Nominal Voltage Architecture (V): 24, 12
Overview
Sealed fuse and relay boxes feature a customizable layout and are designed for heavy-duty applications.
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Component Type Fuse Holder, Relay Holder
-
Sealable Yes
-
Fuse Type Mini ATM Fuse
-
Compatible With Relay Type ISO Mini
Configuration Features
-
Number of Relays (Maximum) 0, 6, 8
-
Number of Positions 4, 27, 38, 40, 49, 60
-
Number of Fuses (Maximum) 2
Electrical Characteristics
-
Nominal Voltage Architecture (V) 12, 24
Body Features
-
Secondary Locking No
Contact Features
-
Contact Current Rating (Max) (A) 20, 40
Housing Features
-
Centerline (Pitch) (mm) 7.8, 8.13
-
Centerline (Pitch) (in) .307, .32
Usage Conditions
-
Operating Temperature Range (°C) -40 – 125, -40 – 85, -40 – 65, -40 – 80
-
Operating Temperature Range (°F) -40 – 257, -40 – 185, -40 – 149, -40 – 176
-
Operating Temperature (Max) (°C) 65, 80, 85, 125
-
Operating Temperature (Max) (°F) 149, 176, 185, 257
Industry Standards
-
IP Rating IP67, IP6K7, IPX4
Reference Number
-
TE Internal Number CAT-AM7-FRB69
