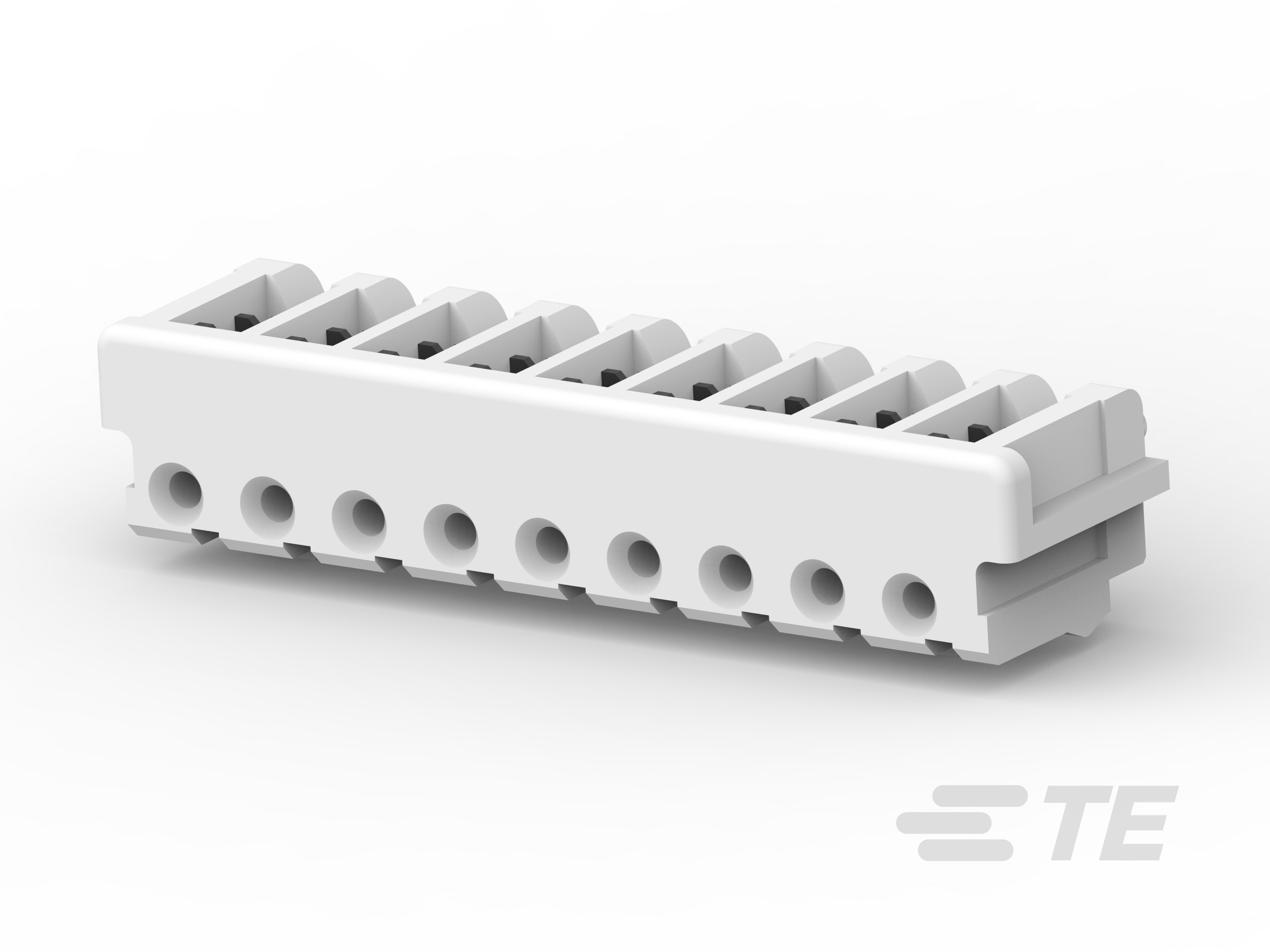

AMP COMMON TERMINATION HOUSINGS

AMP CT

More Less

Digital Datasheet|

Product Features

Connector Product Type : Housing, Connector Assembly
Connector & Housing Type : Receptacle
Connector System : Wire-to-Wire, Wire-to-Board
Number of Positions : 12, 11, 3, 6, 8, 7, 10, 5, 15, 13, 14, 4, 2, 9
Centerline (Pitch) (mm): 2
Centerline (Pitch) (in): .078, .079

Available from

Product	TE Part #	Documents	Connector Product Type	Connector System	Number of Positions	Centerline (Pitch)	Termination Method to Wire & Cable	Primary Product Color	Mating Retention	Sealable	Contact Current Rating (Max)	Circuit Application
CT CONN MT REC ASSY 3P Buy on te.com	173977-3	Product Drawing 3D PDF	Connector Assembly	Wire-to-Board	3	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 7P NATURAL Buy on te.com	179228-7	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	7	2 mm	Crimp	Natural	Without	No	4 A	Power & Signal
CT CRIMP REC HSG 6P BLUE	2-175778-6	Product Drawing 3D PDF	Housing	Wire-to-Board	6	2 mm	Crimp	Blue	With	No	-	Power & Signal
CT CRIMP TYPE REC HSG Buy on te.com	179228-2	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	2	2 mm	Crimp	Natural	Without	No	4 A	Power & Signal
2MM CT MT REC ASSY 11P N GOLD	1-176392-1	Product Drawing 3D PDF	Connector Assembly	Wire-to-Wire	11	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
2MM CT MT REC ASSY 8P N GOLD	176392-8	Product Drawing 3D PDF	Connector Assembly	Wire-to-Wire	8	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 7P BLUE	2-175778-7	Product Drawing 3D PDF	Housing	Wire-to-Board	7	2 mm	Crimp	Blue	With	No	-	Power & Signal
CT MT REC ASSY 4P GRAY Buy on te.com	2-179694-4	3D PDF	Connector Assembly	Wire-to-Board	4	2 mm	Insulation Displacement (IDC)	Gray	With	No	3 A	Power & Signal
CT MT REC ASSY 14P BLUE	3-173977-4	3D PDF	Connector Assembly	Wire-to-Board	14	2 mm	Insulation Displacement (IDC)	Blue	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 2P YELLOW Buy on te.com	4-173977-2	3D PDF	Connector Assembly	Wire-to-Board	2	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 6P YEL	4-175778-6	Product Drawing 3D PDF	Housing	Wire-to-Board	6	2 mm	Crimp	Yellow	With	No	-	Power & Signal
CT CRIMP-2 REC HSG 2P YELLOW Buy on te.com	4-179228-2	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	2	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 5P YELLOW	4-179228-5	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	5	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 9P YELLOW	4-173977-9	3D PDF	Connector Assembly	Wire-to-Board	9	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 14P BLUE	3-179228-4	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	14	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 3P YELLOW	4-179228-3	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	3	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 13P YELLOW	5-173977-3	3D PDF	Connector Assembly	Wire-to-Board	13	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 12P NATURAL	1-179228-2	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	12	2 mm	Crimp	Natural	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 6P Buy on te.com	173977-6	3D PDF	Connector Assembly	Wire-to-Board	6	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 10P BLACK	7-179228-0	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	10	2 mm	Crimp	Black	Without	No	4 A	Power & Signal
CRIMP TYPE II RECPT HSG Buy on te.com	179228-6	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	6	2 mm	Crimp	Natural	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 4P BLUE	2-179228-4	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	4	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 8P BLUE	2-179228-8	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	8	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 6P YELLOW	4-179228-6	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	6	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 12P YELLOW	5-179228-2	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	12	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT MT REC ASSY 4P BLACK Buy on te.com	6-173977-4	3D PDF	Connector Assembly	Wire-to-Board	4	2 mm	Insulation Displacement (IDC)	Black	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 11P(YELLOW	5-173977-1	3D PDF	Connector Assembly	Wire-to-Board	11	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 2P BLACK Buy on te.com	6-173977-2	3D PDF	Connector Assembly	Wire-to-Board	2	2 mm	Insulation Displacement (IDC)	Black	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 10P NATURAL	1-179228-0	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	10	2 mm	Crimp	Natural	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 5P Buy on te.com	173977-5	Product Drawing 3D PDF	Connector Assembly	Wire-to-Board	5	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 4P BLUE Buy on te.com	2-173977-4	3D PDF	Connector Assembly	Wire-to-Board	4	2 mm	Insulation Displacement (IDC)	Blue	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 8P BLUE	2-175778-8	Product Drawing 3D PDF	Housing	Wire-to-Board	8	2 mm	Crimp	Blue	With	No	-	Power & Signal
CT CRIMP-2 REC HSG 4P YELLOW	4-179228-4	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	4	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 7P YELLOW	4-179228-7	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	7	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 15P YELLOW	5-179228-5	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	15	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 2P Buy on te.com	173977-2	Product Drawing 3D PDF	Connector Assembly	Wire-to-Board	2	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 8P Buy on te.com	173977-8	3D PDF	Connector Assembly	Wire-to-Board	8	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CRIMP TYPE REC HSG Buy on te.com	179228-9	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	9	2 mm	Crimp	Natural	Without	No	4 A	Power & Signal
2MM CT MT REC ASSY 3P GRAY Buy on te.com	2-179694-3	3D PDF	Connector Assembly	Wire-to-Board	3	2 mm	Insulation Displacement (IDC)	Gray	With	No	3 A	Power & Signal
CT MT REC ASSY 4P GOLD	176392-4	Product Drawing 3D PDF	Connector Assembly	Wire-to-Wire	4	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 5P BLUE	2-179228-5	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	5	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
CT MT REC ASSY 11P BLACK	7-173977-1	3D PDF	Connector Assembly	Wire-to-Board	11	2 mm	Insulation Displacement (IDC)	Black	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 12P BLACK	7-179228-2	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	12	2 mm	Crimp	Black	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 15P BLACK	7-179228-5	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	15	2 mm	Crimp	Black	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 15P BLUE	3-179228-5	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	15	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 6P YELLOW	4-173977-6	3D PDF	Connector Assembly	Wire-to-Board	6	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 3P BLUE Buy on te.com	2-173977-3	3D PDF	Connector Assembly	Wire-to-Board	3	2 mm	Insulation Displacement (IDC)	Blue	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 11P YELLOW	5-175778-1	Product Drawing 3D PDF	Housing	Wire-to-Board	11	2 mm	Crimp	Yellow	With	No	-	Power & Signal
CT CONN MT REC ASSY 10P YELLOW	5-173977-0	3D PDF	Connector Assembly	Wire-to-Board	10	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT MT REC ASSY 3P RED	84941-3	Product Drawing	Connector Assembly	Wire-to-Board	3	2 mm	Insulation Displacement (IDC)	Red	Without	-	2 A	Power & Signal
CT CRIMP-2 REC HSG 11P BLUE	3-179228-1	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	11	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
2MM CT MT REC ASSY 10P GRAY	3-179694-0	3D PDF	Connector Assembly	Wire-to-Board	10	2 mm	Insulation Displacement (IDC)	Gray	With	No	3 A	Power & Signal
CT MT REC ASSY 14P GRAY	3-179694-4	3D PDF	Connector Assembly	Wire-to-Board	14	2 mm	Insulation Displacement (IDC)	Gray	With	No	3 A	Power & Signal
CT CONN MT REC ASSY 3P YELLOW	4-173977-3	3D PDF	Connector Assembly	Wire-to-Board	3	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT MT REC ASSY 2P RED	84941-2	Product Drawing	Connector Assembly	Wire-to-Board	2	2 mm	Insulation Displacement (IDC)	Red	Without	-	2 A	Power & Signal
CT CRIMP REC HSG 12P YELLOW	5-175778-2	Product Drawing 3D PDF	Housing	Wire-to-Board	12	2 mm	Crimp	Yellow	With	No	-	Power & Signal
CT CRIMP-2 REC HSG 9P BLACK	6-179228-9	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	9	2 mm	Crimp	Black	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 12P BLUE	3-179228-2	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	12	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 12P YELLOW	5-173977-2	3D PDF	Connector Assembly	Wire-to-Board	12	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 4P YELLOW	4-173977-4	3D PDF	Connector Assembly	Wire-to-Board	4	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 8P YELLOW	4-179228-8	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	8	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT MT REC ASSY 15P YE	5-173977-5	3D PDF	Connector Assembly	Wire-to-Board	15	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT. CRIMP REC HSG 7P	175778-7	Product Drawing 3D PDF	Housing	Wire-to-Board	7	2 mm	Crimp	Natural	With	No	-	Power & Signal
CT CONN MT REC ASSY 5P BLUE Buy on te.com	2-173977-5	3D PDF	Connector Assembly	Wire-to-Board	5	2 mm	Insulation Displacement (IDC)	Blue	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 3P BLUE	2-175778-3	Product Drawing 3D PDF	Housing	Wire-to-Board	3	2 mm	Crimp	Blue	With	No	-	Power & Signal
CT MT REC ASSY 10P BLUE	3-173977-0	3D PDF	Connector Assembly	Wire-to-Board	10	2 mm	Insulation Displacement (IDC)	Blue	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 11P YELLOW	5-179228-1	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	11	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 6P BLACK Buy on te.com	6-173977-6	3D PDF	Connector Assembly	Wire-to-Board	6	2 mm	Insulation Displacement (IDC)	Black	Without	No	2 A	Power & Signal
CT MT REC ASSY 9P BLACK	6-173977-9	3D PDF	Connector Assembly	Wire-to-Board	9	2 mm	Insulation Displacement (IDC)	Black	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 15P BLACK	7-175778-5	Product Drawing 3D PDF	Housing	Wire-to-Board	15	2 mm	Crimp	Black	With	No	-	Power & Signal
CT CONN MT REC ASSY 12P Buy on te.com	1-173977-2	3D PDF	Connector Assembly	Wire-to-Board	12	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT. CRIMP REC HSG 4P Buy on te.com	175778-4	Product Drawing 3D PDF	Housing	Wire-to-Board	4	2 mm	Crimp	Natural	With	No	-	Power & Signal
CT MT REC ASSY 3P GOLD	176392-3	Product Drawing 3D PDF	Connector Assembly	Wire-to-Wire	3	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CRIMP TYPE REC HSG Buy on te.com	179228-8	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	8	2 mm	Crimp	Natural	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 7P YELLOW	4-173977-7	3D PDF	Connector Assembly	Wire-to-Board	7	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 2P BLACK	6-175778-2	Product Drawing 3D PDF	Housing	Wire-to-Board	2	2 mm	Crimp	Black	With	No	-	Power & Signal
CT MT REC ASSY 4P RED	84941-4	Product Drawing	Connector Assembly	Wire-to-Board	4	2 mm	Insulation Displacement (IDC)	Red	Without	-	2 A	Power & Signal
2MM CT MT REC ASSY 14P N GOLD	1-176392-4	Product Drawing 3D PDF	Connector Assembly	Wire-to-Wire	14	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 13P BLUE	3-173977-3	3D PDF	Connector Assembly	Wire-to-Board	13	2 mm	Insulation Displacement (IDC)	Blue	Without	No	2 A	Power & Signal
CT MT REC ASSY 14P YE	5-173977-4	3D PDF	Connector Assembly	Wire-to-Board	14	2 mm	Insulation Displacement (IDC)	Yellow	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 14P YELLOW	5-179228-4	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	14	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT MT REC ASSY 8P BLACK	6-173977-8	3D PDF	Connector Assembly	Wire-to-Board	8	2 mm	Insulation Displacement (IDC)	Black	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 7P BLACK	6-175778-7	Product Drawing 3D PDF	Housing	Wire-to-Board	7	2 mm	Crimp	Black	With	No	-	Power & Signal
CT CONN MT REC ASSY 12P BLUE	3-173977-2	3D PDF	Connector Assembly	Wire-to-Board	12	2 mm	Insulation Displacement (IDC)	Blue	Without	No	2 A	Power & Signal
2MM CT MT REC ASSY 10P N GOLD	1-176392-0	Product Drawing 3D PDF	Connector Assembly	Wire-to-Wire	10	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
2MM CT MT REC ASSY 12P N GOLD	1-176392-2	Product Drawing 3D PDF	Connector Assembly	Wire-to-Wire	12	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 3P BLUE Buy on te.com	2-179228-3	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	3	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
CT CONN MT REC ASSY 3P BLACK Buy on te.com	6-173977-3	3D PDF	Connector Assembly	Wire-to-Board	3	2 mm	Insulation Displacement (IDC)	Black	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 11P Buy on te.com	1-173977-1	3D PDF	Connector Assembly	Wire-to-Board	11	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CRIMP REC HSG 5P BLACK	6-175778-5	Product Drawing 3D PDF	Housing	Wire-to-Board	5	2 mm	Crimp	Black	With	No	-	Power & Signal
2MM CT MT REC ASSY 9P GRAY Buy on te.com	2-179694-9	3D PDF	Connector Assembly	Wire-to-Board	9	2 mm	Insulation Displacement (IDC)	Gray	With	No	3 A	Power & Signal
CT MT REC ASSY 13P GRAY	3-179694-3	3D PDF	Connector Assembly	Wire-to-Board	13	2 mm	Insulation Displacement (IDC)	Gray	With	No	3 A	Power & Signal
CT CRIMP-2 REC HSG 13P YELLOW	5-179228-3	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	13	2 mm	Crimp	Yellow	Without	No	4 A	Power & Signal
CT CRIMP-2 REC HSG 2P BLACK	6-179228-2	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	2	2 mm	Crimp	Black	Without	No	4 A	Power & Signal
CT MT REC ASSY 5P GOLD	176392-5	Product Drawing 3D PDF	Connector Assembly	Wire-to-Wire	5	2 mm	Insulation Displacement (IDC)	Natural	Without	No	2 A	Power & Signal
CT CONN MT REC ASSY 7P L/BLUE	2-173977-7	3D PDF	Connector Assembly	Wire-to-Board	7	2 mm	Insulation Displacement (IDC)	Blue	Without	No	2 A	Power & Signal
CT CRIMP-2 REC HSG 10P BLUE	3-179228-0	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	10	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal
CT. CRIMP REC HSG 11P	1-175778-1	Product Drawing 3D PDF	Housing	Wire-to-Board	11	2 mm	Crimp	Natural	With	No	-	Power & Signal
CT CRIMP REC HSG 6P NATURAL	175778-6	Product Drawing 3D PDF	Housing	Wire-to-Board	6	2 mm	Crimp	Natural	With	No	-	Power & Signal
CT CRIMP-2 REC HSG 7P BLUE	2-179228-7	Product Drawing 3D PDF	Housing	Wire-to-Board, Wire-to-Wire	7	2 mm	Crimp	Blue	Without	No	4 A	Power & Signal

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

Packaging Method Bag & Box, Bag
Packaging Quantity 1500, 4000, 1000, 5000, 6000, 3000, 2000, 2500

Dimensions

Wire Size (AWG) 30 – 22
Connector Height (mm) 4, 6.6
Connector Height (in) .157, .26
Connector Length (mm) 6, 26, 24, 14, 22, 30, 28, 32, 20, 16, 12, 18, 8, 10
Connector Length (in) 1.26, .236, .315, 1.023, 1.102, 1.181, 1.256, .314, .709, .945, .63, .866, .787, .623, .551, .189, 1.024, .472, .393
Connector Height (in) .157, .26
Connector Width (mm) 5.1, 4.6
Connector Width (in) .2, .181

Electrical Characteristics

Operating Voltage (VDC) 125
Operating Voltage (VAC) 125
Insulation Resistance (MΩ) 1000
Termination Resistance (mΩ) 7, 15, 3, 13, 5, 11, 10, 9, 4, 6, 12, 14, 8, 2
Dielectric Withstanding Voltage (Max) (VAC) 2000, 5000

Contact Features

Contact Type Receptacle, Socket
Contact Layout Inline
Contact Current Rating (Max) (A) 2, 4, 3

Mechanical Attachment

Panel Mount Feature Without
Mating Retention Type Lock
PCB Mount Retention Without
Strain Relief Without
Mating Retention With, Without
Connector Mounting Type Cable Mount (Free-Hanging)

Housing Features

Housing Material 66Nylon, Thermoplastic, 66 Nylon, PBT GF
Centerline (Pitch) (mm) 2
Centerline (Pitch) (in) .078, .079

Industry Standards

Glow Wire Rating Standard Part - Not Glow Wire
UL Flammability Rating UL 94V-0
Compatible With Agency/Standards Products UL, CSA
Compatible With Approved Standards Products UL

Product Type Features

Connector Product Type Housing, Connector Assembly
Connector & Housing Type Receptacle
Connector System Wire-to-Wire, Wire-to-Board
Sealable No
Connector & Contact Terminates To Wire & Cable

Configuration Features

Number of Positions 12, 11, 3, 6, 8, 7, 10, 5, 15, 13, 14, 4, 2, 9
Number of Rows 1

Body Features

Primary Product Color Yellow, Red, Black, Natural, Gray, Blue

Termination Features

Termination Method to Wire & Cable Crimp, Insulation Displacement (IDC)

Usage Conditions

Operating Temperature Range -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

Circuit Application Power & Signal

Other

EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-AM7017-H8172

Related Materials

No documentation available.

AMP COMMON TERMINATION HOUSINGS

Product Features

Connector Product Type : Housing, Connector Assembly

Connector & Housing Type : Receptacle

Connector System : Wire-to-Wire, Wire-to-Board

Number of Positions : 12, 11, 3, 6, 8, 7, 10, 5, 15, 13, 14, 4, 2, 9

Centerline (Pitch) (mm): 2

Centerline (Pitch) (in): .078, .079

Packaging Features

Packaging Method Bag & Box, Bag

Packaging Quantity 1500, 4000, 1000, 5000, 6000, 3000, 2000, 2500

Dimensions

Wire Size (AWG) 30 – 22

Connector Height (mm) 4, 6.6

Connector Height (in) .157, .26

Connector Length (mm) 6, 26, 24, 14, 22, 30, 28, 32, 20, 16, 12, 18, 8, 10

Connector Length (in) 1.26, .236, .315, 1.023, 1.102, 1.181, 1.256, .314, .709, .945, .63, .866, .787, .623, .551, .189, 1.024, .472, .393

Connector Height (in) .157, .26

Connector Width (mm) 5.1, 4.6

Connector Width (in) .2, .181

Electrical Characteristics

Operating Voltage (VDC) 125

Operating Voltage (VAC) 125

Insulation Resistance (MΩ) 1000

Termination Resistance (mΩ) 7, 15, 3, 13, 5, 11, 10, 9, 4, 6, 12, 14, 8, 2

Dielectric Withstanding Voltage (Max) (VAC) 2000, 5000

Contact Features

Contact Type Receptacle, Socket

Contact Layout Inline

Contact Current Rating (Max) (A) 2, 4, 3

Mechanical Attachment

Panel Mount Feature Without

Mating Retention Type Lock

PCB Mount Retention Without

Strain Relief Without

Mating Retention With, Without

Connector Mounting Type Cable Mount (Free-Hanging)

Housing Features

Housing Material 66Nylon, Thermoplastic, 66 Nylon, PBT GF

Centerline (Pitch) (mm) 2

Centerline (Pitch) (in) .078, .079

Industry Standards

Glow Wire Rating Standard Part - Not Glow Wire

UL Flammability Rating UL 94V-0

Compatible With Agency/Standards Products UL, CSA

Compatible With Approved Standards Products UL

Product Type Features

Connector Product Type Housing, Connector Assembly

Connector & Housing Type Receptacle

Connector System Wire-to-Wire, Wire-to-Board

Sealable No

Connector & Contact Terminates To Wire & Cable

Configuration Features

Number of Positions 12, 11, 3, 6, 8, 7, 10, 5, 15, 13, 14, 4, 2, 9

Number of Rows 1

Body Features

Primary Product Color Yellow, Red, Black, Natural, Gray, Blue

Termination Features

Termination Method to Wire & Cable Crimp, Insulation Displacement (IDC)

Usage Conditions

Operating Temperature Range -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

Circuit Application Power & Signal

Other

EU RoHS Compliance Compliant

EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-AM7017-H8172
