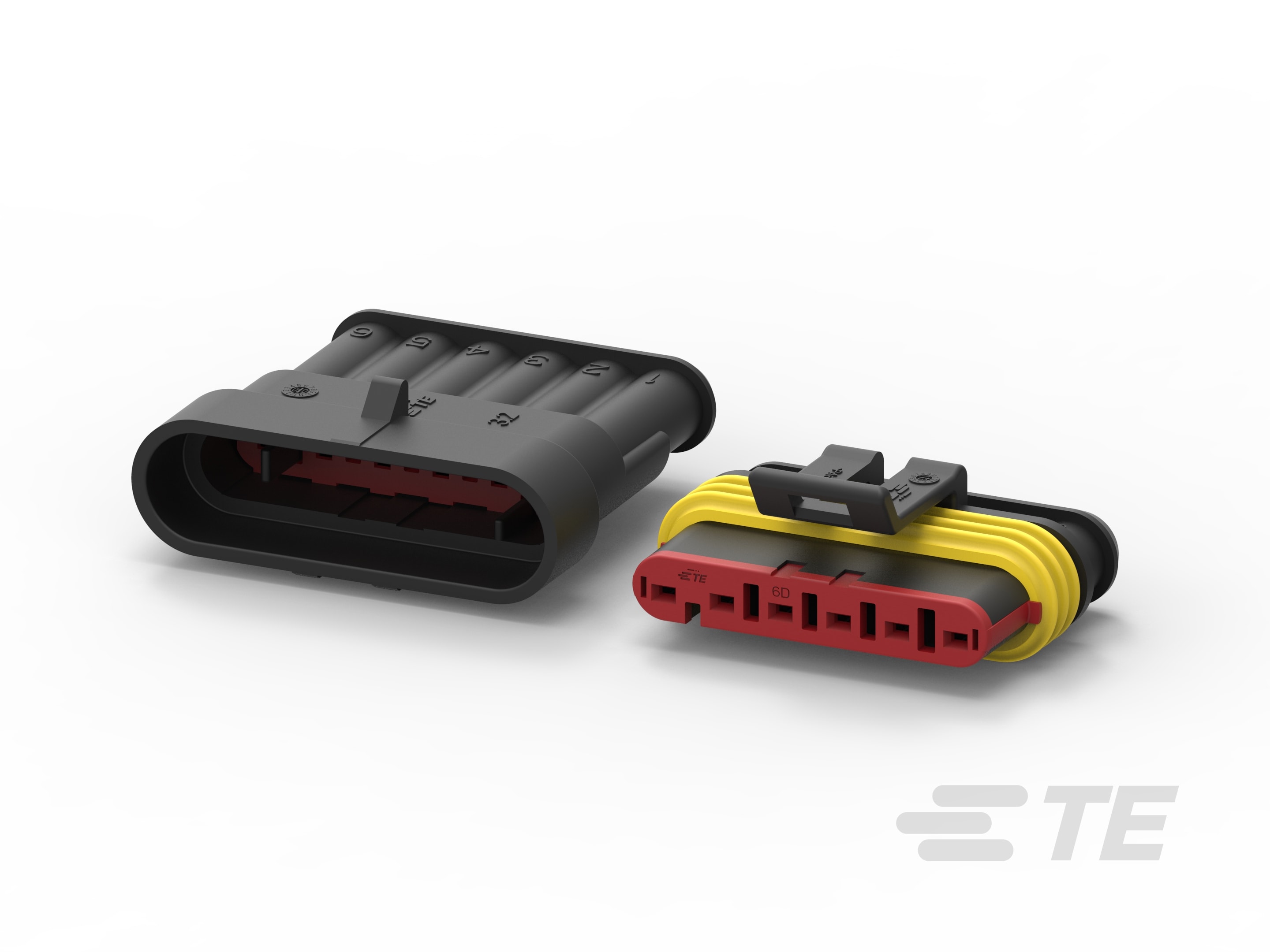

AMP SUPERSEAL 1.5MM, CONNECTOR HOUSING

AMP SUPERSEAL 1.5MM, CONNECTOR HOUSING-CAT-AM71-CH8172

Digital Datasheet|

Product Features

Packaging Method : Box & Carton, Box, Bag, Bag & Box
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
Primary Product Color : Gray, Black, Natural, Green, Orange
IP Rating : IP67
Strain Relief : Without

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Sealable	Mating Tab Width	Primary Product Color	Connector & Contact Terminates To	Contact Current Rating (Max)	Operating Temperature (Max)	Nominal Voltage Architecture	Primary Locking Feature	Connector & Keying Code
AMP SUPERSEAL 1.5 SERIES 1P PL Buy on te.com	282079-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	1	Housing for Female Terminals	-	Yes	1.2 mm	Black	Wire & Cable	14 A	90 °C, 75 °C, 80 °C, 85 °C, 105 °C, 100 °C, 110 °C, 120 °C, 125 °C, 70 °C	24 V, 12 V	Integrated in Housing	Neutral
AMP SUPERSEAL 1.5 SERIES 1P CA Buy on te.com	282103-1	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Device, Wire-to-Board	1	Housing for Male Terminals	-	Yes	-	Black	Wire & Cable	14 A	70 °C, 100 °C, 125 °C, 110 °C, 120 °C, 105 °C, 85 °C, 75 °C, 80 °C, 90 °C	24 V, 12 V	Integrated in Housing	Neutral
4P PLUG CONNECTOR	282088-3	3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	4	Housing for Female Terminals	6 mm	Yes	1.5 mm	Black	Wire & Cable	14 A	70 °C, 120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 75 °C, 80 °C, 85 °C, 90 °C	12 V, 24 V	Integrated in Housing	Neutral
AMP SUPERSEAL 1.5 SERIES 2P CA Buy on te.com	282104-1	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Device, Wire-to-Board	2	Housing for Male Terminals	6 mm	Yes	-	Black	Wire & Cable	14 A	70 °C, 100 °C, 125 °C, 110 °C, 120 °C, 105 °C, 85 °C, 75 °C, 80 °C, 90 °C	12 V, 24 V	Integrated in Housing	Neutral
SUPERSEAL 2 POS. TAB HOUSING (CLOSED CAV	1745022-1	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	6 mm	No	1.5 mm	Orange	Wire & Cable	14 A	125 °C	12 V, 24 V	On the Terminal	Neutral
AMP SUPERSEAL 1.5 SERIES 5P PL Buy on te.com	282089-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	5	Housing for Female Terminals	6 mm	Yes	1.5 mm	Black	Wire & Cable	14 A	70 °C, 120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 75 °C, 80 °C, 85 °C, 90 °C	12 V, 24 V	Integrated in Housing	Neutral
AMP SUPERSEAL 1.5 SERIES 3P CA Buy on te.com	282105-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	6 mm	Yes	-	Black	Wire & Cable	14 A	90 °C, 80 °C, 75 °C, 105 °C, 110 °C, 125 °C, 100 °C, 70 °C, 120 °C, 85 °C	12 V, 24 V	On the Terminal	Neutral
AMP SUPERSEAL 1.5 SERIES 3P PL	284073-1	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	6 mm	Yes	1.5 mm	Black	-	-	70 °C, 120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 75 °C, 80 °C, 85 °C, 90 °C	12 V, 24 V	Integrated in Housing	-
AMP SUPERSEAL 1.5 SERIES 3P PL Buy on te.com	282087-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	3	Housing for Female Terminals	6 mm	Yes	1.5 mm	Black	Wire & Cable	14 A	70 °C, 120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 75 °C, 80 °C, 85 °C, 90 °C	12 V, 24 V	Integrated in Housing	Neutral
3 POS. TAB ASSY AMP SUPERSEAL 1.5 SRS.	1745082-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	3	Housing for Male Terminals	6 mm	No	1.5 mm	Natural	Wire & Cable	14 A	125 °C	12 V, 24 V	On the Terminal	Neutral
3 POS. PLUG ASSY AMP SUPERSEAL 1.5 SRS	1745083-1	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Board	3	Housing for Female Terminals	6 mm	Yes	1.5 mm	Natural	Wire & Cable	14 A	125 °C	12 V, 24 V	On the Terminal	Neutral
AMP SUPERSEAL 1.5 SERIES 4P PL	282088-1	3D PDF	Wire-to-Wire	4	Housing for Female Terminals	6 mm	Yes	1.5 mm	Black	Wire & Cable	14 A	70 °C, 120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 75 °C, 80 °C, 85 °C, 90 °C	12 V, 24 V	Integrated in Housing	-
AMP SUPERSEAL 1.5 SERIES 4P CA Buy on te.com	282106-1	3D PDF	Wire-to-Wire	4	Housing for Male Terminals	6 mm	Yes	-	Black	Wire & Cable	14 A	105 °C, 85 °C, 75 °C, 80 °C, 100 °C, 110 °C, 90 °C, 120 °C, 70 °C, 125 °C	24 V, 12 V	Integrated in Housing	Neutral
AMP SUPERSEAL 1.5 SERIES 2P PL Buy on te.com	282080-2	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board, Wire-to-Wire	2	Housing for Female Terminals	6 mm	Yes	1.5 mm	Gray	Wire & Cable	14 A	125 °C, 110 °C, 120 °C, 70 °C, 100 °C, 75 °C, 80 °C, 105 °C, 85 °C, 90 °C	24 V, 12 V	Integrated in Housing	Neutral
AMP SUPERSEAL 1.5 SERIES 2P PL Buy on te.com	282080-3	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Device, Wire-to-Board	2	Housing for Female Terminals	6 mm	Yes	1.5 mm	Green	Wire & Cable	14 A	80 °C, 100 °C, 70 °C, 120 °C, 110 °C, 125 °C, 105 °C, 85 °C, 75 °C, 90 °C	24 V, 12 V	Integrated in Housing	Neutral
AMP SUPERSEAL 1.5 SERIES 6P PL	282090-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	6	Housing for Female Terminals	6 mm	Yes	1.5 mm	Black	Wire & Cable	14 A	70 °C, 120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 75 °C, 80 °C, 85 °C, 90 °C	12 V, 24 V	On the Terminal	Neutral
AMP SUPERSEAL 1.5 SERIES 5P CA Buy on te.com	282107-1	Product Drawing 3D PDF	Wire-to-Wire	5	Housing for Male Terminals	6 mm	Yes	-	Black	Wire & Cable	14 A	110 °C, 100 °C, 85 °C, 105 °C, 120 °C, 125 °C, 70 °C, 80 °C, 75 °C, 90 °C	12 V, 24 V	Integrated in Housing	Neutral
AMP SUPERSEAL 1.5 SERIES 2P PL Buy on te.com	282080-1	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Board, Wire-to-Device	2	Housing for Female Terminals	6 mm	Yes	1.5 mm	Black	Wire & Cable	14 A	75 °C, 80 °C, 90 °C, 110 °C, 70 °C, 100 °C, 85 °C, 125 °C, 120 °C, 105 °C	24 V, 12 V	On the Terminal	Neutral
AMP SUPERSEAL 1.5 SERIES 6P CA Buy on te.com	282108-1	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	6 mm	Yes	-	Black	Wire & Cable	14 A	100 °C, 110 °C, 120 °C, 85 °C, 105 °C, 125 °C, 70 °C, 90 °C, 75 °C, 80 °C	12 V, 24 V	Integrated in Housing	Neutral

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector System Wire-to-Board, Wire-to-Wire, Wire-to-Device
Sealable No, Yes
Connector & Contact Terminates To Wire & Cable
Connector Shape Rectangular, Circular
Primary Locking Feature On the Terminal, Integrated in Housing
Mixed & Hybrid Connector No
Connector & Housing Type Housing for Male Terminals, Housing for Female Terminals

Configuration Features

Number of Positions 1, 2, 3, 4, 5, 6
Number of Rows 1

Electrical Characteristics

Operating Voltage (VAC) 250
Operating Voltage (VDC) 24
Nominal Voltage Architecture (V) 12, 24

Body Features

Primary Product Color Gray, Black, Natural, Green, Orange
Cable Exit Angle 180°
Connector & Keying Code Neutral

Contact Features

Contact Current Rating (Max) (A) 14
Contact Size 1.5mm, 1.2mm
Contact Type Tab, Receptacle
Mating Tab Width (mm) 1.2, 1.5
Mating Tab Width (in) .047, .059

Mechanical Attachment

Strain Relief Without
Terminal Position Assurance Yes, No
Mating Alignment With
Mating Alignment Type Polarized, Polarizing Rib, Polarizing Slot
Connector Mounting Type Cable Mount (Free-Hanging)

Housing Features

Housing Material PA, PA GF
Centerline (Pitch) 6 mm [ .236 in ]

Dimensions

Connector Height (mm) 29.9, 32.2, 42
Connector Height (in) 1.177, 1.268, 1.654
Product Width (mm) 9.3, 13.8, 21.3, 25.8, 36.8
Product Width (in) .366, .543, .839, 1.016, 1.449
Product Length (mm) 9.3, 13.6, 17.1, 19.8, 23.1, 25.8, 29.1, 31.8, 32.2, 36.8, 37.8, 40.9, 43.8
Product Length (in) .366, .535, .673, .78, .909, 1.016, 1.146, 1.252, 1.268, 1.449, 1.488, 1.61, 1.724

Usage Conditions

Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257

Operation/Application

Circuit Application Signal

Industry Standards

IP Rating IP67
UL Flammability Rating UL 94V-2

Packaging Features

Packaging Method Box & Carton, Box, Bag, Bag & Box
Packaging Quantity 350, 400, 500, 550, 650, 700, 800, 900, 1200, 1500, 1600, 2200

Other

Connector Position Assurance Capable No
Serviceable Yes, No

Reference Number

TE Internal Number CAT-AM71-CH8172
