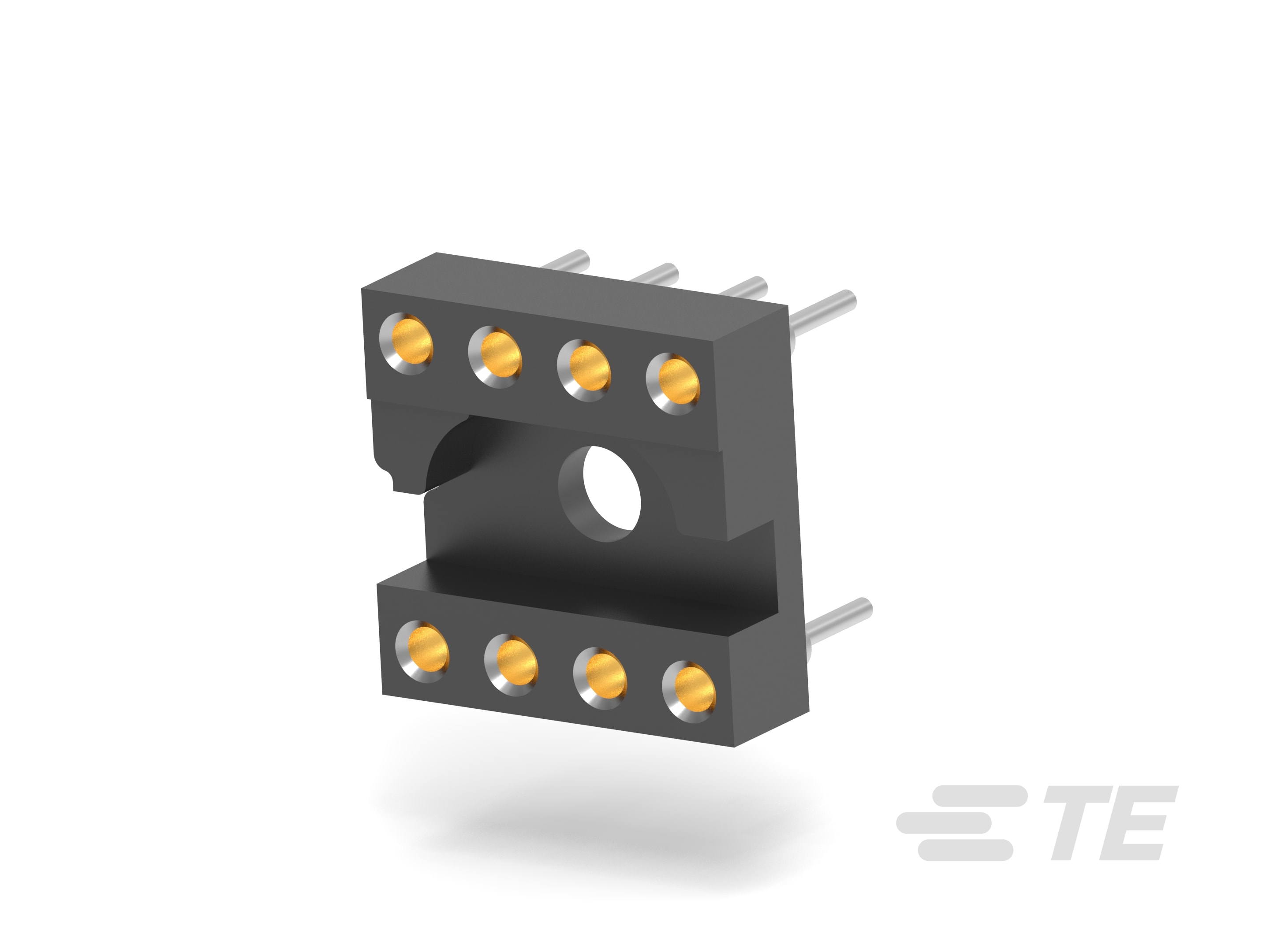

DIP Socket: Standard, Stamped & Formed, Closed, Gold Flash

Please review product documents or contact us for the latest agency approval information.

• Contact Fabrication  Stamped & Formed

• Contact Mating Area Plating Material  Gold Flash

• Contact Current Rating (Max) (A) 3

• Contact Type  Pin

• Mating Contact Type  Four-Fingered

• Contact Base Material  Beryllium Copper

• PCB Contact Termination Area Plating Material  Tin-Lead, Gold, Tin

• IC Socket Type  DIP

• Contact Mating Area Plating Material Thickness (µin) 25, 5

• Number of Positions  16, 14, 20, 18, 32, 40, 6, 8, 28

• Number of Rows  2

• PCB Mount Orientation  Vertical

• Connector Profile  Standard

• Sleeve Material  Machined Brass/Formed Copper, Nickel, Brass/Copper

• Sleeve Plating Material  Tin/Lead, Tin

• Frame Style  Closed

• Row-to-Row Spacing (mm) 7.62, 15.24

• Row-to-Row Spacing (in) .6, .3

• Profile Height from PCB (mm) 3.43, 4.57

• Profile Height from PCB (in) .18, .135

• Product Length (mm) 10.16, 25.4, 7.62, 50.8, 40.64, 22.86, 35.56, 17.78, 20.32

• Product Length (in) 1.6, .9, 1.4, .4, .3, .7, .8, 2, 1

• EU RoHS Compliance  Compliant, Not Compliant

• EU ELV Compliance  Compliant, Not Compliant, Compliant with Exemptions

• Quantity per Tube  17, 24, 15, 60, 12

• Connector & Contact Terminates To  Printed Circuit Board

• Contact Resistance (mΩ) 10

• Insulation Resistance (MΩ) 5000

• Termination Method to PCB  Through Hole - Solder

• Termination Post & Tail Length  3.18 mm [ .125 in ]

• Connector Mounting Type  Board Mount

• Mating Alignment Type  Polarization

• Mating Alignment  With

• Housing Material  Polyester, Thermoplastic Polyester, Thermoplastic

• Centerline (Pitch)  2.54 mm [ .1 in ]

• Housing Color  Black

• Circuit Application  Signal

• UL Flammability Rating  UL 94V-0

• Packaging Method  Box & Tube, Tube

• Tubes per Box  100, 160, 40

• Packaging Quantity  80, 60, 30, 34, 26, 12, 24
