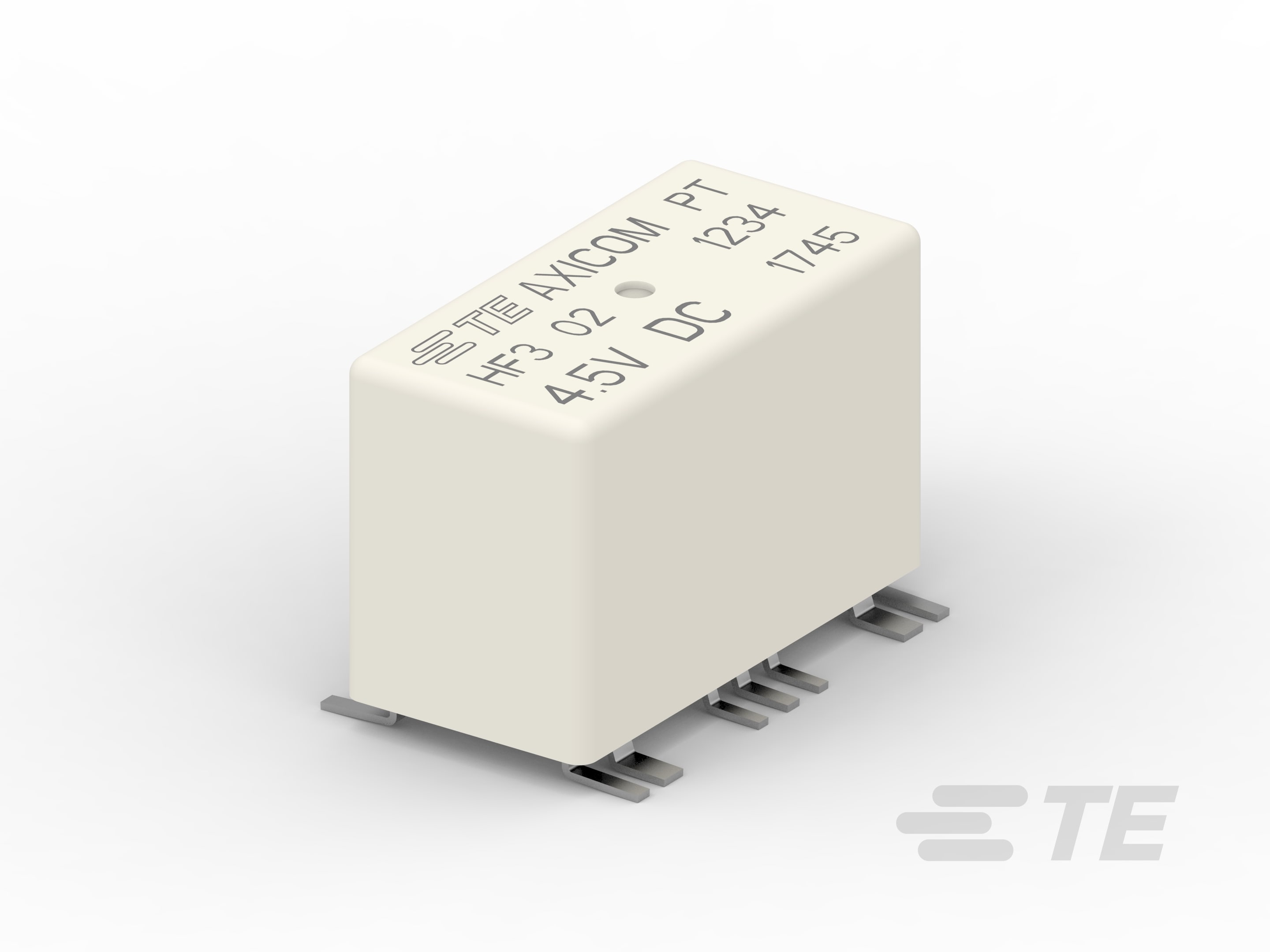

Overview
Features

Please review product documents or contact us for the latest agency approval information.

Other

  • Coil Power Rating Class (W) .05 – .3

  • Environmental Ambient Temperature Class (°C) 70 – 85

  • Contact Current Class (A) 0 – 2

  • Height Class (Mechanical) (mm) 9 – 10

  • Length Class (Mechanical) (mm) 14 – 16

  • Width Class (Mechanical) (mm) 6 – 8

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Packaging Features

  • Packaging Method  Box & Carton, Reel

Configuration Features

  • Relay Options  RF Rated

  • Contact Special Features  Gull Wing

  • Contact Number of Poles  1

  • Contact Arrangement  1 Form C SPDT-CO

Contact Features

  • Contact Material  Nickel

  • Contact Plating Material  Gold

Usage Conditions

  • Environmental Category of Protection  RTIII

  • Environmental Ambient Temperature (Max)  85 °C [ 85 °F ]

Operation/Application

  • Performance Type  Standard

  • Current Type  DC

  • Coil Magnetic System  Bistable, 1 Coil, Monostable, Bistable, 2 Coils

Electrical Characteristics

  • Contact Limiting Continuous Current (A) 2

  • Contact Limiting Short-Time Current (A) 2

  • Voltage Standing Wave Ration (HF Parameter)  1.45 @ 900MHz, 1.07 @ 100MHz

  • Contact Switching Voltage (Max) (VAC) 250

  • Contact Switching Voltage (Max) (VDC) 220

  • Contact Limiting Breaking Current (A) 2

  • Coil Resistance (Ω) 2057, 257, 357, 574, 64, 128, 4114, 178, 289, 145, 1028

  • Insulation Initial Resistance (MΩ) 1000000

  • Contact Limiting Making Current (A) 2

  • Insulation Initial Dielectric Between Open Contacts (Vrms) 600

  • Contact Current Rating (A) 2

  • Coil Voltage Rating (VAC) 12, 3, 6, 9, 5, 24

  • Contact Voltage Rating (VAC) 250

  • Contact Voltage Rating (VDC) 220

  • Coil Power Rating DC (W) .14, .07

  • Insulation Initial Dielectric Between Contacts & Coil (Vrms) 1000

Dimensions

  • Product Height  9.1 mm [ .358 in ]

  • Product Length  14.6 mm [ .574 in ]

  • Product Width  7.2 mm [ .283 in ]

Body Features

  • Product Weight (oz) 2.5, 3

  • Enclosure Type  Flux Resistant Automatic Soldering & Washable

Signal Characteristics

  • Isolation (HF Parameter)  -80dB @ 100MHz, -45dB @ 3GHz, -72dB @ 900MHz, -40dB @ 3GHz

  • Insertion Loss (HF Parameter)  -.35dB @ 3GHz, -.03dB @ 100MHz, -.12dB @ 900MHz, -.4dB @ 3GHz

Product Type Features

  • Relay & Contactor Type  RF Relay

Termination Features

  • Main Termination & Connection Type  PCB SMT

  • Coil Termination & Connection Type  PCB SMT

Mechanical Attachment

  • Product Mount Type  Printed Circuit Board

Reference Number

  • TE Internal Number CAT-AX41-H519
