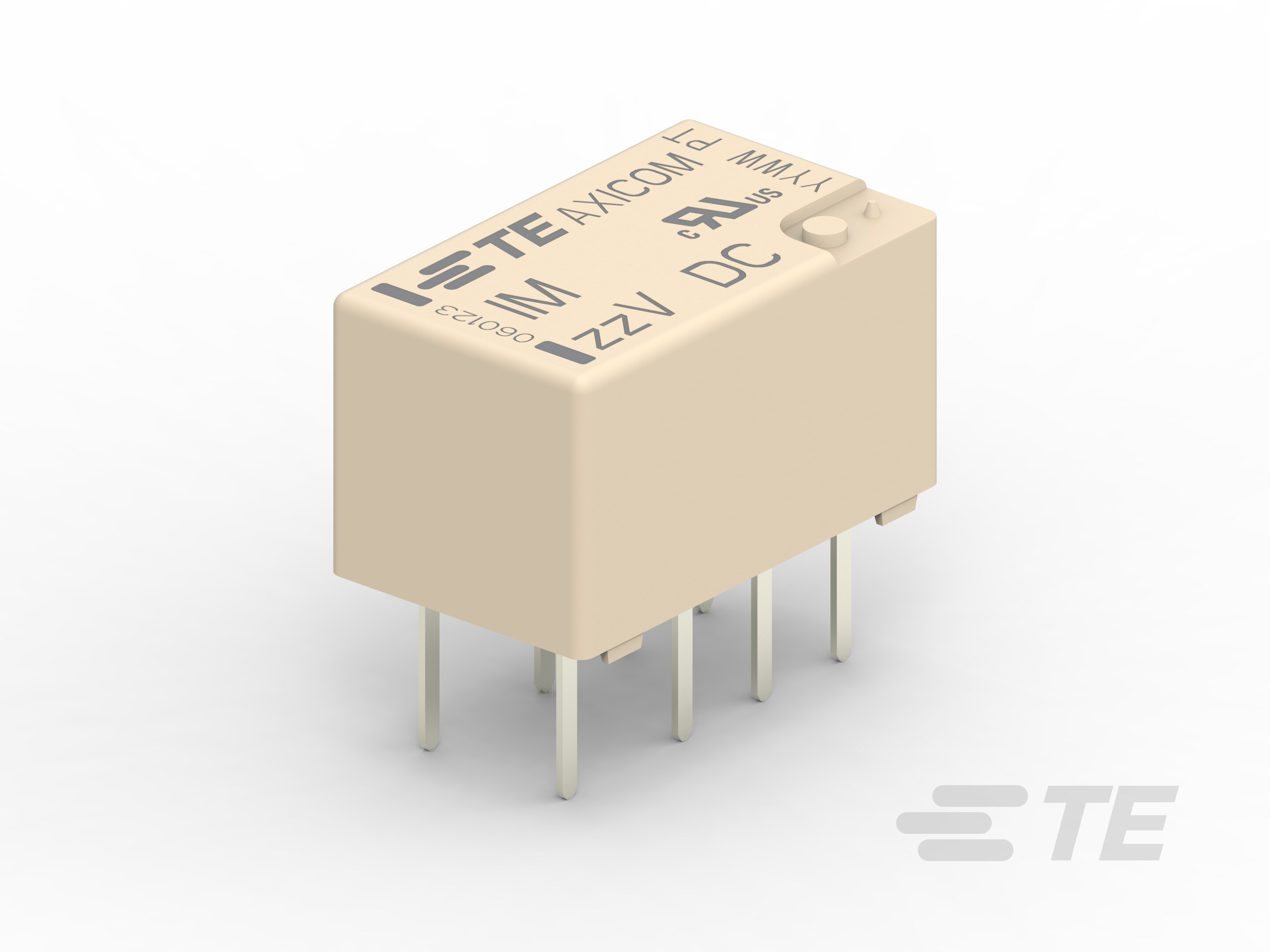

Narrow Signal Relay 2 Form C

Please review product documents or contact us for the latest agency approval information.

• Coil Power Rating Class (W) .05 – .3

• Environmental Ambient Temperature Class (°C) 70 – 85

• Contact Current Class (A) 0 – 2

• Height Class (Mechanical) (mm) 0 – 6

• Length Class (Mechanical) (mm) 0 – 10

• Width Class (Mechanical) (mm) 0 – 6

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant

• Contact Switching Load (Min)  .1mA @ .0001V

• Contact Limiting Continuous Current (A) 2

• Contact Limiting Short-Time Current (A) 2

• Voltage Standing Wave Ration (HF Parameter)  1.06 @ 100MHz, 1.49 @ 900Mhz

• Contact Switching Voltage (Max) (VAC) 250

• Contact Switching Voltage (Max) (VDC) 220

• Contact Limiting Breaking Current (A) 2

• Insulation Initial Dielectric Between Adjacent Contacts (Vrms) 1000, 750

• Coil Resistance (Ω) 257, 2880, 203, 360, 1029, 64, 250, 178, 810, 145, 1440, 579, 90

• Insulation Initial Resistance (MΩ) 1000000

• Contact Limiting Making Current (A) 2

• Insulation Initial Dielectric Between Open Contacts (Vrms) 750

• Contact Current Rating (A) 2

• Coil Voltage Rating (VDC) 4.5, 6, 3, 12, 5, 9, 24

• Contact Voltage Rating (VAC) 250

• Contact Voltage Rating (VDC) 220

• Coil Power Rating DC (W) .14, .1, .2

• Insulation Initial Dielectric Between Contacts & Coil (Vrms) 1800, 1500

• Packaging Method  Tube

• Relay Options  RF Rated

• Contact Special Features  Bifurcated/Twin Contacts, Narrow

• Contact Number of Poles  2

• Contact Arrangement  2 Form C DPDT-CO

• Contact Material  PdRu+Au

• Contact Plating Material  Gold

• Environmental Category of Protection  RTV

• Operating Temperature Range (°C) -40 – 85

• Environmental Ambient Temperature (Max)  85 °C [ 185 °F ]

• Solder Process  Wave Solder

• Performance Type  High Contact Stability, Standard

• Current Type  DC

• Coil Magnetic System  Bistable, 1 Coil, Monostable, Polarized

• Product Height  5.8 mm [ .228 in ]

• Product Length  10 mm [ .393 in ]

• Product Width  5.7 mm [ .224 in ]

• Product Weight  .75 g [ .026 oz ]

• Enclosure Type  Hermetically Sealed

• Isolation (HF Parameter)  -18.8dB @ 900MHz, -37dB @ 100MHz

• Insertion Loss (HF Parameter)  -.33dB @ 900MHz, -.03dB @ 100MHz

• Relay & Contactor Type  RF Relay

• Main Termination & Connection Type  Solder Pins

• Coil Termination & Connection Type  Solder Pins

• Product Mount Type  Printed Circuit Board
