DIGITAL SMALL OUTLINE PRESSURE SENSOR

DIGITAL SMALL OUTLINE PRESSURE SENSOR-CAT-BLPS0003
  • MEAS
|
  • MEAS MS5525DSO
The MS5525DSO board mount pressure sensor with SPI and I2C bus interface is designed for high volume OEM users.
More Less

Product Features

  • Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

  • Product Height (mm): 9.7, 6.3

  • Product Height (in): .381, .248

  • Supply Voltage Range (V): 1.8 – 3.6

  • Proof Pressure Range : 60 psi

  • Pressure Type : Gauge, Differential, Absolute

Available from

LADD Inc
Overview

The sensor module includes a pressure sensor and an ultra low power 24- bit ∆Σ ADC with internal factory calibrated coefficients. It provides a 24-bit digital pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. The MS5525DSO can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device.

This new sensor module generation is based on leading MEMS technology and latest benefits from MEAS proven experience and know-how in high volume manufacturing of pressure modules, which have been widely used for over a decade. The rugged engineered thermoplastic transducer is available in single and dual port configurations, and can measure absolute, gauge, compound, and differential pressure from 1 to 30psi.



BENEFITS

  • Integrated Digital Pressure Sensor           (24-bit ∆Σ ADC)
  • Fast Conversion Down to 1 ms
  • Low Power, 1 µA (standby < 0.15 µA)
  • Supply  Voltage: 1.8 to 3.6V
  • Pressure Range: 1 to 30 PSI
  • I2C and SPI Interface
  • Small Outline IC Package
  • Barbed Pressure Ports
  • Low Power, High Resolution ADC
  • Digital Pressure and Temperature Outputs

DEVELOPMENT BOARD

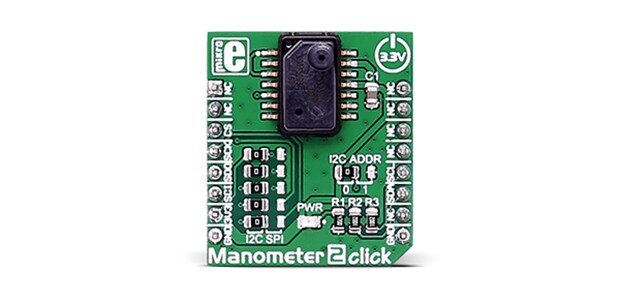

  • Manometer 2 Click Board™ from Mikroe™

    Manometer 2 Click (MIKROE-2550) from Mikroe features the MS5525SDSO pressure sensor and allows customers to evaluate the sensor and create reference designs easily. Click boards are plug-and-play modules designed to add extra functionality to existing development kits. These small, function-specific add-on modules all have a common interface to the mikroBUS™ adapter board. Reference design examples are provided to get the user started quickly.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Pressure Type  Gauge, Differential, Absolute

  • Sensor Package  SOIC-14

  • Pressure Sensor Type  Digital Pressure and Altimeter Sensor Modules

  • Leg Style  Gull Wing

Electrical Characteristics

  • Supply Voltage Range (V) 1.8 – 3.6

Dimensions

  • Product Height (mm) 6.3, 9.7

  • Product Height (in) .248, .381

  • Product Width  7.9 mm [ .311 in ]

  • Product Length  12.5 mm [ .492 in ]

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Proof Pressure Range  60 psi

  • Output Interface  I²C and SPI (Mode 0, 3)

  • Output Signal Type  24 bit ADC

  • Pressure (psi) 1, 2, 5, 15, 30

  • Pressure Accuracy  ±0.25% Span, ±0.5 %FSS

Packaging Features

  • Sensor Port Configuration  Single Barb, Single Tube, Dual Barb

Reference Number

  • TE Internal Number CAT-BLPS0003
