MV Output Pressure Sensor with Plastic Port

MV Output Pressure Sensor with Plastic Port-CAT-BLPS0021
  • MEAS

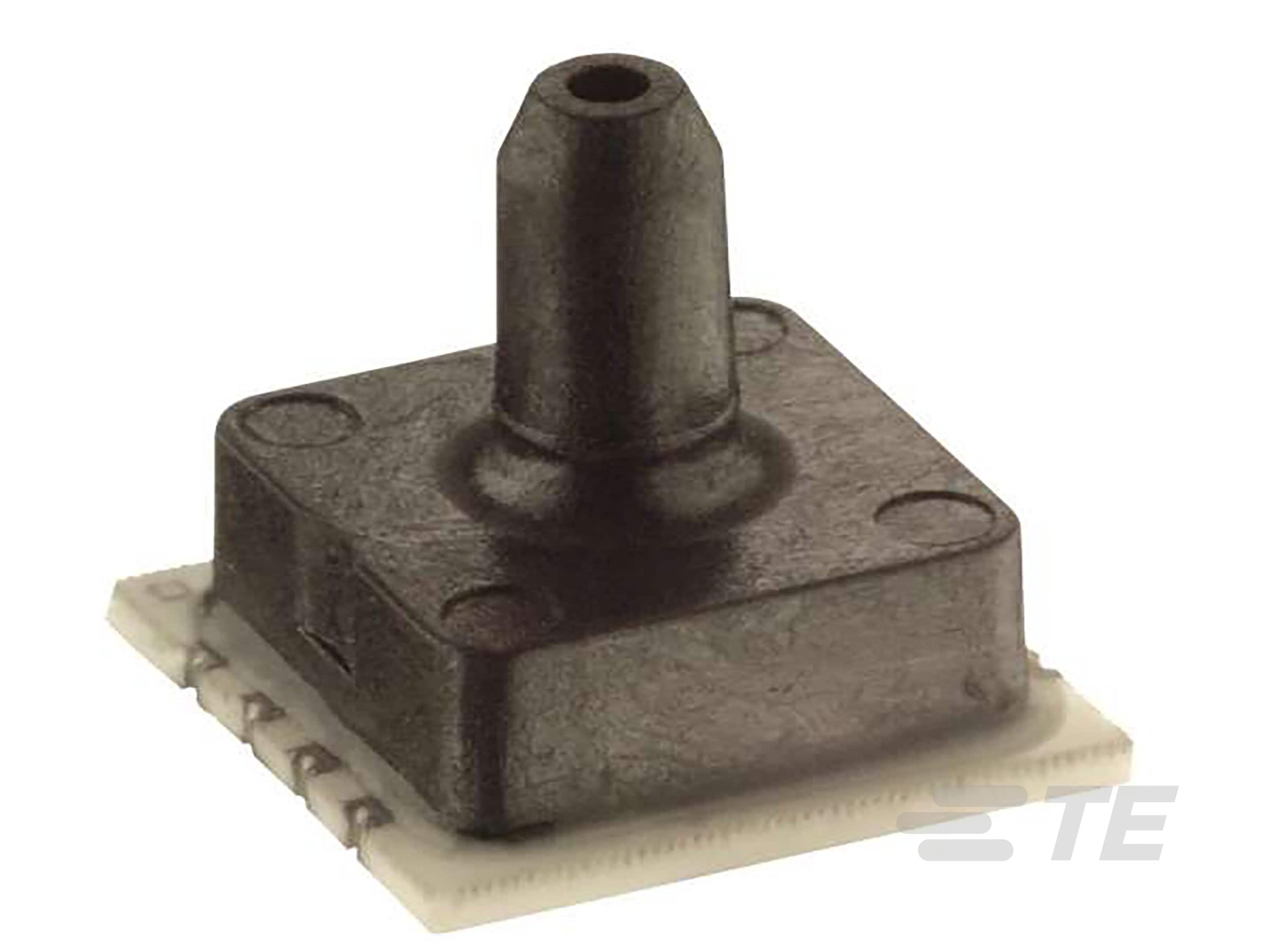

The MS1451 is a piezoresistive silicon pressure sensor packaged in a surface mount configuration.
More Less

Product Features

  • Pressure Sensor Type : mV Output Pressure Sensors

  • Pressure Type : Absolute, Gauge

  • Pressure (psi): 30, 100, 15, 5

  • Output Signal Type : 60mV

  • Pressure Accuracy : ±0.25% Non-linearity

Available from

LADD Inc
Overview

It is intended for high volume applications where small size, light weight, low cost, and compatibility with automated assembly equipment are required. The pressure sensor is available with a gage or absolute pressure sensing  chip  that  is attached to a surface mountable ceramic  substrate.  A plastic cap is attached  to the  ceramic substrate, protecting the chip and providing the pressure port. The  devices are shipped  in  plastic  anti-static  shipping tubes for use with automated production equipment. The drawing shows a standard tube version. Ports are also available with a narrow hole or a large hole to interface with the pressure media.

BENEFITS

  • PC Board Mountable Pressure Sensor
  • 0-60 mV Output
  • Gage and Absolute
  • Low Cost
  • Surface Mount Package
  • ±0.25% Pressure Non Linearity
  • 3 Pressure Port Options
  • Solid State Reliability
  • Low Power
Features

Please review product documents or contact us for the latest agency approval information.

Dimensions

  • Product Width  7.6 mm [ .299 in ]

  • Product Height (mm) 9.02, 3.43

  • Product Height (in) .355, .135

  • Product Length  7.6 mm [ .3 in ]

Product Type Features

  • Sensor Package  Surface Mountable

  • Pressure Sensor Type  mV Output Pressure Sensors

  • Pressure Type  Absolute, Gauge

Electrical Characteristics

  • Supply Voltage Range (V) 3

Usage Conditions

  • Pressure (psi) 30, 100, 15, 5

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Output Signal Type  60mV

  • Pressure Accuracy  ±0.25% Non-linearity

Other

  • Sensor Options  No Option, Tube, Narrow Hole

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-BLPS0021
