Compact Water Resistant Pressure Sensor
- MEAS
- MEAS MS5837
Product Features
-
Pressure Sensor Type : Digital Pressure and Altimeter Sensor Modules
-
Pressure Type : Absolute
-
Proof Pressure Range : 10 bar
-
Pressure (bar): 2
-
Output Signal Type : 24 bit ADC
Gel-filled, ultra-compact, water resistant digital pressure and temperature sensor.
Optimized for consumer devices such as fitness trackers, drones and wearables the MS5837-02BA’s robust sensor package enables it to withstand harsh environments often encountered in these applications. This MEMS based sensor includes a high-linearity pressure sensor with an ultra-low power 24 bit digital output (I2C) and an altitude resolution at sea level of 13 cm. This enables high resolution measurements such as counting flights of stairs. This ultra-compact micro altimeter allows for design flexibility and is one of the smallest gel filled water resistant sensors in the market. The robust sensor package consists of ceramic and metal materials. The board level design delivers sensing accuracy for both pressure (±0.5mbar) and temperature (±2ºC) measurements. Expanding on TE Connectivity's (TE) MS5837 series of ultra-compact digital altimeters, this 2 bar models offer options for improved endurance in media environments and integrated shielding for reduced signal noise and interference. Our MS5837-02BA provides exceptional performance, reliability and accurate performance from a brand you can trust.
APPLICATIONS
- Fitness Trackers
- Drones
- Wearables
- Bike Computers
- Mobile Altimeter/Barometer Systems
- E-cigarettes
BENEFITS
- Ceramic and metal package: 3.3 x 3.3 x 2.75mm
- High resolution module: 13 cm
- Supply voltage: 1.5 to 3.6 V
- Low power: 0.6 µA (standby ≤ 0.1 µA at 25°C)
- Integrated digital pressure sensor (24 bit ΔΣ ADC)
- I2C interface
- Operating range: 300 to 1,200 mbar, -20 to +85 °C
- No external components (internal oscillator)
- Water resistant sealing with 1.8 x 0.8mm O-ring
- High endurance option
- Shielded option
INFOGRAPHIC
-
MS5837-02BA Pressure Sensor Infographic (English)
Learn more about the applications and the design of the MS5837-02BA compact pressure and temperature sensor.
SELECTION GUIDE
-
Board Mount Pressure Sensors Selection Guide (English)
See the Selection Guide for an overview of our Board Mount Pressure Sensor portfolio.
DEVELOPMENT BOARD
-
Pressure 7 Click Board™ from Mikroe™

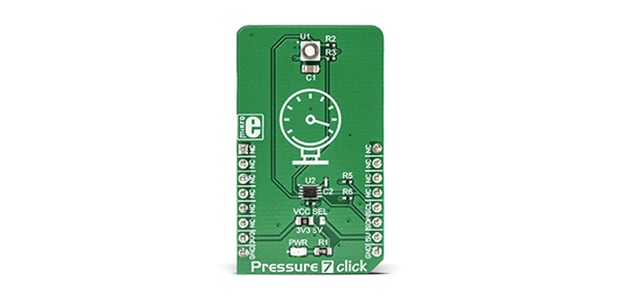

Pressure 7 Click (MIKROE-4306) from Mikroe features the MS5837-02BA pressure sensor and allows customers to evaluate the sensor and create reference designs easily. Click boards are plug-and-play modules designed to add extra functionality to existing development kits. These small, function-specific add-on modules all have a common interface to the mikroBUS™ adapter board. Reference design examples are provided to get the user started quickly.
Learn how TE Connectivity (TE) can help with selecting the right board mount pressure sensor for your next design.
Please review product documents or contact us for the latest agency approval information.
Operation/Application
-
Resolution .016
-
Output Interface I2C
-
Proof Pressure Range 10 bar
-
Output Signal Type 24 bit ADC
-
Pressure Accuracy ±0.5mbar
Dimensions
-
Product Width 3.3 mm [ .13 in ]
-
Product Height 2.75 mm [ .108 in ]
-
Product Length 3.3 mm [ .129 in ]
Product Type Features
-
Sensor Package Surface Mountable
-
Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules
-
Pressure Type Absolute
Electrical Characteristics
-
Supply Voltage Range (V) 1.5 – 3.6
Usage Conditions
-
Pressure (bar) 2
-
Operating Temperature Range -20 – 85 °C [ -4 – 185 °F ]
Other
-
Sensor Options Shielded
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Reference Number
-
TE Internal Number CAT-BLPS0059
CAD Files
- 3D PDF 3D
- Customer View Model English
- Customer View Model English
- Customer View Model English
Datasheets & Catalog Pages
- MS5837-02BA English
Product Specifications
