View products below to see detailed pricing

Low Pressure Digital / Analog Sensor

MEAS

SMI 6000
SMI 5000
SMI 7000

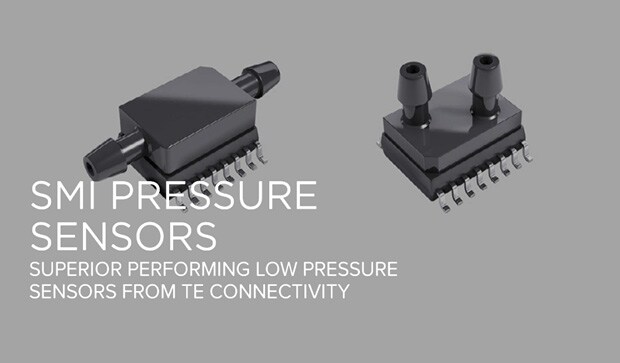

The SMI 5000, SMI 6000, and SMI 7000 are low pressure MEMS sensors with either digital or digital/analog output and ±1% FS accuracy (digital).

More Less

Datasheet |
Digital Datasheet|

Product Features

Pressure Sensor Type : Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules
Pressure Type : Differential, Gauge
Pressure (inH2O): 4.01, 5, 21.88, 69.26, 2, 8.03
Pressure (mmHG): 3.75, 40.85, 129.28, 15, 7.5
Proof Pressure Range : 4.5 psi, 12 psi, 1.5 psi, 15 psi

Available from

Product	TE Part #	Documents	Pressure	Pressure Sensor Type	Pressure Type	Pressure	Proof Pressure Range	Pressure	Output Signal Type	Pressure Accuracy	Supply Voltage Range	Operating Temperature Range	Sensor Options	EU ELV Compliance
100cmH2O Differential Sensor	5291-BCE-S-100-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	-
2KPA GAGE DIGITAL PRESSURE SENSOR	7231-BCE-T-002-001	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules	Gauge	15 mmHG	1.5 psi	.019 bar	16 bit I2C	±1% F.S	5 V	-20 – 85 °C	Barb Tube, No Option	-
40CMH20 DIFF. DIGITAL/ANALOG PRESSURE SE	6391-BCE-S-040-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	40.85 mmHG	4.5 psi	.054 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3 V	-20 – 85 °C	Barb Tube, Dual Output	Compliant
0.14PSI DIFF. DIGITAL PRESSURE SENSOR	7391-BCE-S-014-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	16 bit I2C	±1.5% F.S, ±1% F.S	3 V	-40 – 105 °C	Barb Tube, Dual Output	-
40cmH2O Gauge Sensor, 500hz	6295-BGC-S-040-002	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	40.85 mmHG	-	.054 bar	16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
2KPA DIFF. DIGITAL PRESSURE SENSOR	7331-BCE-S-002-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	Barb Tube, No Option	-
4kPa Differential Sensor	5491-BCE-S-140-002	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
1 PSI Differential Sensor	5391-BCE-T-001-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	-
10KPA DIFF. DIGITAL PRESSURE SENSOR	5331-BCE-S-010-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	Barb Tube, No Option	Compliant
1 PSI Differential Sensor	5391-BHQ-T-001-001		-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
2kPa Differential Sensor	7391-BCE-S-002-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
0.14 PSI Differential Sensor	7391-BCE-T-014-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	-
1.40 PSI Differential Sensor	5391-BBE-T-014-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	-
1 PSI Differential Sensor Buy on te.com	5391-BCE-S-001-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
30mBar Gauge Sensor Buy on te.com	6291-BCE-S-030-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	40.85 mmHG	4.5 psi	.054 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
2KPA DIFF. DIGITAL/ANALOG PRESSURE SENSO	7391-BCE-T-002-001	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	5 V	-40 – 105 °C	Barb Tube, Dual Output	-
0.16PSI ASYMMETRIC SENSOR	7421-BBE-S-016-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	16 bit I2C	±1.5% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	-
1.40 PSI Differential Sensor	5391-BBE-S-014-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
100 cmH20 Differential Sensor	5391-BCE-S-100-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
40cmH2O Gauge Sensor, 500hz	6295-BGC-T-040-002	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	40.85 mmHG	-	.054 bar	16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
5.5KPA DIFF. PRESSURE DIGITAL SENSOR	6331-BCE-S-005-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules	Differential	40.85 mmHG	4.5 psi	.054 bar	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	Barb Tube, No Option	-
1kPa Asymmetric Diff. Sensor	7431-BCE-S-001-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	Barb Tube, No Option	Compliant
1kPa Gauge Sensor	7291-BCE-S-001-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	15 mmHG	1.5 psi	.019 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
10kPa Gage Sensor Buy on te.com	5231-BCE-S-010-000	3D PDF	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	-	15 psi	-	-	16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Tube, Dual Output	Compliant
100cmH2O Differential Sensor Buy on te.com	5391-BCE-S-012-001	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	129.28 mmHG	12 psi	.172 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
2KPA DIFF. DIGITAL/ANALOG PRESSURE SENSO	7391-BCE-S-002-001	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	5 V	-40 – 105 °C	Barb Tube, Dual Output	-
40CMH2O GAUGE SENSOR	6295-BGC-S-040-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	40.85 mmHG	-	.054 bar	16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
1KPA DIFF. DIGITAL PRESSURE SENSOR	7331-BCE-S-001-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	Barb Tube, No Option	Compliant
500Pa Differential Sensor	7391-BCE-T-500-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
2KPA GAGE DIGITAL PRESSURE SENSOR	7231-BCE-S-002-001	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules	Gauge	15 mmHG	1.5 psi	.019 bar	16 bit I2C	±1% F.S	5 V	-20 – 85 °C	Barb Tube, No Option	Compliant
2kPa Differential Sensor	7391-BCE-T-002-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	-
5InchesH2O Differential Sensor	7391-BCE-S-005-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	-	1.5 psi	.019 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
1KPA DIFF. DIGITAL PRESSURE SENSOR	7331-BCE-S-001-001	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules	Differential	15 mmHG	1.5 psi	.019 bar	16 bit I2C	±1% F.S	5 V	-20 – 85 °C	Barb Tube, No Option	-
40 inches H2O Gauge Sensor	5295-BGM-S-040-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	129.28 mmHG	-	.172 bar	16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
40CMH2O GAUGE SENSOR Buy on te.com	6295-BCM-S-040-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	40.85 mmHG	-	.054 bar	16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
40CMH2O GAUGE SENSOR Buy on te.com	6295-BCM-T-040-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	40.85 mmHG	-	.054 bar	16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
4KPA DIFF. DIGITAL PRESSURE SENSOR Buy on te.com	6331-BCE-S-004-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules	Differential	40.85 mmHG	4.5 psi	.054 bar	16 bit I2C	±1% F.S	3 V	-20 – 85 °C	Barb Tube, No Option	Compliant
10mBar Gauge Sensor Buy on te.com	7291-BCE-S-010-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Gauge	7.5 mmHG	1.5 psi	.01 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3.3 – 5 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant
500PA DIFF. DIGITAL/ANALOG PRESSURE SENS Buy on te.com	7391-BCE-S-500-000	3D PDF	-	-	Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules	Differential	3.75 mmHG	1.5 psi	.005 bar	10 – 90% Vdc, 16 bit I2C	±1.5% F.S, ±1% F.S	3 V	-40 – 105 °C	Barb Tube, Dual Output	Compliant

Overview

The SMI 5000/ SMI 6000/ SMI 7000 series offers pressure ranges from 0.07 to 2.49 PSI in a gauge, differential or asymmetric differential configuration. This series provides JEDEC standard SOIC-16 package with dual vertical or horizontal porting option. With the dual porting, a reference measurement is possible to minimize errors due to changes in ambient pressure.

Combining the pressure sensor with a signal-conditioning ASIC in a single package simplifies the use of advanced silicon micro-machined pressure sensors. The pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a custom correction algorithm.

Benefits

Pressure ranges: 0.07 to 2.49 PSI
Pressure type: gauge, differential, asymmetric differential
16-bit I²C digital and analog output interface available
Total error band: ± 1% FS (digital) and ± 1.5% FS (analog)
Pressure calibrated and temperature compensated output
Compensated temperature range: -20^oC to 85^oC

Applications

Ventilation devices - CPAP, ventilator, oxygen concentrator and conserver
Air and gas flow instrumentation
HVACR - ventilation, VAV, filter monitoring
Fire pressurization and smoke management

The SMI 5000 and SMI 6000 series digital output sensors earned the AccuStable quality label. The AccuStable brand stands for <1% total error band initially and <1% shift during operation over a 10 year lifetime. Qualification is based on 1,000 hours HTOL (High Temperature Operating Life) test at 85°C with 5V.

LEARN MORE

Related Material

TOPIC	RESOURCES
SMI Low Pressure Sensors	Solution Guide
Ventilator Application Guide	Application Guide
Sleep Mode And Other Low Power Strategies	Application Note
Trust and Reliability For In-Home Medical Sensors	White Paper
Making HVAC Systems More Efficient and Reliable with Sensors	White Paper
Sensors For Medical Ventilators	Application Page

FAQ

FREQUENTLY ASKED QUESTIONS

What is the proof pressure (maximum pressure to which the device can be taken and still perform within specifications (without loss of accuracy) after returning to the operating pressure range) for the SMI 5000, SMI 6000 and SMI 7000 Series?

The proof pressure for the SMI 7000 (maximum operating pressure range 0.29 PSI) is 1.5 PSI. The SMI 6000 (max operating pressure range 0.79 PSI) has a proof pressure of 4.5 PSI and the SMI 5000 (max operating pressure range 2.49) offers a proof pressure of 12 PSI.

What is the burst pressure (pressure where part is permanently damaged) of the SMI 5000, SMI 6000 and SMI 7000 Series?

The burst pressure for the SMI 7000 (maximum operating pressure range 0.29 PSI) is 3 PSI. The SMI 6000 (max operating pressure range 0.79 PSI) has a burst pressure of 6 PSI and the SMI 5000 (max operating pressure range 2.49) offers a burst pressure of 15 PSI.

Features

Please review product documents or contact us for the latest agency approval information.

Operation/Application

Output Interface I²C
Pressure (inH2O) 4.01, 5, 21.88, 69.26, 2, 8.03
Pressure (mmHG) 3.75, 40.85, 129.28, 15, 7.5
Proof Pressure Range 4.5 psi, 12 psi, 1.5 psi, 15 psi
Output Signal Type 10 – 90% Vdc, 16 bit I2C
Pressure Accuracy ±1% F.S, ±1.5% F.S

Dimensions

Product Width 10.31 mm [ .405 in ]
Product Height (mm) 9.32, 5.54
Product Height (in) .218, .366
Product Length (mm) 10.26, 19.6
Product Length (in) .403, .771

Product Type Features

Sensor Package SOIC-16
Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules, Analog Pressure Sensor Modules
Pressure Type Differential, Gauge

Packaging Features

Sensor Port Configuration Dual Vertical, Single Vertical, Dual Horizontal

Electrical Characteristics

Supply Voltage Range (V) 3.3 – 5, 5, 3

Usage Conditions

Pressure (bar) .005, .019, .054, .172, .01
Pressure (psi) 1.45, 2.5, .29, .15, .79
Operating Temperature Range (°C) -20 – 85, -40 – 105
Operating Temperature Range (°F) -40 – 221, -4 – 185

Other

Sensor Options Dual Output, Tube, No Option, Barb Tube
EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-BLPS0063
