CORCOM C SERIES MULTI-FUNCTION INLET FIL

CORCOM C SERIES MULTI-FUNCTION INLET FIL-CAT-C8114-102
  • Corcom
|
  • Corcom C

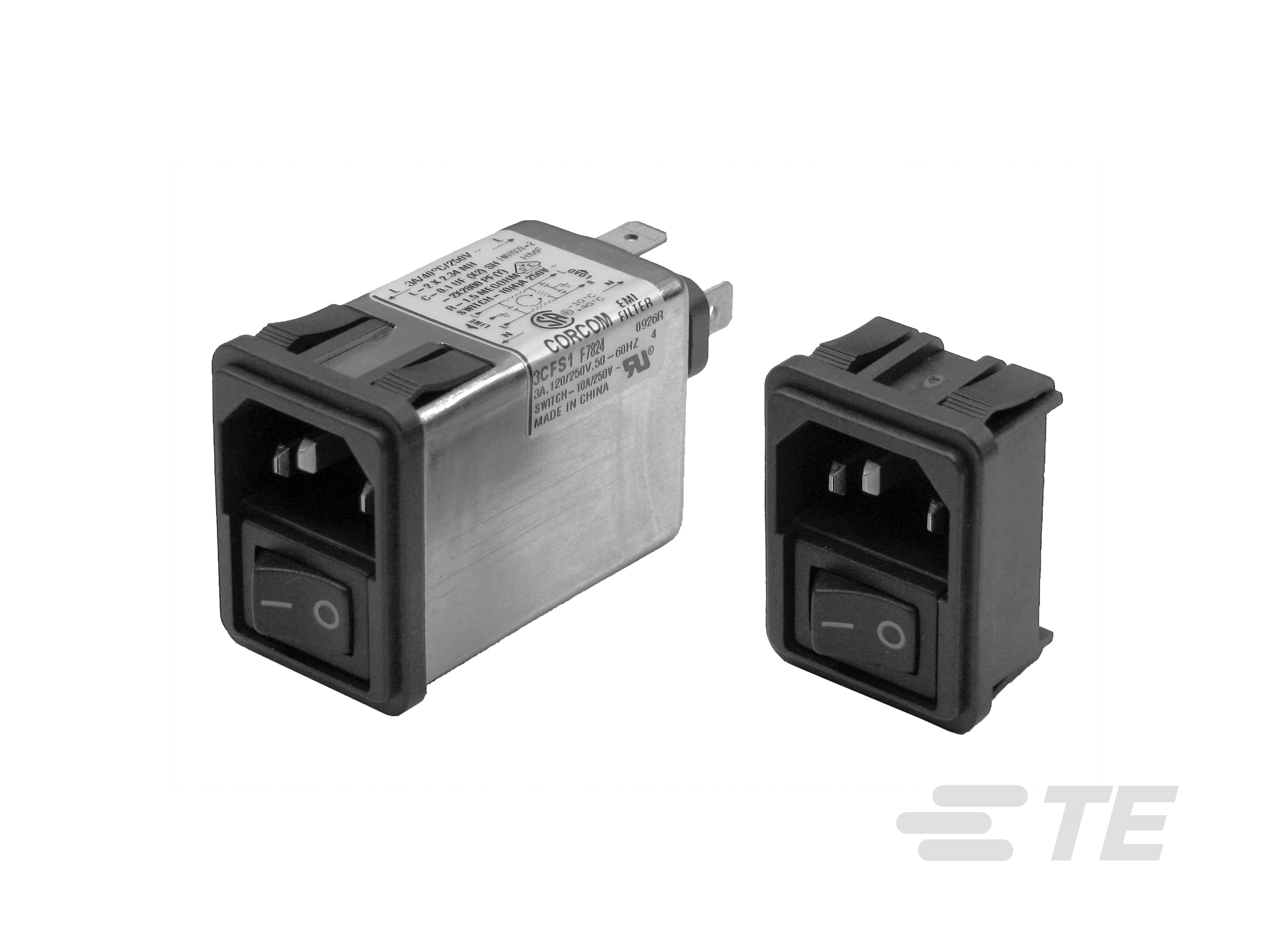

A two function power entry module combining a DPST switch and an IEC 60320-1 inlet. Two element circuit provides enhanced EMI attenuation.
More Less

Product Features

  • Filter Type : Power Entry Module

  • Input Voltage Selection : None

  • Filter Switch Type : DPST

  • Filter Shield Type : Complete Can, Shielded, Filter Shield

  • Product Orientation : Vertical

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Extender Options  None

  • Fuse Options  None

Product Type Features

  • Ground Choke Option  No

  • Filter Type  Power Entry Module

  • Filter Switch Type  DPST

  • Output Termination Type  .250" FASTON

  • Filtering Requirements  Filtered

  • Filter Connector Type  IEC 320/C-14

Mechanical Attachment

  • Panel Mount Feature Type  Snap-In, Flange

Electrical Characteristics

  • Input Voltage Selection  None

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 250

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 400

  • Current Rating (A) 3, 6, 10, 1

  • Operating Voltage (VAC) 250

Body Features

  • Filter Shield Type  Complete Can, Shielded, Filter Shield

  • Product Orientation  Vertical

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C8114-102
