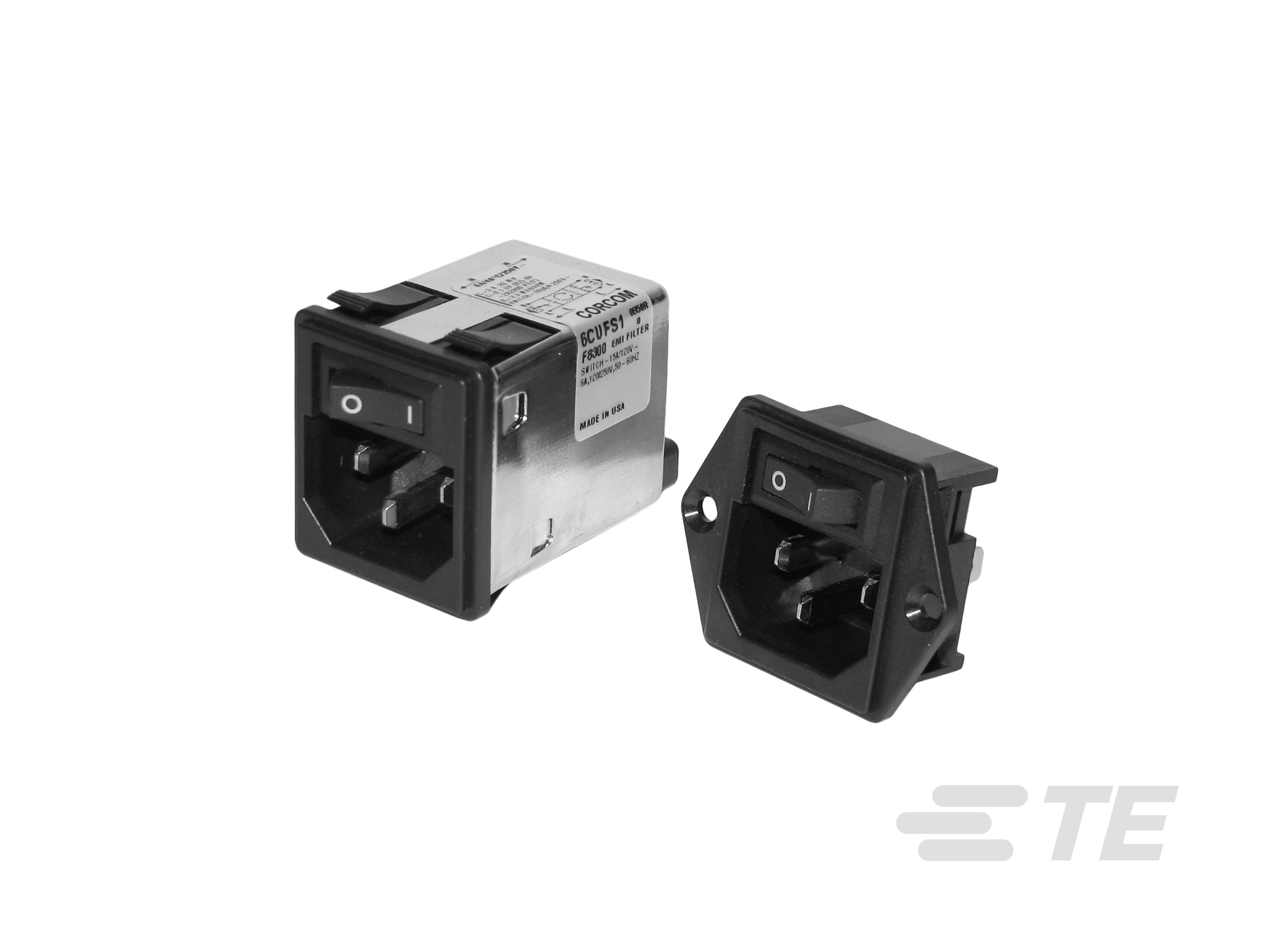

CORCOM CU SERIES MULTI-FUNCTION INLET FI

Please review product documents or contact us for the latest agency approval information.

• Level Of Filtering  Inductor & Capacitor, None

• Ground Choke Option  No

• Filter Type  Power Entry Module

• Filter Switch Type  SPST

• Output Termination Type  .187" FASTON

• Filtering Requirements  Filtered, Unfiltered

• Filter Connector Type  IEC 60320-1 C-14

• Panel Thickness (Recommended) (in) .024 – .08, .031 – .098

• Panel Thickness (Recommended) (mm) .63 – 2.1, .8 – 2.5

• Panel Thickness (Recommended) (in) .024 – .08, .031 – .098

• Panel Mount Feature Type  Snap-In, Flange

• Product Mount Type  Panel Mount

• Input Voltage Selection  None

• Leakage Current (Max) (120VAC, 60Hz) (µA) 2, 250

• Leakage Current (Max) (250VAC, 50Hz) (µA) 5, 400

• Current Rating (A) 15, 6, 10, 3, 1

• Operating Voltage (VAC) 250

• Filter Shield Type  Shielded, None, Complete Shield

• Product Orientation  Vertical

• Device Safety Features  Shrouded Output

• Fuse Options  None

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant
