This product is not currently available. For more information, including distributor inventory, please contact us.

  • Product Listing

This product is not currently available. For more information, including distributor inventory, please contact us.

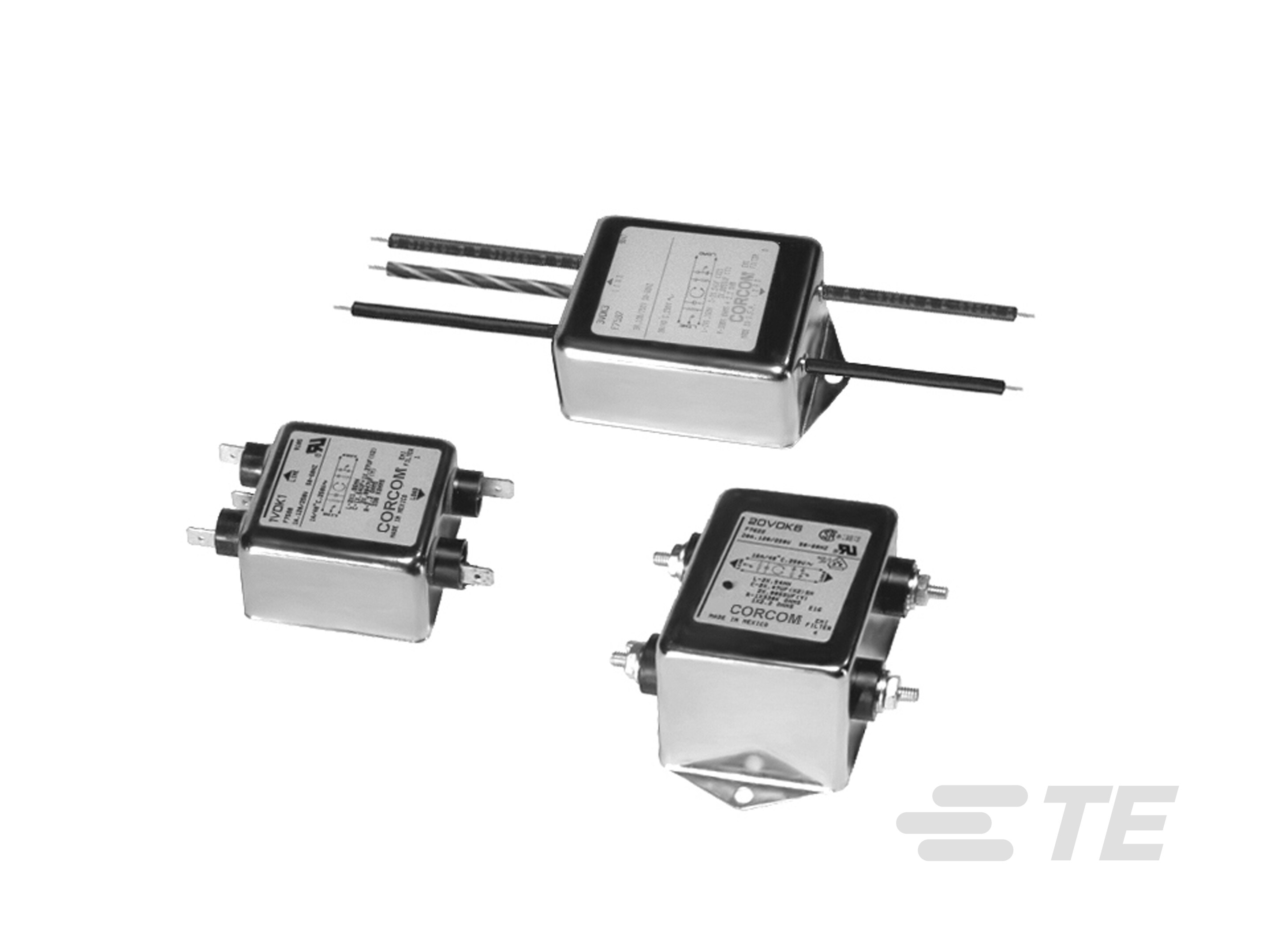

Single Phase Filters, Corcom DK Series

Single Phase Filters, Corcom DK Series-CAT-C8114-D6493
  • Corcom
|
  • Corcom DK
Enhanced Differential Mode Performance K Series RFI Line Filters
More Less

Product Features

  • Current Rating (A): 3, 6, 10, 20, 1

  • Input Termination Type : Wire Lead, Stud, .250" FASTON

  • Output Termination Type : Wire Lead, .250" FASTON, Stud

  • Leakage Current (Max) (120VAC, 60Hz) (mA): .4, .22

  • Leakage Current (Max) (250VAC, 50Hz) (mA): .7, .38

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Filtered

  • Ground Choke Option  No

  • Input Termination Type  Wire Lead, Stud, .250" FASTON

  • Output Termination Type  Wire Lead, .250" FASTON, Stud

Mechanical Attachment

  • Panel Mount Feature Type  Flange

Electrical Characteristics

  • Current Rating (A) 3, 6, 10, 20, 1

  • Leakage Current (Max) (120VAC, 60Hz) (mA) .4, .22

  • Leakage Current (Max) (250VAC, 50Hz) (mA) .7, .38

  • Operating Voltage (VAC) 250

Other

  • EU RoHS Compliance  Not Compliant, Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C8114-D6493
