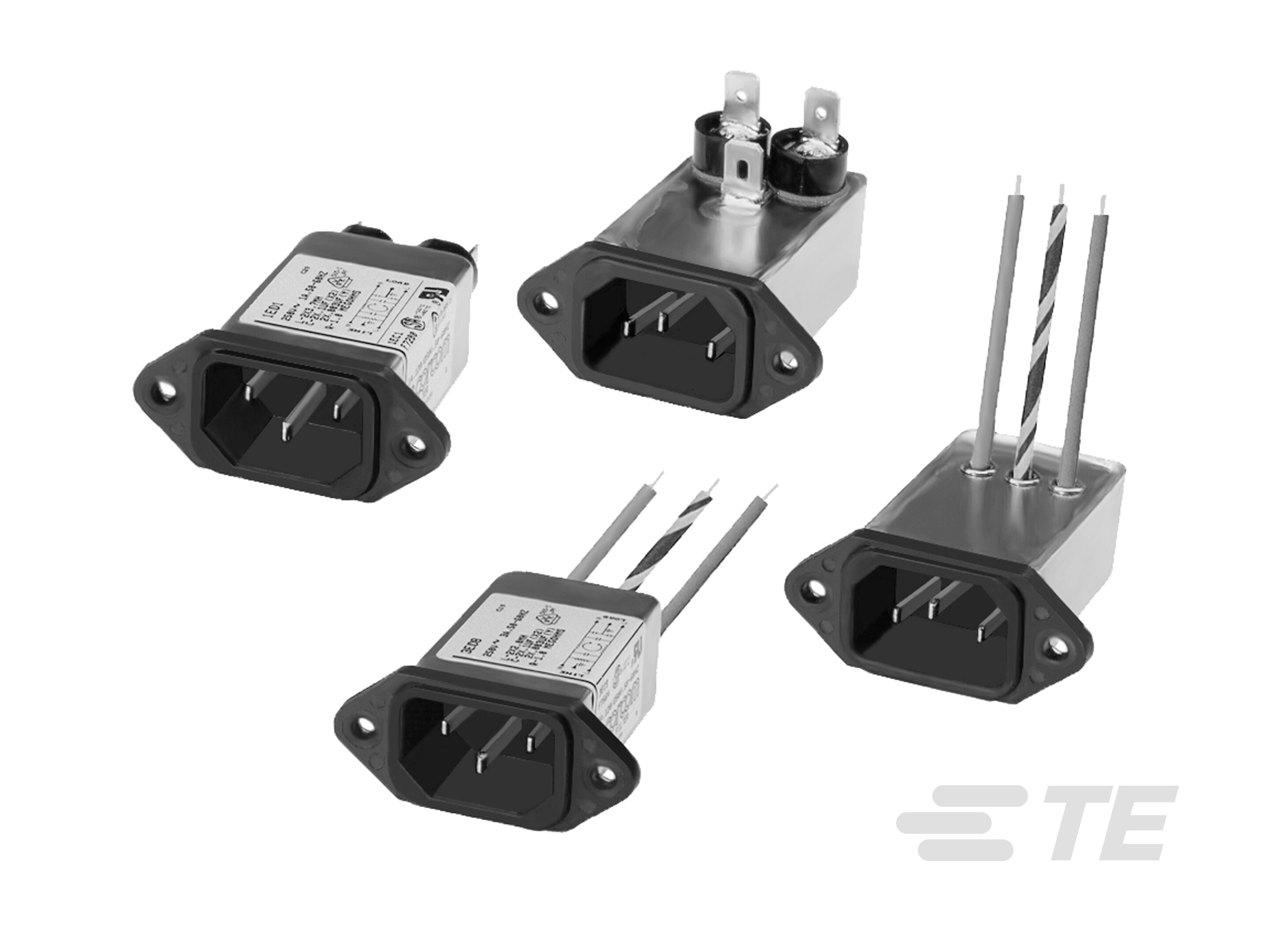

IEC Filtered Inlets, Corcom ED Series

IEC Filtered Inlets, Corcom ED Series-CAT-C8114-ED1
  • Corcom
|
  • Corcom ED
Medium Performance Compact EMI Power Inlet Filter. Two element circuit provides medium attenuation.
More Less

Product Features

  • Filter Type : Power Line

  • Product Orientation : Right Angle

  • Leakage Current (Max) (120VAC, 60Hz) (µA): 220

  • Leakage Current (Max) (250VAC, 50Hz) (µA): 380

  • Current Rating (A): 15, 3, 6, 10, 1

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Ground Choke Option  No, Yes

  • Filter Type  Power Line

  • Output Termination Type  Wire Lead, .250" FASTON

  • Filtering Requirements  Filtered

  • Filter Connector Type  IEC 60320-1 C-13

Mechanical Attachment

  • Panel Mount Feature Type  Flange

Body Features

  • Product Orientation  Right Angle

Electrical Characteristics

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 220

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 380

  • Current Rating (A) 15, 3, 6, 10, 1

  • Operating Voltage (VAC) 250

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C8114-ED1
