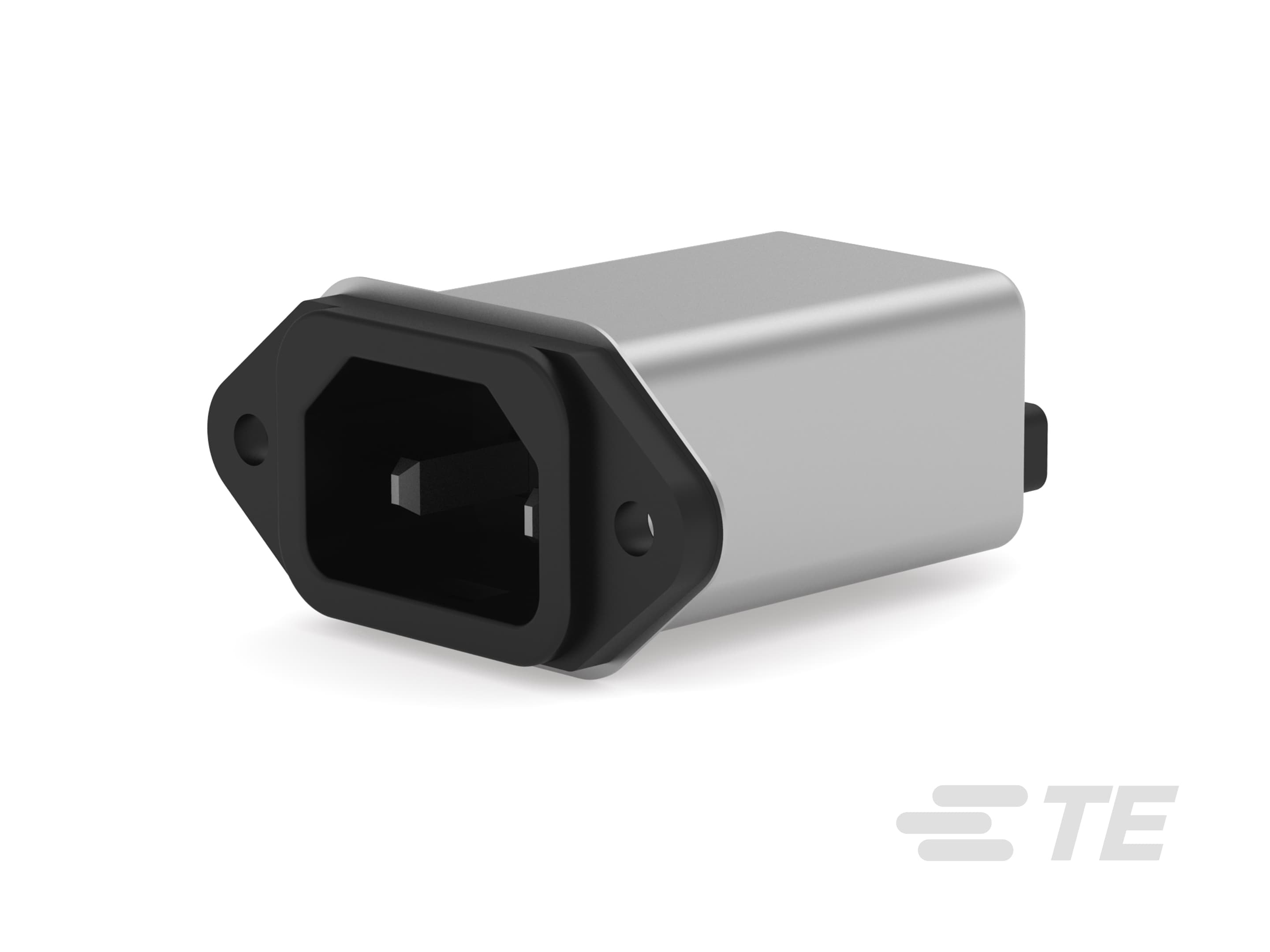

IEC Filtered Inlets, Corcom IH Series

IEC Filtered Inlets, Corcom IH Series-CAT-C8114-IH1
  • Corcom
|
  • Corcom IH
EMI filters for medical application. Complies with IEC 60601-1 Class II. Eliminates accidental power disconnection at the equipment.
More Less

Product Features

  • Filter Type : Medical

  • Filter Shield Type : Complete Shield

  • Device Safety Features : Locking Socket & Shrouded Output

  • Filter Mode of Operation : 2 MOPP

  • Leakage Current (Max) (120VAC, 60Hz) (µA): 3

Available from

LADD Inc
Overview
Datasheet
CORCOM IH SERIES IEC INLET FILTER

The TE Connectivity Corcom IH Series of IEC inlet filters brings double-insulated filtering capability to the medical and portable equipment market. It enables manufacturers to comply with the IEC 60601-1 standard class II requirements by providing 2 MOPP construction (2 Means of Patient Protection). It is compatible with V-Lock cords to prevent accidental disconnection of power from the equipment.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Level Of Filtering  Inductor & Capacitor

  • Ground Choke Option  No

  • Filter Type  Medical

  • Output Termination Type  .187" FASTON

  • Filtering Requirements  Filtered

  • Filter Connector Type  IEC 60320-1 C-18

Dimensions

  • Panel Thickness (Recommended)  1 – 2 mm [ .039 – .079 in ]

Mechanical Attachment

  • Panel Mount Feature Type  Snap-In, Flange

Usage Conditions

  • Operating Temperature Range (°C) -10 – 40

Body Features

  • Filter Shield Type  Complete Shield

Operation/Application

  • Device Safety Features  Locking Socket & Shrouded Output

  • Filter Mode of Operation  2 MOPP

Electrical Characteristics

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 3

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 5

  • Current Rating (A) 15, 3, 6, 10

  • Operating Voltage (VAC) 250

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C8114-IH1
