High Performance Filters, Corcom P Series

High Performance Filters, Corcom P Series-CAT-C8114-P4
  • Corcom
|
  • Corcom P

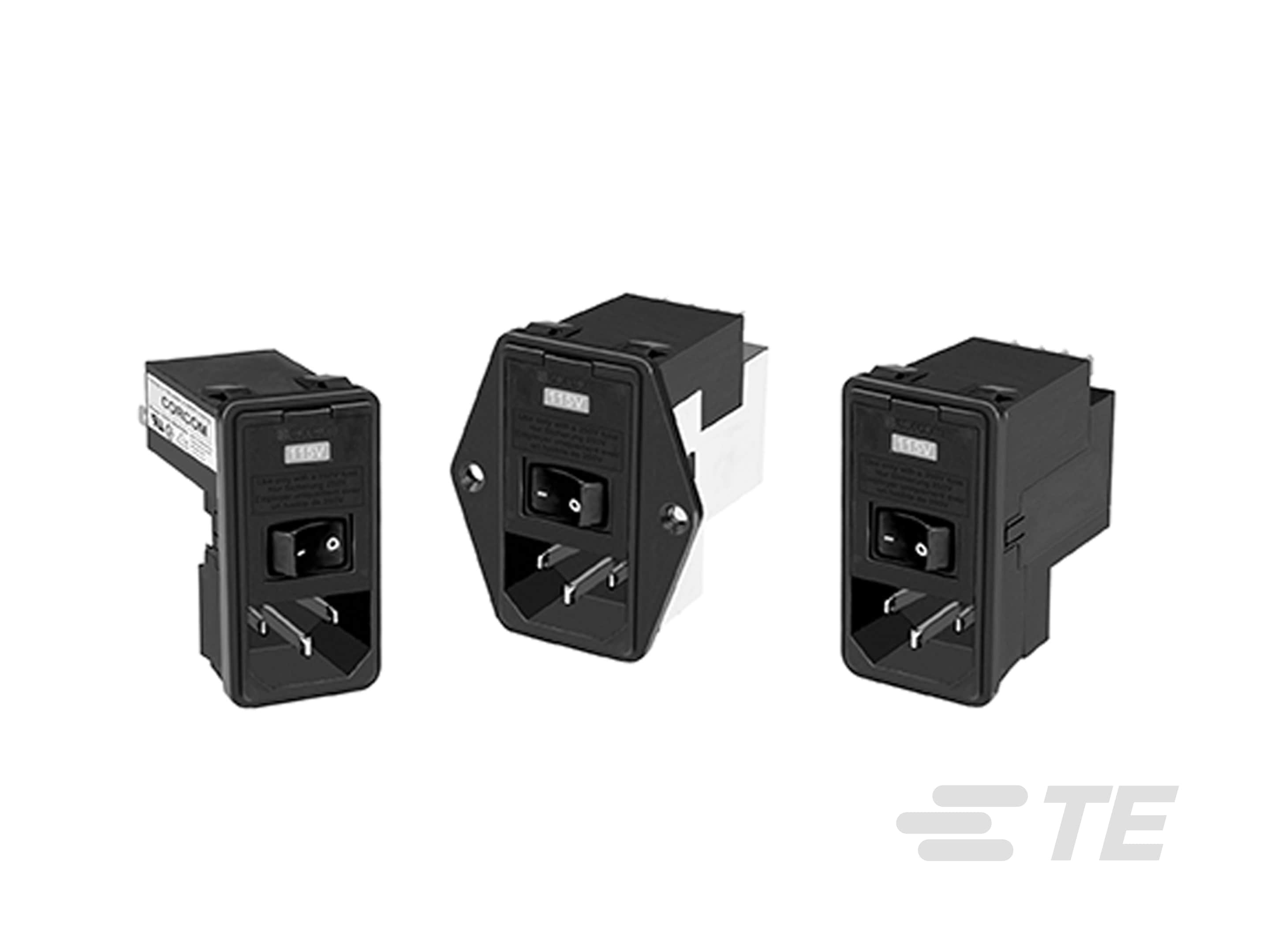

Corcom High Performance P Series with Vertical Mounting Option
More Less

Product Features

  • Filter Type : Power Entry Module

  • Input Voltage Selection : Single AC

  • Filter Switch Type : DPST, No Switch

  • Filter Shield Type : Complete Can

  • Product Orientation : Vertical

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Ground Choke Option  No

  • Filter Type  Power Entry Module

  • Filter Switch Type  DPST, No Switch

  • Output Termination Type  .250" FASTON

  • Filtering Requirements  Filtered

  • Filter Connector Type  IEC 320/C-14, IEC 60320-1 C-14

Configuration Features

  • Extender Options  None

  • Fuse Options  Dual, Single

Electrical Characteristics

  • Input Voltage Selection  Single AC

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 2, 250

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 5, 500

  • Current Rating (A) 6, 10

  • Operating Voltage (VAC) 250

Body Features

  • Filter Shield Type  Complete Can

  • Product Orientation  Vertical

Mechanical Attachment

  • Panel Mount Feature Type  Flange, Mounting Ears (Horizontal), Mounting Ears (Vertical)

Dimensions

  • Panel Thickness (Recommended) (mm) .13 – 1

Usage Conditions

  • Operating Temperature Range (°C) -10 – 40

Reference Number

  • TE Internal Number CAT-C8114-P4
