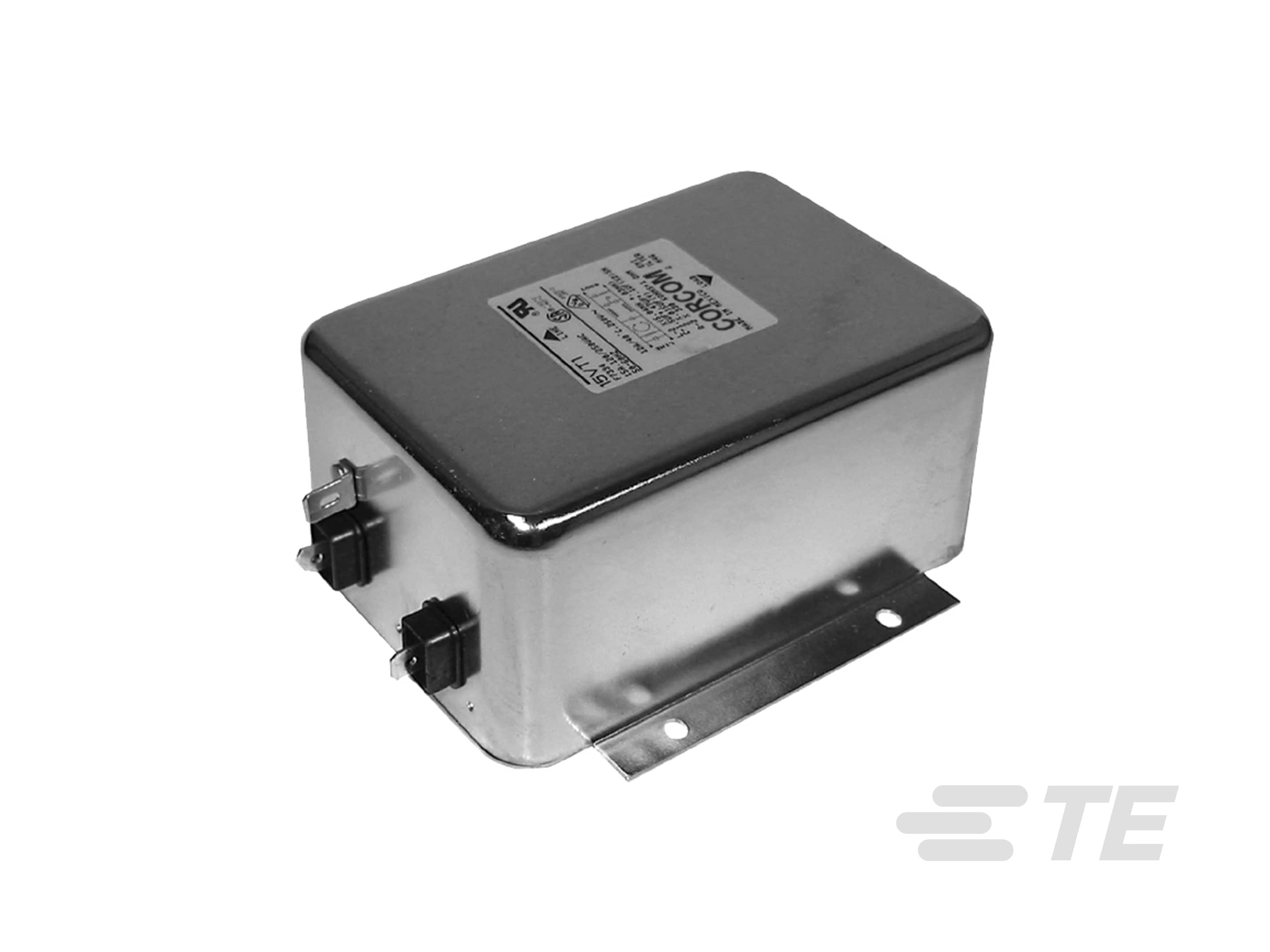

Single Phase Filters, Corcom T Series

Single Phase Filters, Corcom T Series-CAT-C8114-T1
  • Corcom
|
  • Corcom T
High Performance RFI Power Line Filters for Switching Power Supplies. Superior common-mode and premium differential-mode attenuation.
More Less

Product Features

  • Current Rating (A): 15, 3, 6, 10, 20

  • Input Termination Type : Wire Lead, Stud, .250" FASTON

  • Output Termination Type : Wire Lead, .250" FASTON, Stud

  • Leakage Current (Max) (120VAC, 60Hz) (mA): 1.2, .3, .75

  • Leakage Current (Max) (250VAC, 50Hz) (mA): 1.25, 2, .5

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Filtered

  • Ground Choke Option  No

  • Input Termination Type  Wire Lead, Stud, .250" FASTON

  • Output Termination Type  Wire Lead, .250" FASTON, Stud

Mechanical Attachment

  • Panel Mount Feature Type  Threaded, Flange

Usage Conditions

  • Operating Temperature Range (°C) -10 – 40

Electrical Characteristics

  • Current Rating (A) 15, 3, 6, 10, 20

  • Leakage Current (Max) (120VAC, 60Hz) (mA) 1.2, .3, .75

  • Leakage Current (Max) (250VAC, 50Hz) (mA) 1.25, 2, .5

  • Operating Voltage (VAC) 250

Other

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-C8114-T1
