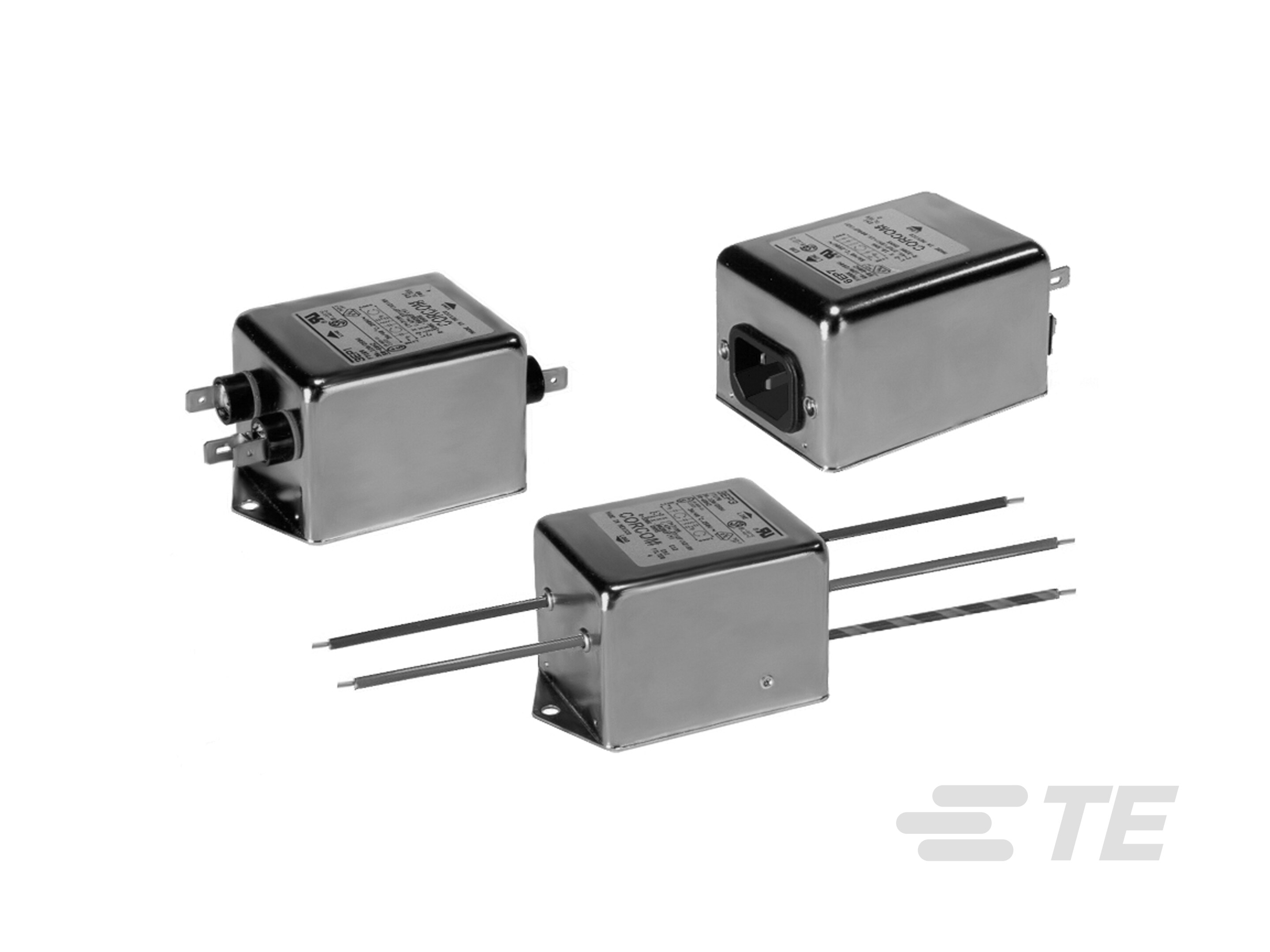

Single Phase Filters, Corcom VP Series

Single Phase Filters, Corcom VP Series-CAT-C8114-V949
  • Corcom
|
  • Corcom VP
Dual Stage RFI Power Line Filters for Switching Mode Power Supplies. Dual stage filter offers high insertion loss.
More Less

Product Features

  • Current Rating (A): 20

  • Input Termination Type : Stud, .250" FASTON

  • Output Termination Type : .250" FASTON, Stud

  • Leakage Current (Max) (120VAC, 60Hz) (mA): .73

  • Leakage Current (Max) (250VAC, 50Hz) (mA): 1.27

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Filtered

  • Ground Choke Option  No

  • Input Termination Type  Stud, .250" FASTON

  • Output Termination Type  .250" FASTON, Stud

Mechanical Attachment

  • Panel Mount Feature Type  Flange

Usage Conditions

  • Operating Temperature Range (°C) -10 – 40

Electrical Characteristics

  • Current Rating (A) 20

  • Leakage Current (Max) (120VAC, 60Hz) (mA) .73

  • Leakage Current (Max) (250VAC, 50Hz) (mA) 1.27

  • Operating Voltage (VAC) 250

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C8114-V949
