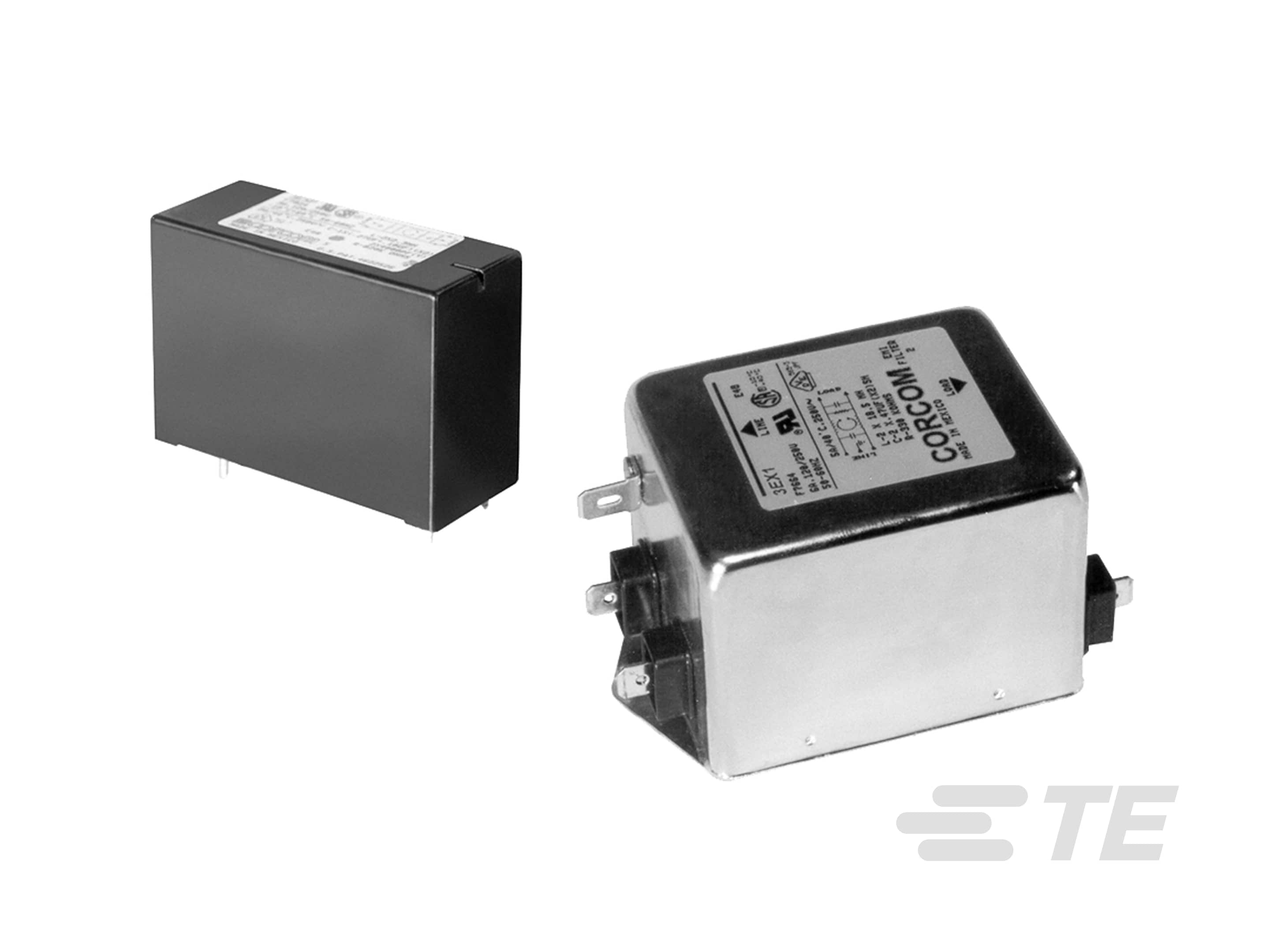

Single Phase Power Line Filters, Corcom Y Series

Single Phase Power Line Filters, Corcom Y Series-CAT-C8114-Y101
  • Corcom
|
  • Corcom Y
Chassis or PC Board Mountable Power Line Filters for Emission Control. Designed to bring most digital equipment (including those with switching power supplies) into compliance with EN55022, Level A and FCC Part 15J, Class B conducted emission limits
More Less

Product Features

  • Current Rating (A): 2, 4, 3

  • Input Termination Type : PCB Pins .065" Diagonal

  • Output Termination Type : PCB Pins .065" Diagonal

  • Leakage Current (Max) (120VAC, 60Hz) (mA): .3

  • Leakage Current (Max) (250VAC, 50Hz) (mA): .5

Available from

LADD Inc

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Filtered

  • Ground Choke Option  No

  • Input Termination Type  PCB Pins .065" Diagonal

  • Output Termination Type  PCB Pins .065" Diagonal

Mechanical Attachment

  • Product Mount Type  Board Mount

Electrical Characteristics

  • Current Rating (A) 2, 4, 3

  • Leakage Current (Max) (120VAC, 60Hz) (mA) .3

  • Leakage Current (Max) (250VAC, 50Hz) (mA) .5

  • Operating Voltage (VAC) 250

Other

  • EU RoHS Compliance  Not Compliant, Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C8114-Y101
