DEUTSCH DTHD Housings
- DEUTSCH
- DEUTSCH DTHD ,
- DEUTSCH DT

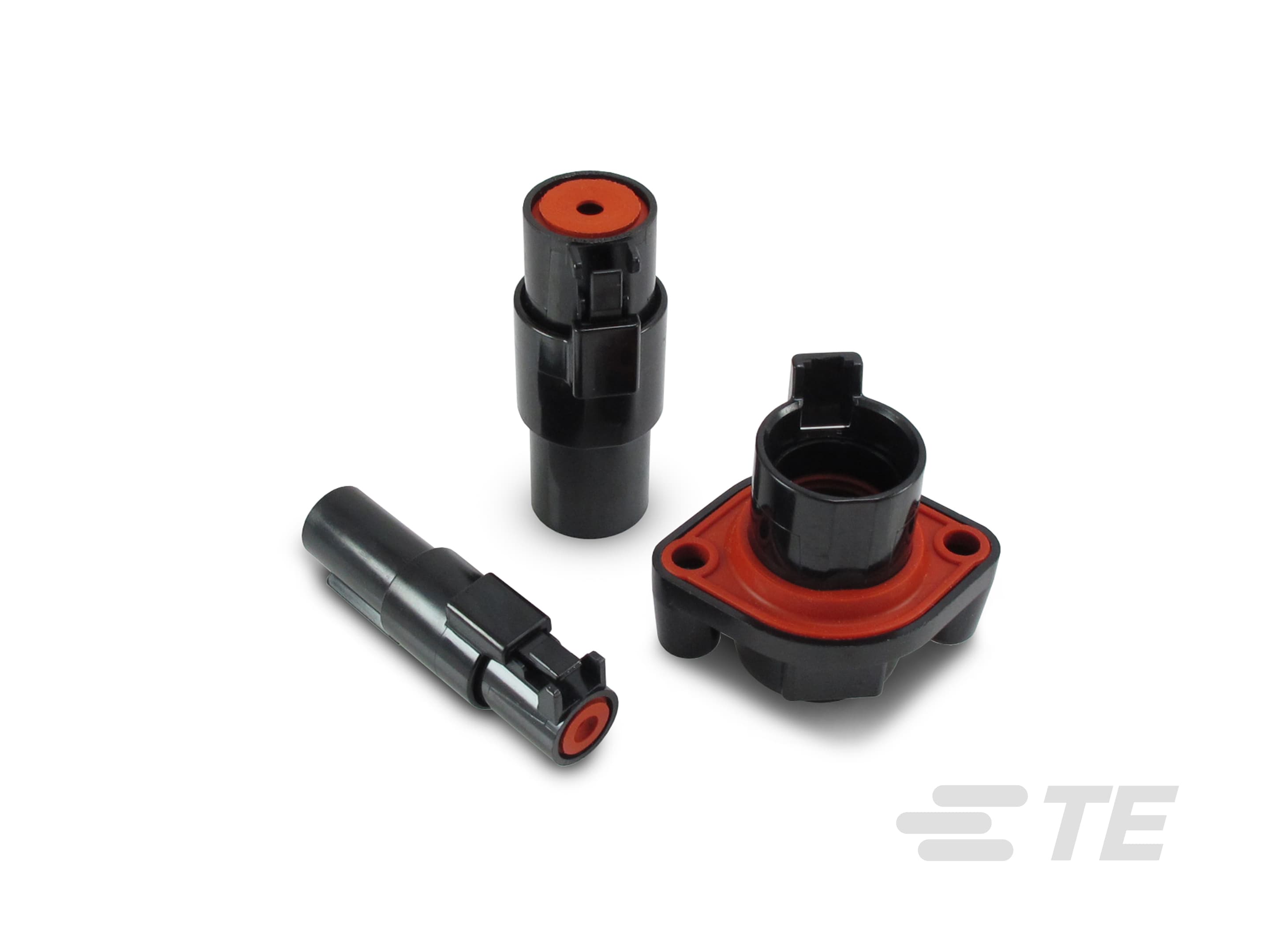

DEUTSCH DTHD housings are available in three sizes, carrying 25, 60, or 100 amps. These single terminal connectors feature an integrated latch for mating and can be mounted or used in-line.
Product Features
-
Number of Positions : 1
-
Connector & Housing Type : Housing for Male Terminals, Housing for Female Terminals
-
Mating Pin Diameter (mm): 2.39, 3.61, 5.72
-
Mating Pin Diameter (in): .225, .094, .142
-
Connector System : Wire-to-Wire
-
Sealable : Yes
Overview
DEUTSCH DTHD housings are heavy-duty power terminations available with multiple mounting options.
Series Overview
- Accepts contact sizes 4 (100 amps), 8 (60 amps), and 12 (25 amps)
- 6-14 AWG (16.00-2.00 mm2)
- 1 cavity arrangement
- In-line or flange mount
- Circular, thermoplastic housing
- Integrated latch for mating
- Available accessories: Mounting clips
Learn about our DEUTSCH single terminal connectors, including DTHD, DTSK, and Jiffy Splice. These connectors are designed for harsh environment applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.
Additional DEUTSCH DTHD products
-
VIEW ALL DEUTSCH DTHD PRODUCTS

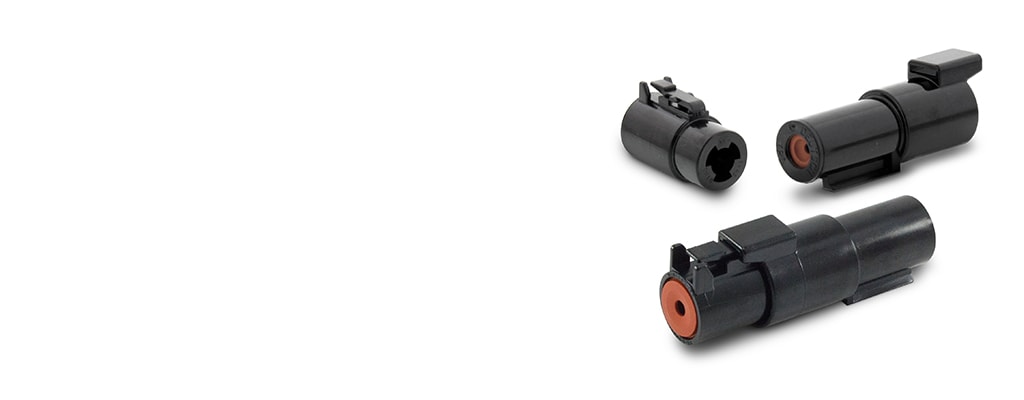

DEUTSCH DTHD connectors are single terminal connectors for heavy-duty applications.
Features
Please review product documents or contact us for the latest agency approval information.
Other
-
Serviceable Yes
-
Connector Position Assurance Capable No
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Packaging Features
-
Packaging Method Box
-
Packaging Quantity 160, 1500, 800, 1000, 500
Electrical Characteristics
-
Operating Voltage (VDC) 250
-
Operating Voltage (VAC) 250
-
Nominal Voltage Architecture (V) 250
Contact Features
-
Contact Type Socket, Pin
-
Contact Size Size 8, Size 4, Size 12
-
Mating Pin Diameter (mm) 2.39, 3.61, 5.72
-
Mating Pin Diameter (in) .225, .094, .142
-
Contact Current Rating (Max) (A) 60, 25, 100
Dimensions
-
Connector Height (mm) 43.18, 19.58, 21.87, 23.88, 21.59, 27.33
-
Connector Height (in) .85, 170, .861, .94, 1.7, 1.076, .771
-
Product Length (mm) 53.8, 52.53, 38.05, 39.32
-
Product Length (in) 2.118, 2.068, 1.498, 1.548
-
Compatible Insulation Diameter Range (mm) 4.83 – 6.09, 6.63 – 10.67, 3.4 – 4.32
-
Compatible Insulation Diameter Range (in) .19 – .24, .134 – .17, .261 – .42
-
Product Width (mm) 18.03, 16.76, 20.32, 14.48, 22.23, 57.15, 26.54
-
Product Width (in) .8, 2.25, 1.045, .875, .57, .66, .71
Housing Features
-
Housing Material PEI (Polyetherimide)
Configuration Features
-
Connector Modification Sealed Flange, End Cap
-
Number of Positions 1
-
Number of Rows 1
Product Type Features
-
Connector Shape Circular
-
Mixed & Hybrid Connector No
-
Connector & Housing Type Housing for Male Terminals, Housing for Female Terminals
-
Connector System Wire-to-Wire
-
Sealable Yes
-
Primary Locking Feature Integrated in Housing
-
Connector & Contact Terminates To Wire & Cable
Industry Standards
-
UL Flammability Rating Not tested
-
IP Rating Not Tested
Mechanical Attachment
-
Terminal Position Assurance No
-
Mating Alignment Type Polarized, Polarizing Rib
-
Strain Relief With
-
Mating Alignment With
-
Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount
Body Features
-
Cable Exit Angle 180°
-
Primary Product Color Black
Usage Conditions
-
Operating Temperature (Max) 125 °C [ 257 °F ]
-
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
-
Circuit Application Power
Reference Number
-
TE Internal Number CAT-D48-PCH8172
