Backshells, DEUTSCH DTM
- DEUTSCH
- DEUTSCH DT ,
- DEUTSCH DTM

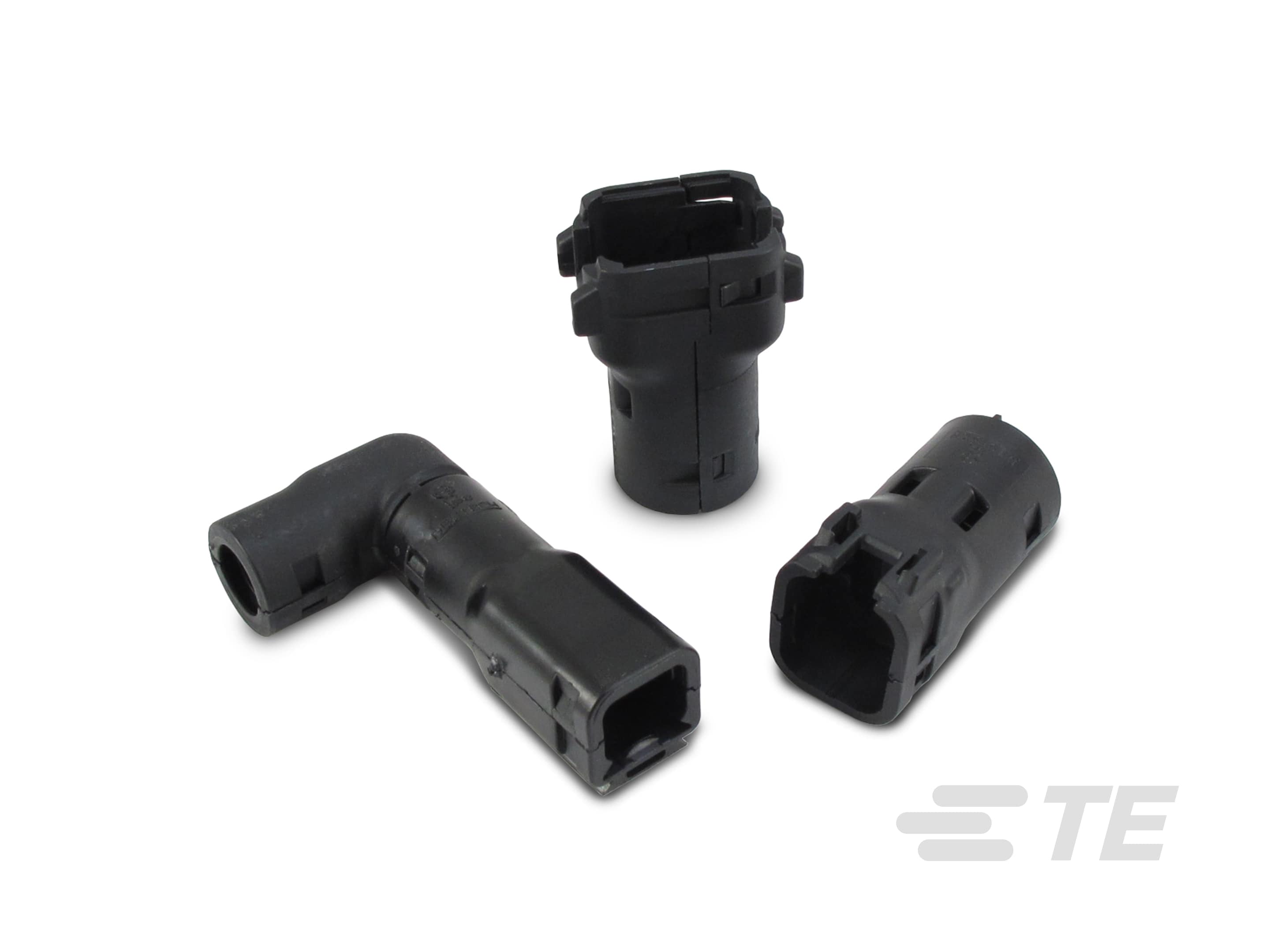

DEUTSCH DTM backshells offer a high level of protection and allow convoluted tubing to nest within the rear of the backshell. Straight and 90° versions are available.
Product Features
-
Packaging Method : Box
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Primary Product Color : Black
-
Primary Product Material : PBT, PA6, PA GF
-
Compatible With Connector Shape : Rectangular
Overview
DEUTSCH DTM backshells provide strain relief and can accommodate convoluted tubing or jacketed cable.
Additional DEUTSCH DTM products
-
VIEW ALL DEUTSCH DTM PRODUCTS
DEUTSCH DTM connectors fill the need for lower amperage, multi-pin connectors. They are environmentally sealed and stand up to harsh environments.
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Sealable No
-
Connector Backshell Product Type Backshell
Configuration Features
-
Number of Positions 3
Body Features
-
Primary Product Color Black
-
Primary Product Material PBT, PA6, PA GF
-
Cable Exit Angle 180°, 90°
Housing Features
-
Compatible With Connector Shape Rectangular
-
Body Orientation 90
Dimensions
-
Compatible Cable Diameter Range (mm) 0 – 8.5, 7.5 – 8.5, 10 – 13, 13 – 17
-
Compatible Cable Diameter Range (in) 0 – .225, .295 – .335, .394 – .511, .511 – .669
Usage Conditions
-
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
-
Operating Temperature (Max) 125 °C [ 257 °F ]
Industry Standards
-
IP Rating IP6K9K
-
UL Flammability Rating UL 94HB
Packaging Features
-
Packaging Method Box
-
Packaging Quantity 1
Other
-
Serviceable Yes
Reference Number
-
TE Internal Number CAT-D485-B128
