DEUTSCH DTM Wedgelocks
- DEUTSCH
- DEUTSCH DT ,
- DEUTSCH DTM

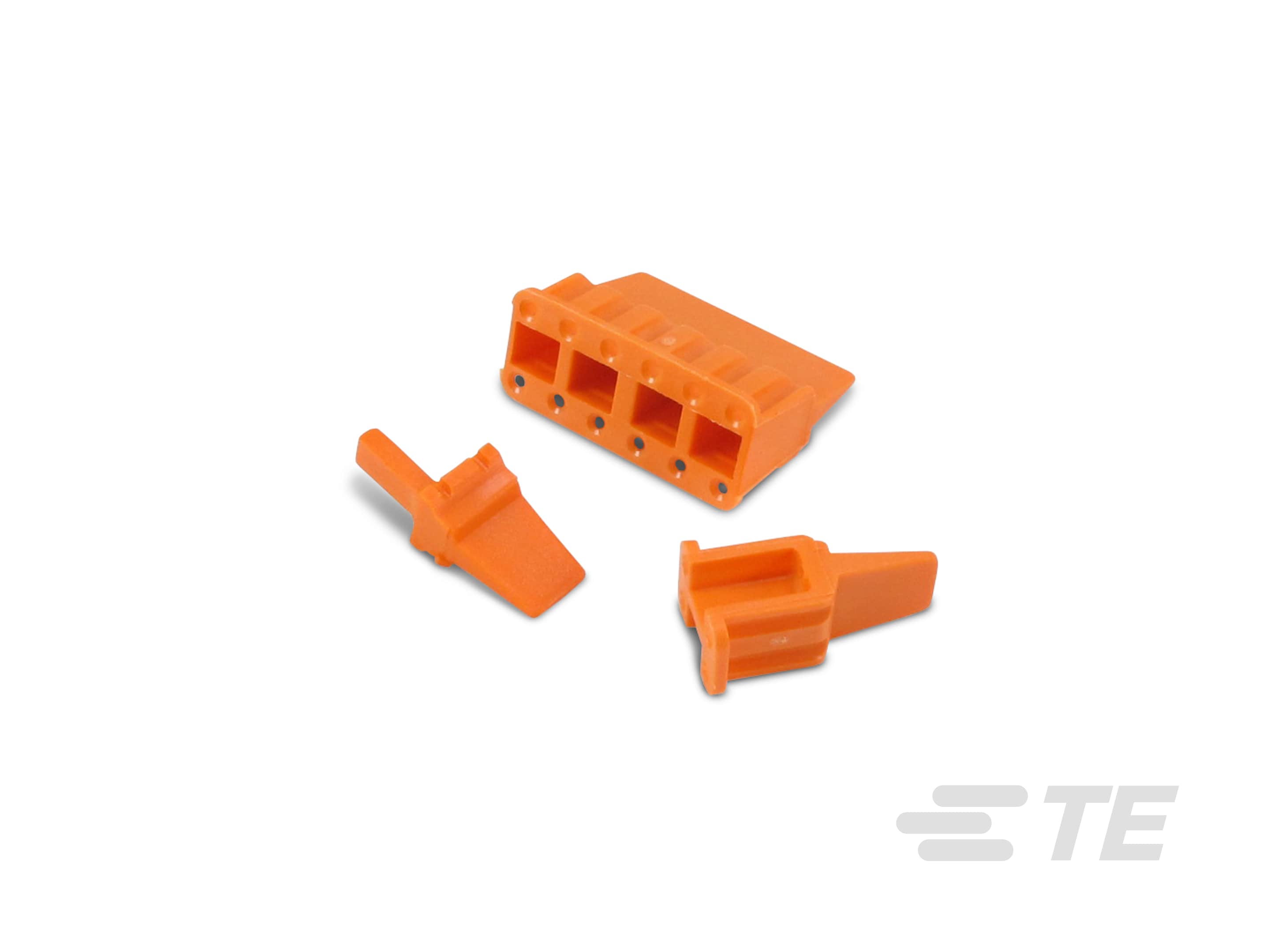

DEUTSCH DTM wedgelocks help confirm proper contact alignment within each connector. They are assembled at the mating interface and press into place. Wedgelocks are required components for all DEUTSCH DTM connectors.
Product Features
-
Connector & Contact Retention Accessory Type : Secondary Lock, TPA (Terminal Position Assurance)
-
Primary Product Color : Green, Brown, Orange, Black, Gray
-
Primary Product Material : PBT
-
Number of Positions : 6, 8, 12, 2, 4, 3
-
Operating Temperature Range (°C): -55 – 125, -55 – 150
-
Operating Temperature Range (°F): -67 – 302, -67 – 257
Overview
DEUTSCH DTM wedgelocks are required components.
Learn about our field proven DEUTSCH DT, DTM, and DTP connectors for harsh environment applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.
Additional DEUTSCH DTM products
-
VIEW ALL DEUTSCH DTM PRODUCTS
DEUTSCH DTM connectors fill the need for lower amperage, multi-pin connectors. They are environmentally sealed and stand up to harsh environments.
Features
Please review product documents or contact us for the latest agency approval information.
Other
-
Serviceable Yes
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Packaging Features
-
Packaging Method Box
-
Packaging Quantity 25000, 15000
Usage Conditions
-
Compatible With Connector Style Receptacle
-
Operating Temperature Range (°C) -55 – 125, -55 – 150
-
Operating Temperature Range (°F) -67 – 302, -67 – 257
Product Type Features
-
Sealable No
-
Connector & Contact Retention Accessory Type Secondary Lock, TPA (Terminal Position Assurance)
Industry Standards
-
UL Flammability Rating UL 94HB
Body Features
-
Primary Product Color Green, Brown, Orange, Black, Gray
-
Primary Product Material PBT
Configuration Features
-
Number of Positions 6, 8, 12, 2, 4, 3
Reference Number
-
TE Internal Number CAT-D485-W416
