Overview

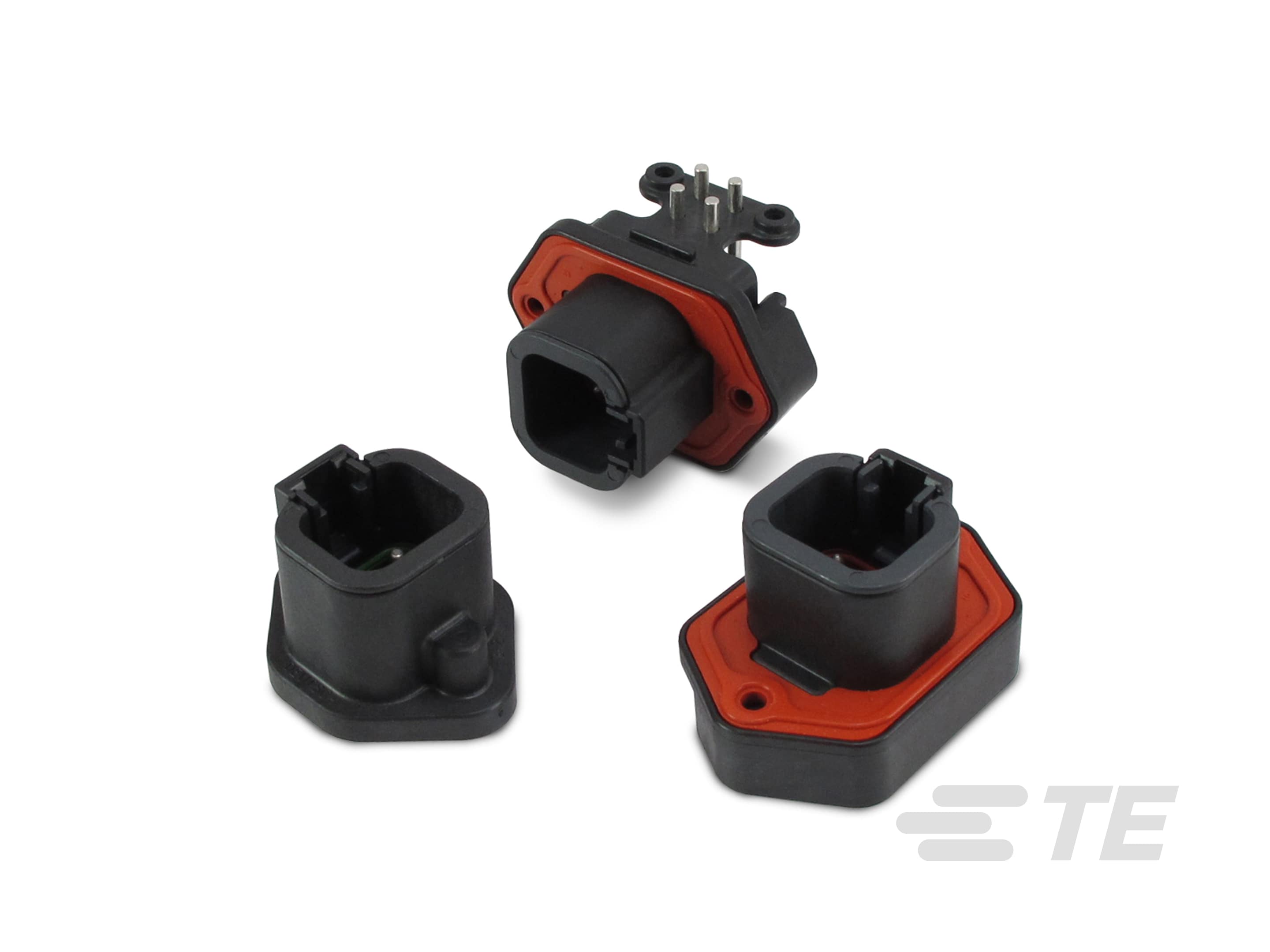

DEUTSCH DTP headers are 25 amp PCB solutions.

Series Overview

  • Accepts contact size 12 (25 amps)
  • 10-14 AWG (6.00-2.00 mm2)
  • 2 and 4 cavity arrangements
  • In-line, flange, or PCB mount
  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedgelocks confirm contact alignment and retention
  • Available accessories: boots, gaskets, mounting clips
  1. DEUTSCH DT Family Connector Overview & Assembly Instructions (English)

Learn about our field proven DEUTSCH DT, DTM, and DTP connectors for harsh environment applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.

FAQ

Frequently Asked Questions

Q:    What is a DTP connector?

A:     DEUTSCH DTP environmentally sealed connectors are designed for cable to cable and cable to board applications. DTP connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q:    What are the appropriate applications for DTP connectors?

A:     Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle



READ MORE FAQS ABOUT DEUTSCH DTP CONNECTORS

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Board

  • Sealable  Yes

  • Connector & Contact Terminates To  Wire & Cable

  • Connector Shape  Rectangular

  • Mixed & Hybrid Header  No

  • Header Type  Fully Shrouded

  • PCB Connector Assembly Type  PCB Mount Header

Configuration Features

  • Number of Sections  1

  • Number of Positions  4

  • Number of Rows  2

  • Number of Signal Positions  0

  • PCB Mount Orientation  Vertical, Right Angle

Electrical Characteristics

  • Operating Voltage (VAC) 250

  • Voltage Rating (Max) (VAC) 250

  • Operating Voltage (VDC) 250

  • Nominal Voltage Architecture (V) 12, 24

  • Voltage Rating (Max) (VDC) 12, 24, 48

Body Features

  • Primary Product Color  Black, Gray

Contact Features

  • Contact Current Rating (Max) (A) 25

  • Mating Pin Diameter  2.39 mm [ .094 in ]

  • Contact Size  Size 12

  • Contact Type  Pin

  • Contact Mating Area Plating Material  Tin

Mechanical Attachment

  • Mating Alignment  With, Without

  • Mounting Holes  With

  • Panel Mount Feature  With

  • Mating Retention Type  Locking Interface

  • Mating Alignment Type  Not Keyed

  • PCB Mount Retention  With

  • PCB Mount Retention Type  Mounting Screw

  • PCB Mount Alignment  With

  • Mating Retention  With

  • Connector Mounting Type  Panel Mount

Housing Features

  • Centerline (Pitch)  10.16 mm [ .4 in ]

Dimensions

  • PCB Thickness (Recommended)  .78 – 3.18 mm [ .031 – .125 in ]

  • Connector Length (mm) 26.8, 42.34

  • Connector Length (in) 1.055, 1.667

  • Profile Height from PCB (mm) 26.8, 36.5

  • Profile Height from PCB (in) 1.055, 1.437

  • Connector Width (mm) 34.93, 54.1

  • Connector Width (in) 1.375, 2.13

Usage Conditions

  • Operating Temperature Range  -55 – 125 °C [ -67 – 257 °F ]

  • Operating Temperature (Max)  125 °C [ 257 °F ]

Operation/Application

  • Shielded  No

  • Circuit Application  Power

Industry Standards

  • Degree of Protection  IP6K9K, IP68

  • UL Flammability Rating  Not tested

Packaging Features

  • Packaging Method  Box

  • Packaging Quantity  125, 384

Other

  • Interface Number  DTP04-4P

Reference Number

  • TE Internal Number CAT-D486-H342
