DEUTSCH DT Backshells
- DEUTSCH
- DEUTSCH DT

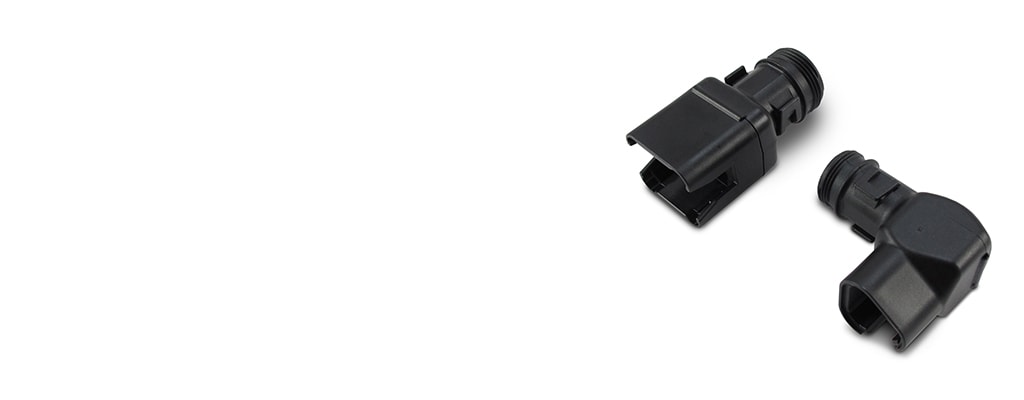

DEUTSCH DT backshells offer a high level of protection and allow convoluted tubing to nest within the rear of the backshell. Straight, 90°, and strain relief versions are available.
Product Features
-
Packaging Method : Box
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Primary Product Color : Black
-
Primary Product Material : PA GF, PA 66, PA, PA66
-
Compatible With Connector Shape : Rectangular
Overview
DEUTSCH DT backshells provide strain relief and can accommodate convoluted tubing or jacketed cable.
Additional DEUTSCH DT products
-
VIEW ALL DEUTSCH DT PRODUCTS
DEUTSCH DT connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility.
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Sealable No
-
Connector Backshell Product Type Backshell
Configuration Features
-
Number of Positions 2, 3, 4, 6, 8, 12
Body Features
-
Primary Product Color Black
-
Primary Product Material PA GF, PA 66, PA, PA66
-
Cable Exit Angle 90°, 180°
Housing Features
-
Compatible With Connector Shape Rectangular
-
Body Orientation 180
Dimensions
-
Compatible Cable Diameter Range (mm) 4.5, 6 – 10, 7.5 – 8.5, 8.5 – 13, 10 – 17, 13 – 17
-
Compatible Cable Diameter Range (in) .177, .236 – .394, .295 – .335, .335 – .511, .394 – .669, .511 – .669
Usage Conditions
-
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
-
Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
-
Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Industry Standards
-
IP Rating IP6K9K
-
UL Flammability Rating UL 94HB
Packaging Features
-
Packaging Method Box
-
Packaging Quantity 1, 200, 225, 250, 300, 350, 400, 450, 500, 750, 1000
Other
-
Serviceable Yes
Reference Number
-
TE Internal Number CAT-D487-B128
