DEUTSCH DT Headers

DEUTSCH

DEUTSCH DT

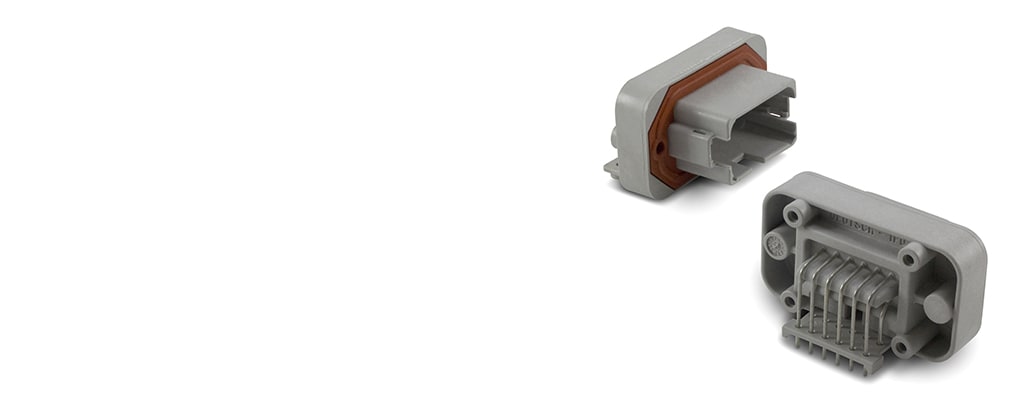

DEUTSCH DT headers are printed circuit board connectors available in 2, 3, 4, 6, 8, and 12 cavity arrangements. They are available in straight, right angle, flanged and flangeless configurations. All versions utilize and accept the DEUTSCH size 16 contacts, rated for 13 amps each.

More Less

Product Features

Packaging Method : Box, Tray
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Primary Product Color : Black, Gray, Green, Brown
IP Rating : Not Tested, IP68, IP6K9K

Available from

Product	TE Part #	Documents	PCB Connector Assembly Type	Connector System	Number of Positions	Number of Rows	Centerline (Pitch)	PCB Mount Orientation	Header Type	Contact Mating Area Plating Material	Connector & Contact Terminates To	Contact Current Rating (Max)	UL Flammability Rating	Circuit Application	Connector Mounting Type	Mating Alignment	PCB Mount Alignment	Primary Product Color	Packaging Method	EU RoHS Compliance	EU ELV Compliance
HDR, 12P, BLK, ST, 5 PSI, NI/CU, B Buy on te.com	DT15-12PB-B028	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Black	Box	-	-
HDR, 3P, BLK, SENSOR, AU/NI/CU Buy on te.com	DT15-3P-R009	Product Drawing 3D PDF	-	Wire-to-Wire	3	-	-	Vertical	-	Gold (Au)	Wire & Cable	-	UL 94V-1	Power	-	With	Without	Black	Box	-	-
HDR, 12P, GRY, RA, AU/NI/CU, A Buy on te.com	DTF13-12PA-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Gray	Box	-	-
HDR, 8P, BRN, RA, NI/CU, D	DT13-08PD	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Brown	Box	-	-
HDR, 12P, BRK, ST, AU/NI/CU, B Buy on te.com	DT15-12PB-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Black	Box	-	-
HDR, 4P, GRY, ST, AU/NI/CU Buy on te.com	DT15-4P-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	4	2	4.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 3P, BLK, RA, SN/NI/CU, J1939 Buy on te.com	DTF13-3P-1939	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	3	0	4.33 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	Black	Box	-	-
HDR, 4P, GRY, RA, AU/NI/CU Buy on te.com	DT13-4P-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	4	2	4.45 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 8P, GRY, ST, AU/NI/CU, A Buy on te.com	DT15-08PA-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 6P, GRY, RA, NI/CU	DT13-6P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	6	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 6P, GRY, ST, NI/CU	DT15-6P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	6	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	Gray	Box	-	-
HDR, 12P, GRY, ST, NI/CU, A	DT15-12PA	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 12P, GRY, RA, NI/CU, A	DT13-12PA	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 12P, GRN, RA, NI/CU, C	DT13-12PC	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Green	Box	-	-
HDR, 6P, GRY, ST, AU/NI/CU	DT15-6P-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	6	2	1.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 8P, GRN, RA, NI/CU, C Buy on te.com	DT13-08PC	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Green	Box	-	-
HDR, 12P, GRY, RA, AU/NI/CU, A Buy on te.com	DT13-12PA-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 2P, GRY, RA, NI/CU	DT13-2P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	2	1	5.46 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 36P, BLK, RA EEC, NI/CU, ABC	DT13-36PABC-R015	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	36	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	Not tested	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 48P, BLK, RA EEC, AU/NI/CU, ABCD	DT13-48PABCD-GR02	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	48	2	1.45 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	Not tested	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 12P, GRY, ST, ENH KEY, NI/CU, A	DT15-12PA-B016	3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 12P, GRN, ST, AU/NI/CU, C Buy on te.com	DT15-12PC-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Green	Box	-	-
HDR, 12P, BRN, ST, AU/NI/CU, D	DT15-12PD-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Brown	Box	-	-
HDR, 2P, GRY, ST, NI/CU	DT15-2P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	2	1	5.46 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 12P, BRN, RA, SN/NI/CU, D Buy on te.com	DTF13-12PD	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Brown	Box	-	-
HDR, 3P, BLK, RA, SN/NI/CU	DTF13-3P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	3	0	4.33 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	Black	Box	-	-
HDR, 6P, BLK, RA, SN/NI/CU Buy on te.com	DTF13-6P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	6	2	4.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	Black	Box	-	-
HDR, 12P, GRY, ST, SN/NI/CU, A Buy on te.com	DTF15-12PA	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Gray	Box	-	-
HDR, 12P, GRY, ST, AU/NI/CU, A Buy on te.com	DTF15-12PA-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Gray	Box	-	-
HDR, 12P, BLK, ST, AU/NI/CU, B	DTF15-12PB-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 12P, BRN, ST, SN/NI/CU, D Buy on te.com	DTF15-12PD	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Brown	Box	-	-
HDR, 8P, GRY, RA, NI/CU, A	DT13-08PA	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Gray	Box	-	-
HDR, 8P, BLK, RA, AU/NI/CU, B	DT13-08PB-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Black	Box	-	-
HDR, 12P, GRY, RA, ENH KEY, NI/CU, A	DT13-12PA-B016	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 12P, BLK, RA EEC, NI/CU, A Buy on te.com	DT13-12PA-R015	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	Not tested	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 12P, BLK, RA, NI/CU, B	DT13-12PB	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Black	Box	-	-
HDR, 12P, BLK, RA, ENH KEY, NI/CU, B	DT13-12PB-B016	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Black	Box	-	-
HDR, 12P, BLK, RA, AU/NI/CU, B Buy on te.com	DT13-12PB-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Black	Box	-	-
HDR, 12P, GRN, RA, ENH KEY, NI/CU, C	DT13-12PC-B016	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Green	Box	-	-
HDR, 12P, BRN, RA, NI/CU, D	DT13-12PD	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Brown	Box	-	-
HDR, 12P, BRN, RA, ENH KEY, NI/CU, D	DT13-12PD-B016	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Brown	Box	-	-
HDR, 24P, BLK, RA EEC, NI/CU, AB	DT13-24PAB-R015	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	24	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	Not tested	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 36P, BLK, RA EEC, AU/NI/CU, ABC	DT13-36PABC-GR02	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	36	2	1.45 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	Not tested	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 48P, BLK, RA EEC, NI/CU, ABCD	DT13-48PABCD-R015	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	48	2	1.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	Not tested	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 4P, GRY, RA, NI/CU	DT13-4P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	4	2	4.45 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 6P, GRY, RA, AU/NI/CU Buy on te.com	DT13-6P-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	6	2	1.45 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 8P, GRY, ST, NI/CU, A	DT15-08PA	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Gray	Box	-	-
HDR, 8P, BLK, ST, NI/CU, B Buy on te.com	DT15-08PB	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 8P, GRN, ST, NI/CU, C Buy on te.com	DT15-08PC	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Green	Box	-	-
HDR, 8P, BRN, ST, NI/CU, D Buy on te.com	DT15-08PD	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Brown	Box	-	-
HDR, 12P, GRY, ST, 5 PSI, NI/CU, A	DT15-12PA-B028	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 12P, GRY, ST, AU/NI/CU, A	DT15-12PA-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Gray	Box	-	-
HDR, 12P, BLK, ST, NI/CU, B	DT15-12PB	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Black	Box	-	-
HDR, 12P, BLK, ST, ENH KEY, NI/CU, B	DT15-12PB-B016	3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Black	Box	-	-
HDR, 12P, GRN, ST, NI/CU, C	DT15-12PC	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Green	Box	-	-
HDR, 12P, GRN, ST, ENH KEY, NI/CU, C	DT15-12PC-B016	3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Green	Box	-	-
HDR, 12P, BRN, ST, NI/CU, D	DT15-12PD	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Brown	Box	-	-
HDR, 12P, BRN, ST, ENH KEY, NI/CU, D	DT15-12PD-B016	3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	Brown	Box	-	-
HDR, 4P, GRY, ST, NI/CU	DT15-4P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	4	2	4.45 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 6P, GRY, ST, 5 PSI, AU/NI/CU Buy on te.com	DT15-6P-GP01	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	6	2	1.45 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 12P, BLK, RA, SN/NI/CU, B Buy on te.com	DTF13-12PB	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 12P, GRN, RA, SN/NI/CU, C Buy on te.com	DTF13-12PC	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Green	Box	-	-
HDR, 2P, BLK, RA, SN/NI/CU	DTF13-2P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	2	1	5.46 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	Black	Box	-	-
HDR, 4P, BLK, RA, SN/NI/CU	DTF13-4P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	4	2	9.12 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	Black	Box	-	-
HDR, 4P, GRY, RA, AU/NI/CU	DTF13-4P-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	4	2	9.12 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	Black	Box	-	-
HDR, 6P, BLK, RA, AU/NI/CU	DTF13-6P-G003	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	6	2	4.45 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	Black	Box	-	-
HDR, 12P, GRN, ST, SN/NI/CU, C	DTF15-12PC	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Green	Box	-	-
HDR, 2P, GRY, ST, 5 PSI, NI/CU	DT15-2P-P010	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	2	1	5.46 mm	Vertical	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	Gray	Box	-	-
HDR, 9P, BLK, N, ST, SN/NI. 16	HD10-9-96P-N005	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	9	-	-	Vertical	Fully Shrouded	Tin (Sn)	Printed Circuit Board	13 A	UL 94V-0	Power	Board Mount	With	Without	Black	Tray	-	-
HDR, 4P, BLK, ST, SN/NI/CU	DTP15-4P	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	4	2	10.16 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	25 A	Not tested	Power	Panel Mount	Without	With	Black	Box	-	-
HDR, 8P, BLK, RA, NI/CU, B Buy on te.com	DT13-08PB	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	8	2	5.46 mm	Right Angle	Fully Shrouded	Nickel	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Black	Box	-	-
HDR, 12P, GRY, RA, SN/NI/CU, A	DTF13-12PA	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Gray	Box	-	-
HDR, 12P, BLK, ST, SN/NI/CU, B	DTF15-12PB	Product Drawing 3D PDF	PCB Mount Header	Wire-to-Board	12	2	1.45 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	Black	Box	-	-

Overview

DEUTSCH DT headers are available in multiple keying options.

DEUTSCH DT Connectors Overview

Accepts contact size 16 (13 amps)
14-20 AWG (2.50-0.50 mm²)
2, 3, 4, 6, 8, and 12 cavity arrangements
In-line, flange, or PCB mount
Rectangular, thermoplastic housing
Integrated latch for mating
Wedgelocks confirm contact alignment and retention
Available accessories: Backshells, boots, dust caps, gaskets, mounting clips

Additional DEUTSCH DT products

VIEW ALL DEUTSCH DT PRODUCTS
DEUTSCH DT connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility.

FAQ

Frequently Asked Questions

Q: What is a DT connector?

A: DEUTSCH DT environmentally sealed connectors are designed for cable to cable, cable to board, and cable to device applications. DT connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for DT connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector System Wire-to-Board, Wire-to-Wire
Sealable Yes
Connector & Contact Terminates To Wire & Cable, Printed Circuit Board
Connector Shape Rectangular, Triangular
Mixed & Hybrid Header No
Header Type Fully Shrouded
PCB Connector Assembly Type PCB Mount Header

Configuration Features

Number of Sections 1, 2, 4
Connector Modification PCB Enclosure Header, 5 P.S.I.
Number of Positions 2, 3, 4, 6, 8, 9, 12, 24, 36, 48
Number of Rows 0, 1, 2
Number of Signal Positions 0, 2, 3, 4, 6, 8, 9, 12, 24, 36, 48
PCB Mount Orientation Right Angle, Vertical

Electrical Characteristics

Operating Voltage (VAC) 250
Voltage Rating (Max) (VAC) 250
Operating Voltage (VDC) 250
Nominal Voltage Architecture (V) 12, 24
Voltage Rating (Max) (VDC) 12, 24, 48, 250

Body Features

Primary Product Color Black, Gray, Green, Brown
Connector & Keying Code ABC, A, B, C, AB, ABCD, D

Contact Features

Contact Current Rating (Max) (A) 13, 25
Mating Pin Diameter (mm) 1.59, 1.6, 2.39
Mating Pin Diameter (in) .063, .094
Contact Size Size 16, Size 12
Contact Type Pin
PCB Contact Termination Area Plating Material Tin
Contact Mating Area Plating Material Gold (Au), Tin (Sn), Nickel, Gold, Tin

Mechanical Attachment

Mating Alignment With, Without
Mounting Holes With
Panel Mount Feature Without, With
Mating Retention Type Locking Interface
Mating Alignment Type Keyed, Not Keyed, Guide Slot
PCB Mount Retention With
PCB Mount Retention Type Mounting Screw
PCB Mount Alignment Without, With
Mating Retention With
Connector Mounting Type Board Mount, Panel Mount

Housing Features

Centerline (Pitch) (mm) 1.45, 4.33, 4.45, 5.46, 9.12, 10.16
Centerline (Pitch) (in) .171, .175, .215, .359, .4

Dimensions

PCB Thickness (Recommended) (mm) .78 – 2.36, .78 – 3.18
PCB Thickness (Recommended) (in) .031 – .093, .031 – .125
Connector Length (mm) 26.04, 29.59, 30.24, 33.46, 34.09, 34.29, 34.98, 36.07, 38.1, 38.96, 39.24, 39.5, 58.37
Connector Length (in) 1.025, 1.165, 1.191, 1.318, 1.342, 1.35, 1.377, 1.42, 1.5, 1.534, 1.545, 1.555, 2.298
Profile Height from PCB (mm) 19.3, 22.35, 23.01, 23.52, 26.13, 27.43, 32.1, 34.09, 34.98, 35.26, 35.48, 53.25
Profile Height from PCB (in) .76, .88, .906, .926, 1.029, 1.08, 1.26, 1.342, 1.377, 1.388, 1.397, 2.097
Connector Width (mm) 23.52, 25.76, 27.18, 35.31, 35.66, 38.1, 38.35, 41.58, 42.8, 43.94, 54.1, 55.12, 59.21, 142.74
Connector Width (in) .926, 1.01, 1.014, 1.07, 1.39, 1.5, 1.51, 1.637, 1.685, 1.73, 2.13, 2.17, 2.331, 5.62

Usage Conditions

Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
Operating Temperature (Max) 125 °C [ 257 °F ]

Operation/Application

Shielded No
Circuit Application Power & Signal, Power

Industry Standards

IP Rating Not Tested, IP68, IP6K9K
UL Rating None, Recognized
UL Flammability Rating Not tested, UL 94V-0, UL 94V-1

Packaging Features

Packaging Method Box, Tray
Packaging Quantity 1, 24, 48, 100, 125, 200, 210, 280, 728

Other

Interface Number DT04-12PA-B016, DT04-6P, DT04-08PA, DT04-12PD, DT04-12PC-B016, DT04-12PA, DT04-08PB, DT04-3P, DT15-3P-R009, DT04-2P, DT04-08PC, DT04-4P, DT04-12PB, DTP04-4P, DT04-08PD, DT04-12PC, DT04-12PB-B016, DT04-12PD-B016

Reference Number

TE Internal Number CAT-D487-H342

Related Materials

Flipbook Catalog

Industrial & Commercial Transportation - Terminals and Connectors (English) TE's Industrial & Commercial Transportation Terminals and Connectors flipbook catalog features AMPSEAL, AMPSEAL 16, Circular DIN, DEUTSCH, HDSCS, LEAVYSEAL, and Superseal 1.0 connectors, contacts, tools, and accessories.

Brochure

DEUTSCH DT Header Connectors (English) TE Connectivity offers DEUTSCH DT connectors for circuit board applications including flange and flangeless options. Pins are offered in configurations for straight or 90° bend in gold/tin or nickel/tin plating. English

Product Specifications

DEUTSCH DT Connectors Product Specifications (English) This specification covers performance tests and quality requirements for DEUTSCH DT connectors.

Test Specifications

DEUTSCH DT Connectors Test Specifications (English) This report summarizes the results of in-house qualification testing of DEUTSCH DT electrical connectors.

Connector Selector

Connector Selector (English) The Connector Selector is a reference guide to TE Connectivity's (TE) Industrial & Commercial Transportation electrical connectors.

DEUTSCH, TE Connectivity, and TE connectivity (logo) are trademarks.

DEUTSCH DT Headers

Product Features

Packaging Method : Box, Tray

Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

Primary Product Color : Black, Gray, Green, Brown

IP Rating : Not Tested, IP68, IP6K9K

DEUTSCH DT Connectors Overview

Additional DEUTSCH DT products

Frequently Asked Questions

Product Type Features

Connector System Wire-to-Board, Wire-to-Wire

Sealable Yes

Connector & Contact Terminates To Wire & Cable, Printed Circuit Board

Connector Shape Rectangular, Triangular

Mixed & Hybrid Header No

Header Type Fully Shrouded

PCB Connector Assembly Type PCB Mount Header

Configuration Features

Number of Sections 1, 2, 4

Connector Modification PCB Enclosure Header, 5 P.S.I.

Number of Positions 2, 3, 4, 6, 8, 9, 12, 24, 36, 48

Number of Rows 0, 1, 2

Number of Signal Positions 0, 2, 3, 4, 6, 8, 9, 12, 24, 36, 48

PCB Mount Orientation Right Angle, Vertical

Electrical Characteristics

Operating Voltage (VAC) 250

Voltage Rating (Max) (VAC) 250

Operating Voltage (VDC) 250

Nominal Voltage Architecture (V) 12, 24

Voltage Rating (Max) (VDC) 12, 24, 48, 250

Body Features

Primary Product Color Black, Gray, Green, Brown

Connector & Keying Code ABC, A, B, C, AB, ABCD, D

Contact Features

Contact Current Rating (Max) (A) 13, 25

Mating Pin Diameter (mm) 1.59, 1.6, 2.39

Mating Pin Diameter (in) .063, .094

Contact Size Size 16, Size 12

Contact Type Pin

PCB Contact Termination Area Plating Material Tin

Contact Mating Area Plating Material Gold (Au), Tin (Sn), Nickel, Gold, Tin

Mechanical Attachment

Mating Alignment With, Without

Mounting Holes With

Panel Mount Feature Without, With

Mating Retention Type Locking Interface

Mating Alignment Type Keyed, Not Keyed, Guide Slot

PCB Mount Retention With

PCB Mount Retention Type Mounting Screw

PCB Mount Alignment Without, With

Mating Retention With

Connector Mounting Type Board Mount, Panel Mount

Housing Features

Centerline (Pitch) (mm) 1.45, 4.33, 4.45, 5.46, 9.12, 10.16

Centerline (Pitch) (in) .171, .175, .215, .359, .4

Dimensions

PCB Thickness (Recommended) (mm) .78 – 2.36, .78 – 3.18

PCB Thickness (Recommended) (in) .031 – .093, .031 – .125

Connector Length (mm) 26.04, 29.59, 30.24, 33.46, 34.09, 34.29, 34.98, 36.07, 38.1, 38.96, 39.24, 39.5, 58.37

Connector Length (in) 1.025, 1.165, 1.191, 1.318, 1.342, 1.35, 1.377, 1.42, 1.5, 1.534, 1.545, 1.555, 2.298

Profile Height from PCB (mm) 19.3, 22.35, 23.01, 23.52, 26.13, 27.43, 32.1, 34.09, 34.98, 35.26, 35.48, 53.25

Profile Height from PCB (in) .76, .88, .906, .926, 1.029, 1.08, 1.26, 1.342, 1.377, 1.388, 1.397, 2.097

Connector Width (mm) 23.52, 25.76, 27.18, 35.31, 35.66, 38.1, 38.35, 41.58, 42.8, 43.94, 54.1, 55.12, 59.21, 142.74

Connector Width (in) .926, 1.01, 1.014, 1.07, 1.39, 1.5, 1.51, 1.637, 1.685, 1.73, 2.13, 2.17, 2.331, 5.62

Usage Conditions

Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operating Temperature (Max) 125 °C [ 257 °F ]

Operation/Application

Shielded No

Circuit Application Power & Signal, Power

Industry Standards

IP Rating Not Tested, IP68, IP6K9K

UL Rating None, Recognized

UL Flammability Rating Not tested, UL 94V-0, UL 94V-1

Packaging Features

Packaging Method Box, Tray

Packaging Quantity 1, 24, 48, 100, 125, 200, 210, 280, 728

Other

Interface Number DT04-12PA-B016, DT04-6P, DT04-08PA, DT04-12PD, DT04-12PC-B016, DT04-12PA, DT04-08PB, DT04-3P, DT15-3P-R009, DT04-2P, DT04-08PC, DT04-4P, DT04-12PB, DTP04-4P, DT04-08PD, DT04-12PC, DT04-12PB-B016, DT04-12PD-B016

Reference Number
