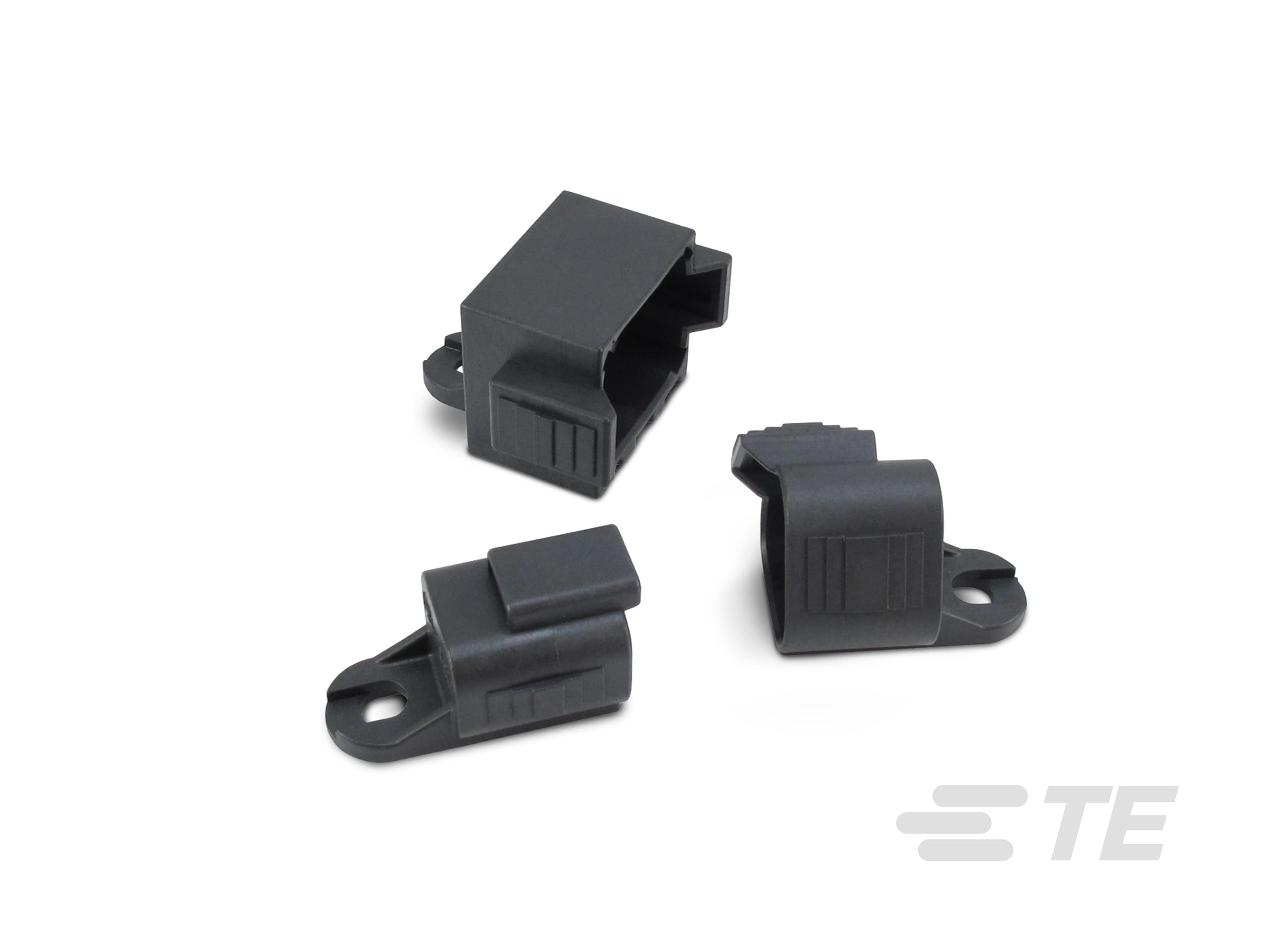

Dust Caps — DEUTSCH DT
- DEUTSCH
- DEUTSCH DT
The DT dust caps are designed to provide protection for the connector interface when the two halves are not mated. Plastisol or thermoplastic dust caps are available for several DEUTSCH DT connector configurations.
Product Features
-
Protection & Strain Relief Accessory Type : Dust Cap, Protective Cover
-
Strain Relief : Without
-
Primary Product Color : Black, Gray
-
Primary Product Material : PVC, PA GF
-
Number of Positions : 6, 8, 12, 2, 4, 3
Overview
DEUTSCH DT dust caps provide temporary protection from dirt, dust, and paint overspray.
Additional DEUTSCH DT products
-
VIEW ALL DEUTSCH DT PRODUCTS
DEUTSCH DT connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility.
Features
Please review product documents or contact us for the latest agency approval information.
Other
-
Serviceable Yes
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Usage Conditions
-
Compatible With Connector Style Receptacle, Plug
-
Operating Temperature (Max) (°C) 125, 100
-
Operating Temperature (Max) (°F) 257, 212
-
Operating Temperature Range (°C) -29 – 100, -55 – 125
-
Operating Temperature Range (°F) -20 – 212, -67 – 257
Packaging Features
-
Packaging Method Box
Product Type Features
-
Sealable Yes, No
-
Protection & Strain Relief Accessory Type Dust Cap, Protective Cover
Industry Standards
-
UL Flammability Rating UL 94V-0
-
IP Rating IP6K9K, Not Tested
Mechanical Attachment
-
Strain Relief Without
Body Features
-
Primary Product Color Black, Gray
-
Primary Product Material PVC, PA GF
Configuration Features
-
Number of Positions 6, 8, 12, 2, 4, 3
Reference Number
-
TE Internal Number CAT-D487-P729
