Configuration Features
-
Number of Rows
2
-
PCB Mount Orientation
Vertical
-
Number of Positions
16, 14, 20, 18, 8, 28
Packaging Features
-
Packaging Method
Box & Tube, Tube
-
Tubes per Box
2
-
Packaging Quantity
60, 30, 34, 26, 24, 17
Operation/Application
-
Circuit Application
Signal
Contact Features
-
Contact Type
Pin
-
Mating Contact Type
Dual Leaf
-
Contact Base Material
Phosphor Bronze
-
PCB Contact Termination Area Plating Material
Tin
-

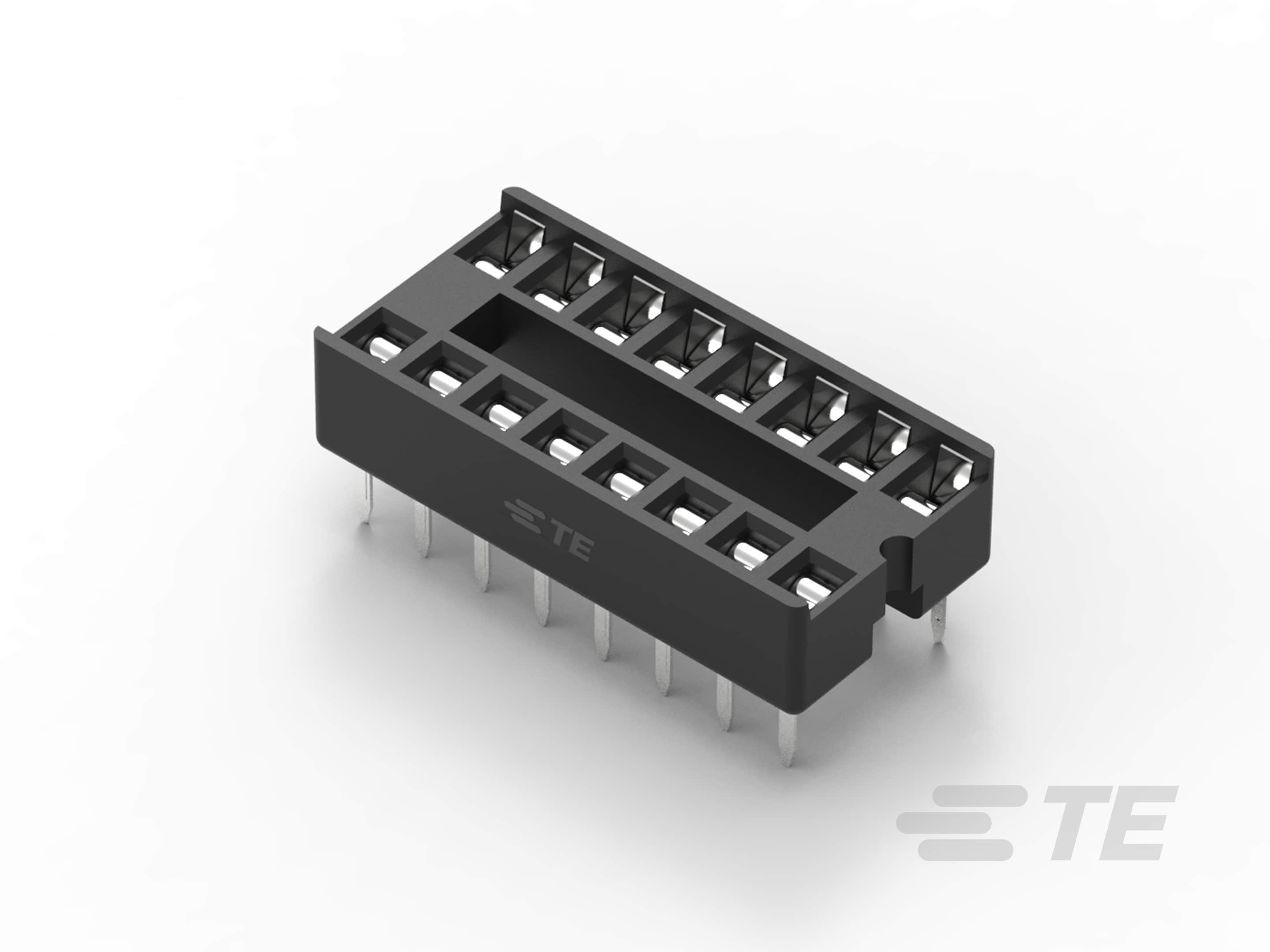

IC Socket Type
DIP
-
Contact Fabrication
Stamped & Formed
-
Contact Mating Area Plating Material
Tin
-
Contact Mating Area Plating Material Thickness (µin)
60
-
Contact Current Rating (Max) (A)
1
Mechanical Attachment
-
Connector Mounting Type
Board Mount
-
Mating Alignment Type
Polarization
-
Mating Alignment
With
Dimensions
-
Product Length (mm)
10.16, 22.86, 2.54, 35.56, 17.78, 20.32
-
Product Length (in)
.9, 1.4, .1, .4, .7, .8
-
Profile Height from PCB
5.1 mm [ .2 in ]
-
Row-to-Row Spacing
7.62 mm [ .3 in ]
Termination Features
-
Termination Method to PCB
Through Hole - Solder
-
Termination Post & Tail Length (in)
3
Housing Features
-
Housing Material
PBT GF30
-
Centerline (Pitch)
2.54 mm [ .1 in ]
-
Housing Color
Black
Other
-
Quantity per Tube
6000, 2600, 3000, 1700, 3400, 2400
-
EU RoHS Compliance
Compliant
-
EU ELV Compliance
Compliant
Body Features
-
Sleeve Material
Brass/Copper
-
Sleeve Plating Material
Tin/Lead
-
Frame Style
Ladder
-
Connector Profile
Low
Industry Standards
-
UL Flammability Rating
UL 94V-0
Electrical Characteristics
-
Contact Resistance (mΩ)
20
-
Insulation Resistance (MΩ)
1000
Product Type Features
-
Connector & Contact Terminates To
Printed Circuit Board
-
Leg Style
Through Hole
Usage Conditions
-
Operating Temperature Range
-40 – 105 °C [ -40 – 221 °F ]
Reference Number
-
TE Internal Number
CAT-D625-L52
