DEUTSCH DRB

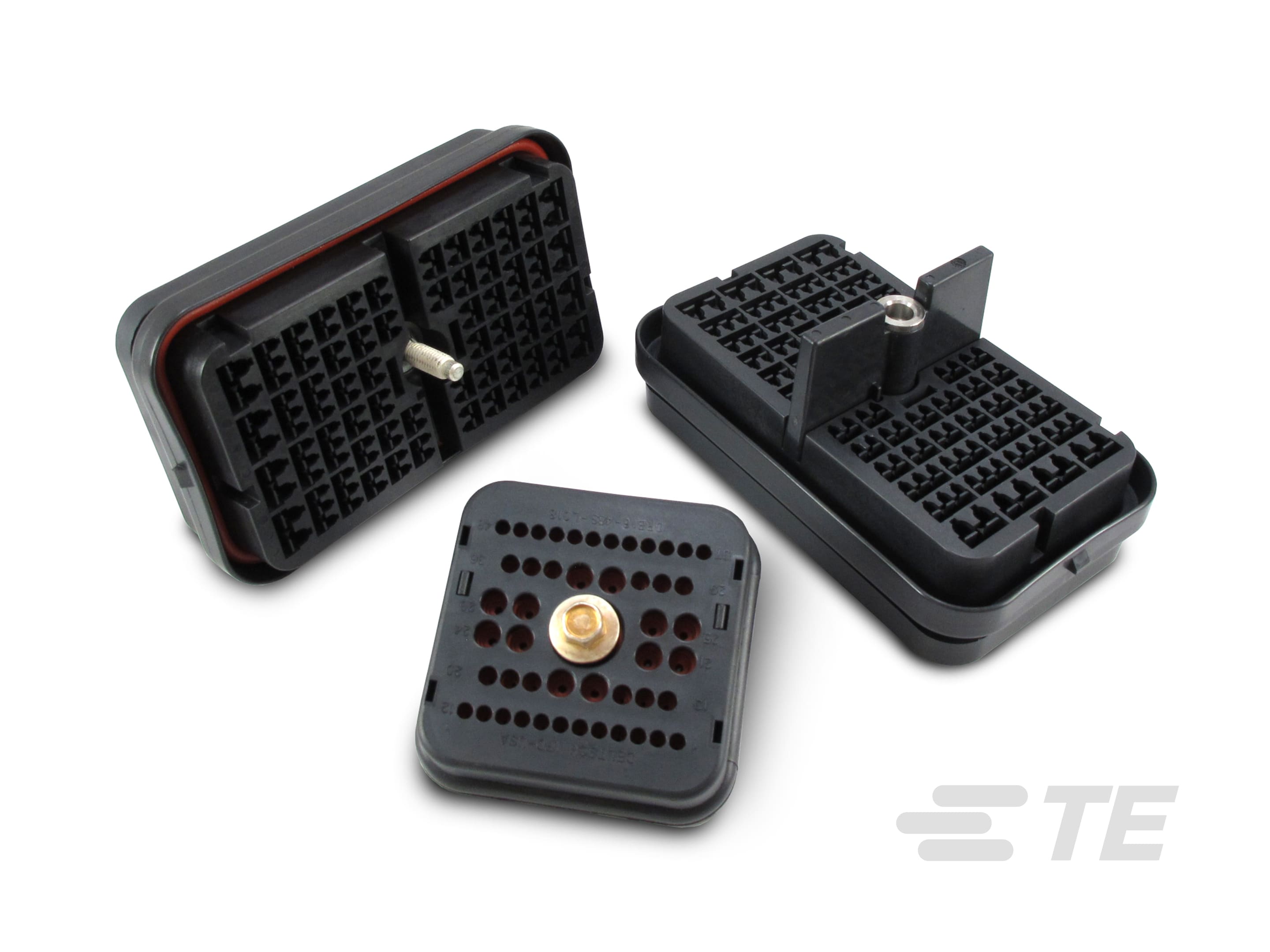

DEUTSCH DRB housings are heavy duty connectors suitable for bulkhead applications and feature high pin counts from 48 to 128 cavities. The DRB has a jackscrew for mating and accepts DEUTSCH contact sizes 4-20 (100-7.5 amps).

More Less

Product Features

Number of Positions : 60, 128, 48, 102
Connector & Housing Type : Housing for Male Terminals, Housing for Female Terminals
Mating Pin Diameter (mm): 1.02, 5.72, 2.39, 3.61, 1.59
Mating Pin Diameter (in): .04, .225, .063, .094, .142
Connector System : Wire-to-Wire
Centerline (Pitch) (mm): 4.45, 22.5, 3.81, 4.7, 6.71
Centerline (Pitch) (in): .175, .185, .15, .264, .886

Available from

Product	TE Part #	Documents	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Sealable	Mating Pin Diameter	Number of Rows	Contact Current Rating (Max)	Connector & Keying Code
REC, 48P, BLK, E, CAP, B Buy on te.com	DRB12-48PBE-L018	Product Drawing 3D PDF	48	Housing for Male Terminals	4.7 mm, 3.81 mm, 6.71 mm	Yes	2.39 mm, 1.02 mm, 1.59 mm	6	25 A, 13 A, 7.5 A	B
REC, 128P, BLK, E, CAP, B Buy on te.com	DRB12-128PBE-L018	Product Drawing 3D PDF	128	Housing for Male Terminals	4.45 mm, 6.71 mm	Yes	2.39 mm, 1.59 mm	12	25 A, 13 A	B
PLG, 102P, BLK, E, CAP, B Buy on te.com	DRB16-102SBE-L018	Product Drawing 3D PDF	102	Housing for Female Terminals	22.5 mm, 4.45 mm, 6.71 mm	Yes	2.39 mm, 3.61 mm, 5.72 mm, 1.59 mm	12	100 A, 25 A, 13 A, 60 A	B
REC, 128P, BLK, NON-ENV, CAP, B Buy on te.com	DRB12-128PBNE-L018	Product Drawing 3D PDF	128	Housing for Male Terminals	4.45 mm, 6.71 mm	No	2.39 mm, 1.59 mm	12	25 A, 13 A	B
PLG, 48P, BLK, E, CAP, A Buy on te.com	DRB16-48SAE-L018	Product Drawing 3D PDF	48	Housing for Female Terminals	4.7 mm, 3.81 mm, 6.71 mm	Yes	2.39 mm, 1.02 mm, 1.59 mm	6	25 A, 13 A, 7.5 A	A
REC, 128P, BLK, NON-ENV, CAP, A Buy on te.com	DRB12-128PANE-L018	Product Drawing 3D PDF	128	Housing for Male Terminals	4.45 mm, 6.71 mm	No	2.39 mm, 1.59 mm	12	25 A, 13 A	A
REC, 60P, BLK, E, CAP, A	DRB12-60PAE-L018	Product Drawing 3D PDF	60	Housing for Male Terminals	4.45 mm, 3.81 mm	Yes	1.02 mm, 1.59 mm	6	13 A, 7.5 A	A
PLG, 102P, BLK, E, CAP, A Buy on te.com	DRB16-102SAE-L018	Product Drawing 3D PDF	102	Housing for Female Terminals	22.5 mm, 4.45 mm, 6.71 mm	Yes	2.39 mm, 3.61 mm, 5.72 mm, 1.59 mm	12	100 A, 25 A, 13 A, 60 A	A
PLG, 128P, BLK, E, CAP, A Buy on te.com	DRB16-128SAE-L018	Product Drawing 3D PDF	128	Housing for Female Terminals	4.45 mm, 6.71 mm	Yes	2.39 mm, 1.59 mm	12	25 A, 13 A	A
REC, 48P, BLK, E, CAP, A Buy on te.com	DRB12-48PAE-L018	Product Drawing 3D PDF	48	Housing for Male Terminals	4.7 mm, 3.81 mm, 6.71 mm	Yes	2.39 mm, 1.02 mm, 1.59 mm	6	25 A, 13 A, 7.5 A	A
REC, 60P, BLK, NON-ENV, A	DRB12-60PANE	Product Drawing 3D PDF	60	Housing for Male Terminals	4.45 mm, 3.81 mm	No	1.02 mm, 1.59 mm	6	13 A, 7.5 A	A
PLG, 128P, BLK, E, CAP, B Buy on te.com	DRB16-128SBE-L018	Product Drawing 3D PDF	128	Housing for Female Terminals	4.45 mm, 6.71 mm	Yes	2.39 mm, 1.59 mm	12	25 A, 13 A	B
REC, 128P, BLK, E, CAP, A Buy on te.com	DRB12-128PAE-L018	Product Drawing 3D PDF	128	Housing for Male Terminals	4.45 mm, 6.71 mm	Yes	2.39 mm, 1.59 mm	12	25 A, 13 A	A
PLG, 60P, BLK, E, CAP, B Buy on te.com	DRB16-60SBE-L018	Product Drawing 3D PDF	60	Housing for Female Terminals	4.45 mm, 3.81 mm	Yes	1.02 mm, 1.59 mm	6	13 A, 7.5 A	B
REC, 102P, BLK, NON-ENV, A Buy on te.com	DRB12-102PANE	Product Drawing 3D PDF	102	Housing for Male Terminals	22.5 mm, 4.45 mm, 6.71 mm	No	2.39 mm, 3.61 mm, 5.72 mm, 1.59 mm	12	100 A, 25 A, 13 A, 60 A	A
REC, 60P, BLK, E, CAP, B Buy on te.com	DRB12-60PBE-L018	Product Drawing 3D PDF	60	Housing for Male Terminals	4.45 mm, 3.81 mm	Yes	1.02 mm, 1.59 mm	6	13 A, 7.5 A	B
PLG, 48P, BLK, E, CAP, B Buy on te.com	DRB16-48SBE-L018	Product Drawing 3D PDF	48	Housing for Female Terminals	4.7 mm, 3.81 mm, 6.71 mm	Yes	2.39 mm, 1.02 mm, 1.59 mm	6	25 A, 13 A, 7.5 A	B
REC, 102P, BLK, E, CAP, A Buy on te.com	DRB12-102PAE-L018	Product Drawing 3D PDF	102	Housing for Male Terminals	22.5 mm, 4.45 mm, 6.71 mm	Yes	2.39 mm, 3.61 mm, 5.72 mm, 1.59 mm	12	100 A, 25 A, 13 A, 60 A	A
PLG, 60P, BLK, E, CAP, A Buy on te.com	DRB16-60SAE-L018	Product Drawing 3D PDF	60	Housing for Female Terminals	4.45 mm, 3.81 mm	Yes	1.02 mm, 1.59 mm	6	13 A, 7.5 A	A

Overview

DEUTSCH DRB housings are available in 4 keying options.

Series Overview

Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
6-22 AWG (16.00-0.35 mm²)
48, 60, 102, and 128 cavity arrangements
Flange mount
Rectangular, thermoplastic housing
Jackscrew for mating
Wedgelocks confirm contact alignment and retention

Additional DEUTSCH DRB products

VIEW ALL DEUTSCH DRB PRODUCTS
DEUTSCH DRB connectors are heavy-duty connectors designed for bulkhead applications.

FAQ

Frequently Asked Questions

Q: What is a DRB connector?

A: DEUTSCH DRB environmentally sealed connectors are designed for cable to cable applications. DRB connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for DRB connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Other

Serviceable Yes
Connector Position Assurance Capable No
EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Packaging Features

Packaging Method Box
Packaging Quantity 36, 72

Body Features

Cable Exit Angle 180°
Primary Product Color Black
Connector & Keying Code A, B

Electrical Characteristics

Operating Voltage (VDC) 250
Operating Voltage (VAC) 250
Nominal Voltage Architecture (V) 250

Contact Features

Contact Type Socket, Pin
Contact Size Size 8, Size 12, Size 20, Size 4, Size 16
Mating Pin Diameter (mm) 1.02, 5.72, 2.39, 3.61, 1.59
Mating Pin Diameter (in) .04, .225, .063, .094, .142
Contact Current Rating (Max) (A) 7.5, 60, 13, 25, 100

Dimensions

Connector Height (mm) 75.34, 66.19, 62.64
Connector Height (in) 2.606, 2.466, 2.966
Row-to-Row Spacing (mm) 7.62, 4.83, 8.63, 8.2, 7.77, .64, 3.81, 8.41, 6.6, 7.57, 6.99, 8.61
Row-to-Row Spacing (in) .298, .306, .19, .3, .323, .26, .34, .339, .275, .025, .15, .331
Product Length (mm) 35.71, 45.16, 50.22, 58.19, 44.4, 52.76, 54.38
Product Length (in) 2.077, 2.291, 1.778, 1.977, 1.748, 1.406, 2.141
Compatible Insulation Diameter Range (mm) 3.43 – 5.59, 6.63 – 7.42, 1.02 – 2.41, 2.46 – 4.01, 1.35 – 3.05
Compatible Insulation Diameter Range (in) .135 – .22, .053 – .12, .097 – .158, .04 – .095, .261 – .292
Product Width (mm) 66.19, 125.76, 125.75
Product Width (in) 4.951, 2.606

Housing Features

Housing Material PA GF
Centerline (Pitch) (mm) 4.45, 22.5, 3.81, 4.7, 6.71
Centerline (Pitch) (in) .175, .185, .15, .264, .886

Configuration Features

Connector Seal Code E Seal
Connector Modification Wire Router
Blank Cavity Position 0
Number of Positions 60, 128, 48, 102
Number of Rows 6, 12

Product Type Features

Connector Shape Rectangular
Mixed & Hybrid Connector Yes
Connector & Housing Type Housing for Male Terminals, Housing for Female Terminals
Connector System Wire-to-Wire
Sealable Yes, No
Primary Locking Feature Integrated in Housing
Connector & Contact Terminates To Wire & Cable

Mechanical Attachment

Terminal Position Assurance Yes, No
Mating Alignment Type Keyed
Strain Relief With
Mating Alignment With
Connector Mounting Type Cable Mount (Free-Hanging)

Industry Standards

Compatible With Agency/Standards Products SAE J2030
IP Rating IP6K9K, IP68

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Circuit Application Power

Reference Number

TE Internal Number CAT-D781-CH8172

Related Materials
