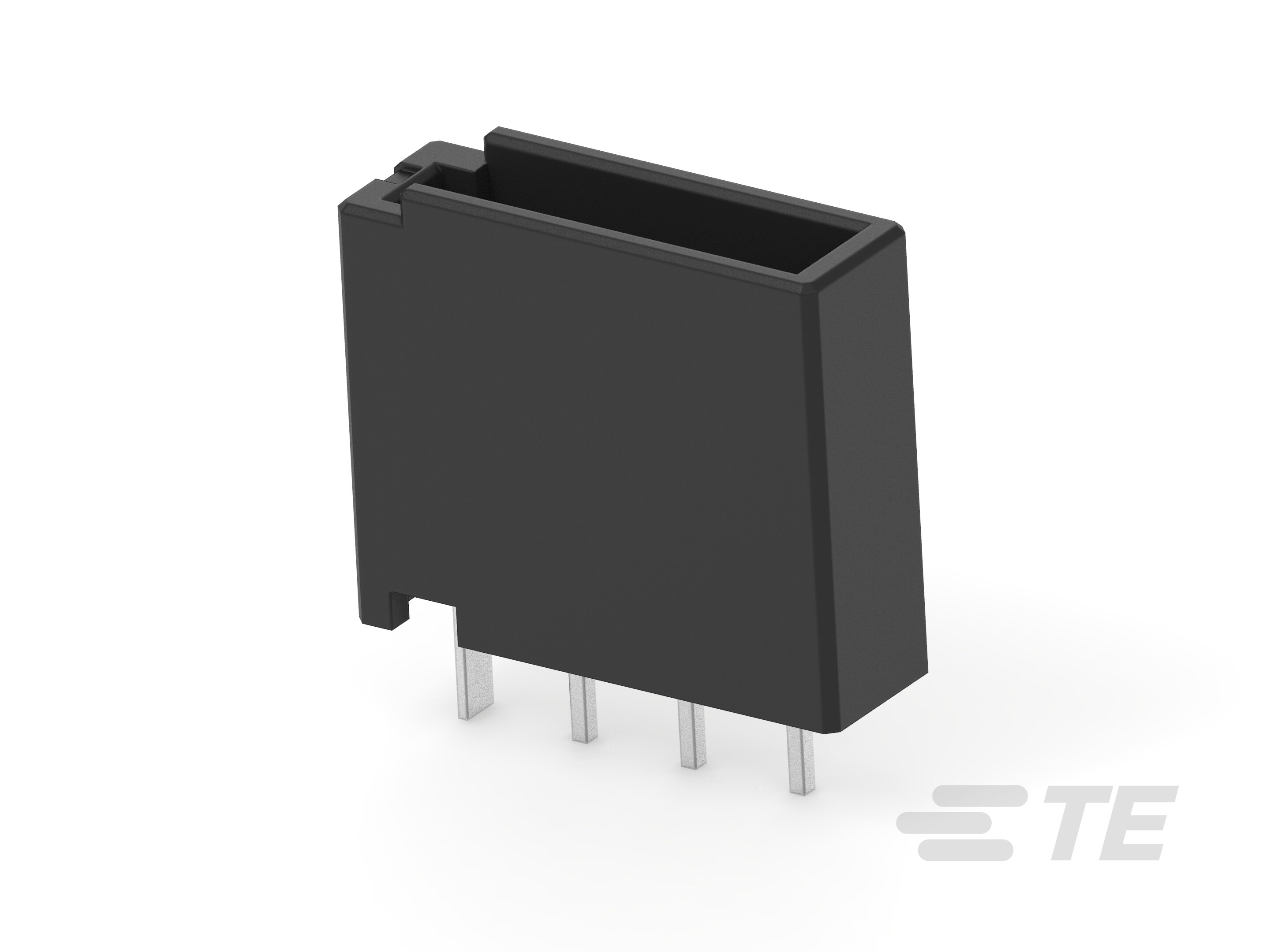

Header Assembly: Wire-to-Board, 5A, Gold Plated

Header Assembly: Wire-to-Board, 5A, Gold Plated-CAT-D9934-A15G
The Dynamic 1500 Header is designed with a 3.5 mm pitch with multiple positions, available with gold or tin plating. It carries a 5A current rating and 250V. It is used for signal circuit application. UL 94 V-0 Flammability Rating.
More Less

Product Features

  • PCB Connector Assembly Type : PCB Mount Header

  • PCB Mount Orientation : Vertical, Horizontal

  • Connector System : Wire-to-Board

  • Number of Positions : 6, 12, 9, 3

  • Number of Rows : 3

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Contact Features

  • Contact Underplating Material Thickness  1.27 µm [ 50 µin ]

  • Contact Mating Area Plating Material Thickness  .38 µm [ 15 µin ]

  • PCB Contact Termination Area Plating Material Thickness  2 µm [ 78.74 µin ]

  • Contact Base Material  Copper Alloy

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Underplating Material  Nickel

  • Contact Mating Area Plating Material  Gold

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 5

Housing Features

  • Housing Material  Glass-Filled Thermoplastic Polyester, Polyester GF

  • Centerline (Pitch)  3.5 mm [ .137 in ]

Mechanical Attachment

  • Mating Alignment Type  Keyed

  • PCB Mount Retention Type  Retention Leg

  • Mating Retention  With

  • PCB Mount Retention  With

  • PCB Mount Alignment  Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Usage Conditions

  • Operating Temperature (Max)  105 °C [ 221 °F ]

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Packaging Features

  • Packaging Quantity  30, 40, 55

  • Packaging Method  Box, Tube

Product Type Features

  • PCB Connector Assembly Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • PCB Mount Orientation  Vertical, Horizontal

  • Number of Positions  6, 12, 9, 3

  • Number of Rows  3

Body Features

  • Primary Product Color  Black

Termination Features

  • Termination Method to PCB  Through Hole - Solder

Operation/Application

  • Circuit Application  Power & Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-D9934-A15G
