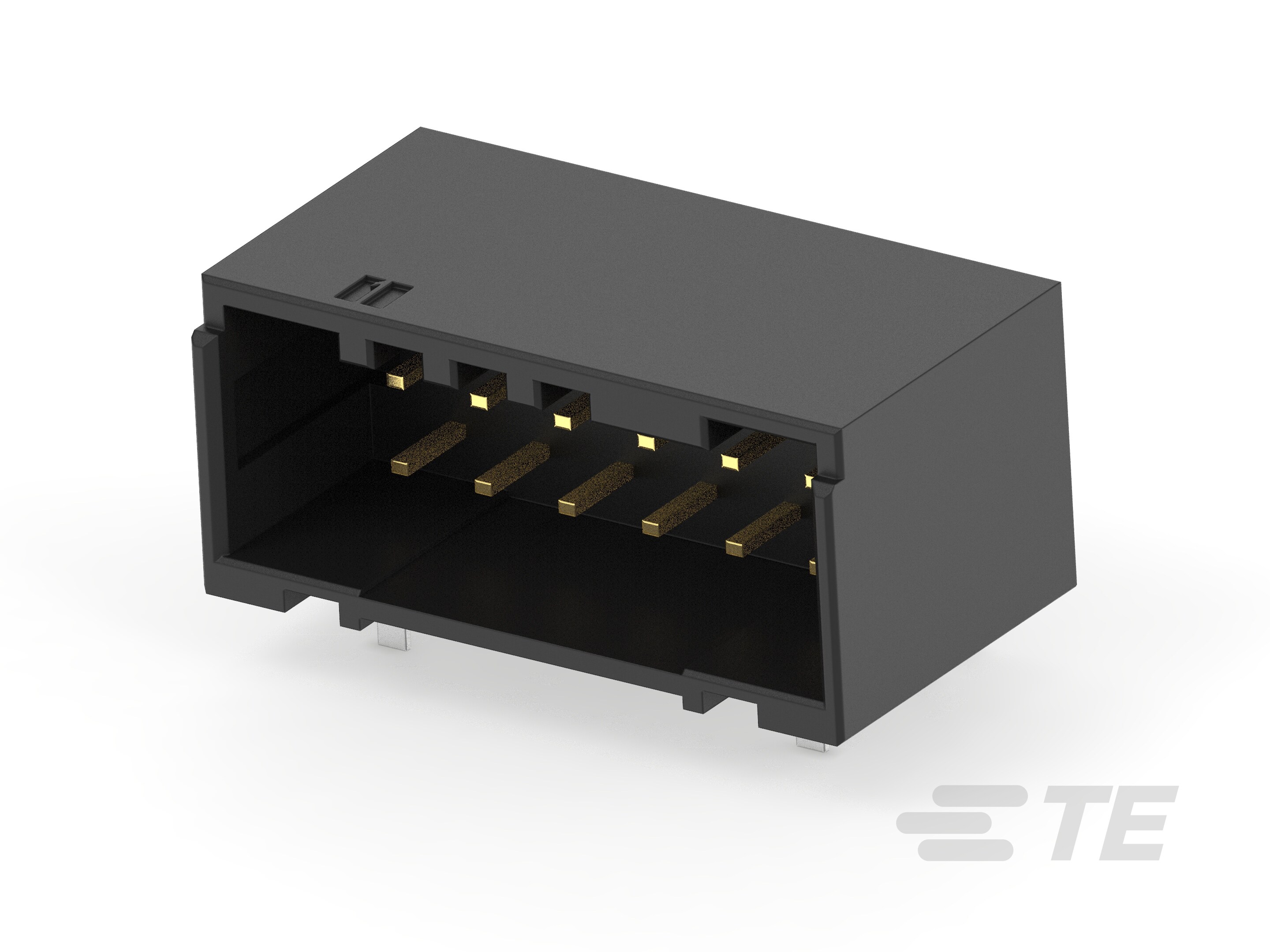

DYNAMIC 1900D HDR ASSY

Please review product documents or contact us for the latest agency approval information.

• Contact Mating Area Plating Material Thickness  .38 µm [ 15 µin ]

• Contact Mating Area Plating Material  Gold

• Contact Type  Pin

• Contact Current Rating (Max) (A) 1, 4

• Housing Material  Nylon 66 GF, Polyester GF

• Centerline (Pitch)  3.5 mm [ .137 in ]

• Mating Alignment Type  Keyed

• PCB Mount Retention Type  Retention Leg

• Mating Retention  With

• PCB Mount Retention  With

• PCB Mount Alignment  Without

• Connector Mounting Type  Board Mount

• Mating Alignment  With

• PCB Connector Assembly Type  PCB Mount Header

• Connector System  Wire-to-Board

• Header Type  Fully Shrouded

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• PCB Mount Orientation  Vertical, Horizontal

• Number of Positions  16, 8, 12, 30, 22, 38

• Number of Rows  2

• Primary Product Color  Black

• Termination Method to PCB  Through Hole - Solder

• Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

• Circuit Application  Power & Signal

• UL Flammability Rating  UL 94V-0

• Packaging Method  Box, Tube

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant
