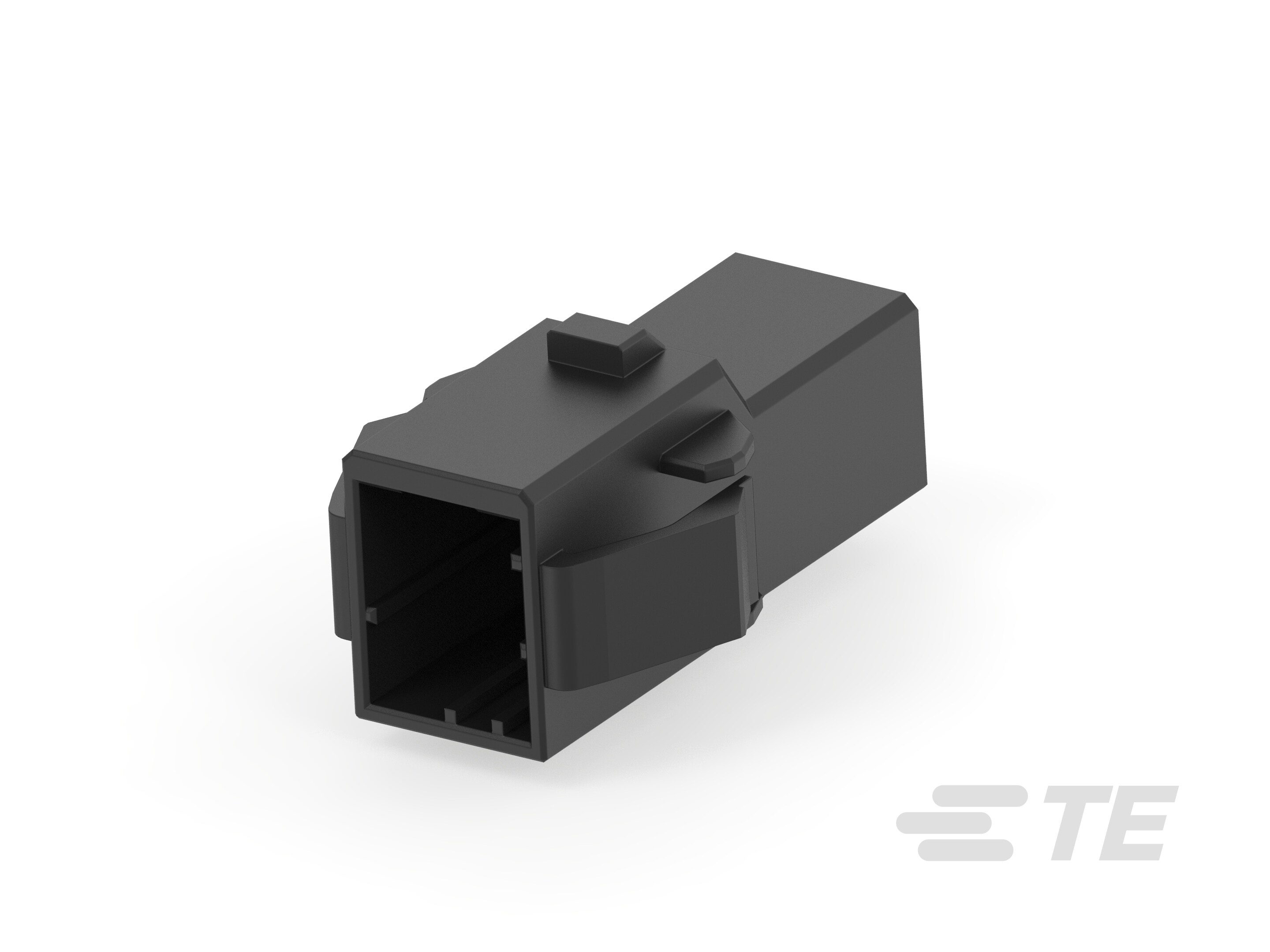

Receptacle and Tab Housing: 2.5 mm Pitch, 250V

Receptacle and Tab Housing: 2.5 mm Pitch, 250V-CAT-D9934-A66A
The Dynamic 2000 receptacle and tab housing is designed with 2mm and 3.81mm pitch with multiple positions. UL 94 V-0 Flammability Rating.
More Less

Product Features

  • Packaging Method : Bag, Box, Tray

  • Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

  • Primary Product Color : Black, Natural

  • Termination Method to Wire & Cable : Crimp

  • Strain Relief : Without

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Wire, Wire-to-Board

  • Sealable  No

  • Connector & Housing Type  Receptacle, Housing for Male Terminals

  • Connector & Contact Terminates To  Wire & Cable

  • Connector Product Type  Housing

Configuration Features

  • Number of Positions  3, 6, 8, 12, 16, 20, 48, 50

  • Number of Rows  1, 2, 3

Body Features

  • Primary Product Color  Black, Natural

  • Connector & Keying Code  X

Contact Features

  • Contact Current Rating (Max) (A) 5, 8

  • Contact Base Material  Copper Alloy

  • Contact Type  Receptacle, Tab

  • Contact Underplating Material  Nickel

Termination Features

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Strain Relief  Without

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging), Panel Mount

Housing Features

  • Housing Material  Glass-Filled Thermoplastic, Polyester GF

  • Centerline (Pitch) (mm) 2.5, 3.81, 5.08

  • Centerline (Pitch) (in) .098, .15, .2

Dimensions

  • Connector Height (mm) 10.95, 12.03, 12.98, 14.7, 14.8, 15.78, 15.8

  • Connector Height (in) .43, .47, .51, .57, .58, .62

  • Row-to-Row Spacing (mm) 3.75

  • Row-to-Row Spacing (in) .147, .148

  • Connector Length (mm) 8.9, 10.2, 11.4, 12.7, 16.4, 17.7, 26.4, 58.65

  • Connector Length (in) .35, .4, .44, .5, .64, .69, 1.03, 2.3

  • Connector Width (mm) 20, 22.8, 30.69

  • Connector Width (in) .78, .897, 1.2

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Bag, Box, Tray

  • Packaging Quantity  200, 300, 400, 432, 480, 500, 600, 1200, 1600, 2000, 2400, 3200, 3600

Reference Number

  • TE Internal Number CAT-D9934-A66A
