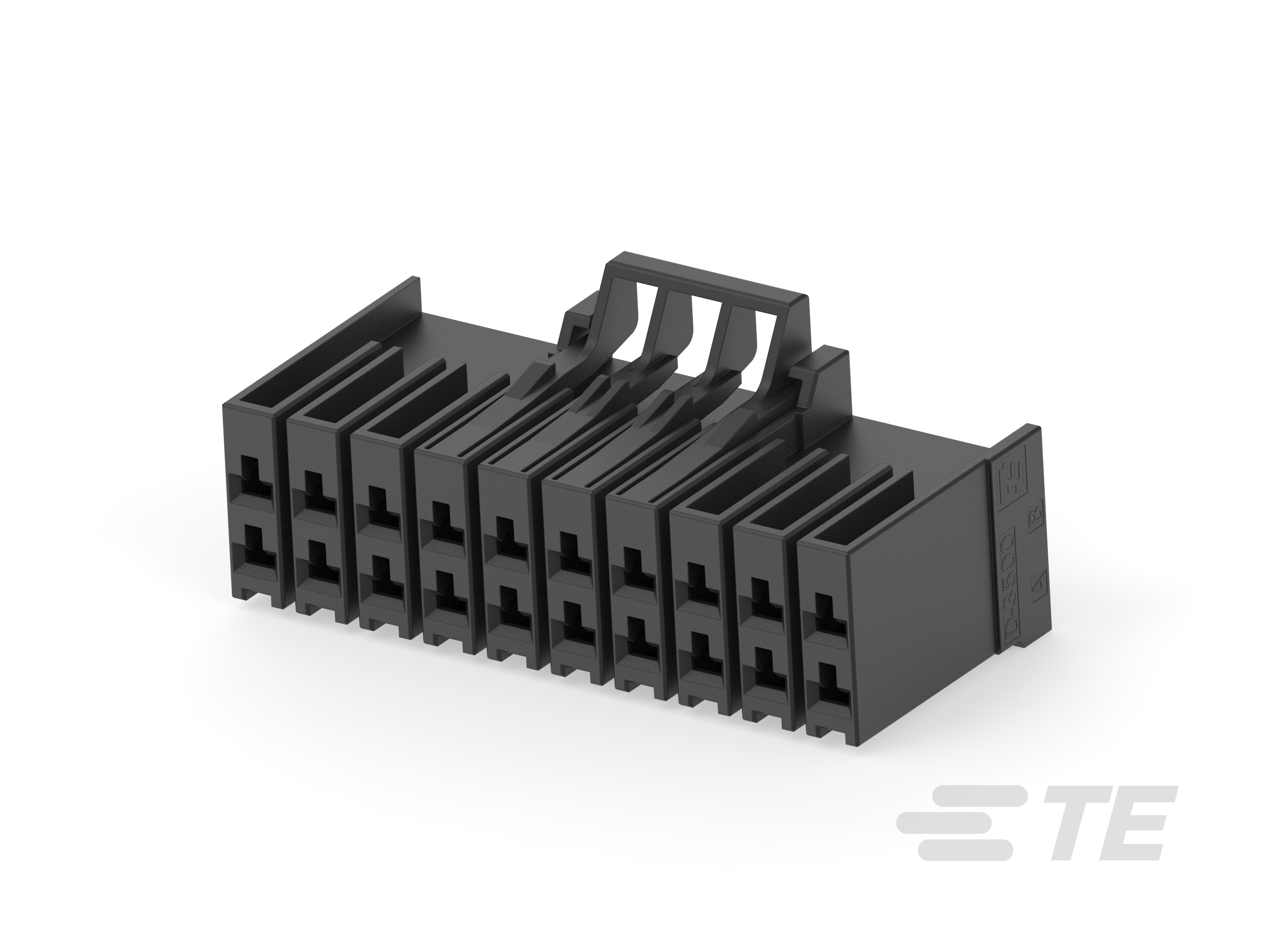

Receptacle and Tab Housing: 5.08 mm pitch, 600V

Receptacle and Tab Housing: 5.08 mm pitch, 600V-CAT-D9934-A75C
The Dynamic 3500 receptacle housing is designed with a 5.08mm pitch with multiple positions. Rated voltage 60V. UL 94 V-0 Flammability Rating.
More Less

Product Features

  • Connector Product Type : Housing

  • Connector & Housing Type : Housing for Male Terminals, Receptacle

  • Connector System : Wire-to-Wire, Wire-to-Board

  • Number of Positions : 12, 10, 20, 4, 6, 2

  • Centerline (Pitch) (mm): 2.5, 5.08

  • Centerline (Pitch) (in): .2, .098

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Bag

  • Packaging Quantity  6400, 240, 400, 450

Contact Features

  • Contact Type  Receptacle, Tab

  • Contact Base Material  Copper Alloy

Dimensions

  • Connector Height (mm) 21, 21.52

  • Connector Height (in) .84, .82

  • Connector Length (mm) 12, 9.66, 20

  • Connector Length (in) .78, .47, .38

  • Connector Width  33.6 mm [ 1.32 in ]

  • Row-to-Row Spacing  5.08 mm [ .2 in ]

Housing Features

  • Housing Material  Polyester GF, Polyester - GF

  • Centerline (Pitch) (mm) 2.5, 5.08

  • Centerline (Pitch) (in) .2, .098

Industry Standards

  • UL Flammability Rating  UL 94V-0

Mechanical Attachment

  • Strain Relief  Without

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging), Panel Mount

Product Type Features

  • Connector Product Type  Housing

  • Connector & Housing Type  Housing for Male Terminals, Receptacle

  • Connector System  Wire-to-Wire, Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  12, 10, 20, 4, 6, 2

  • Number of Rows  2, 1

Body Features

  • Primary Product Color  Black, Yellow, White, Red, Natural, Blue

Termination Features

  • Termination Method to Wire & Cable  Crimp

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-D9934-A75C
