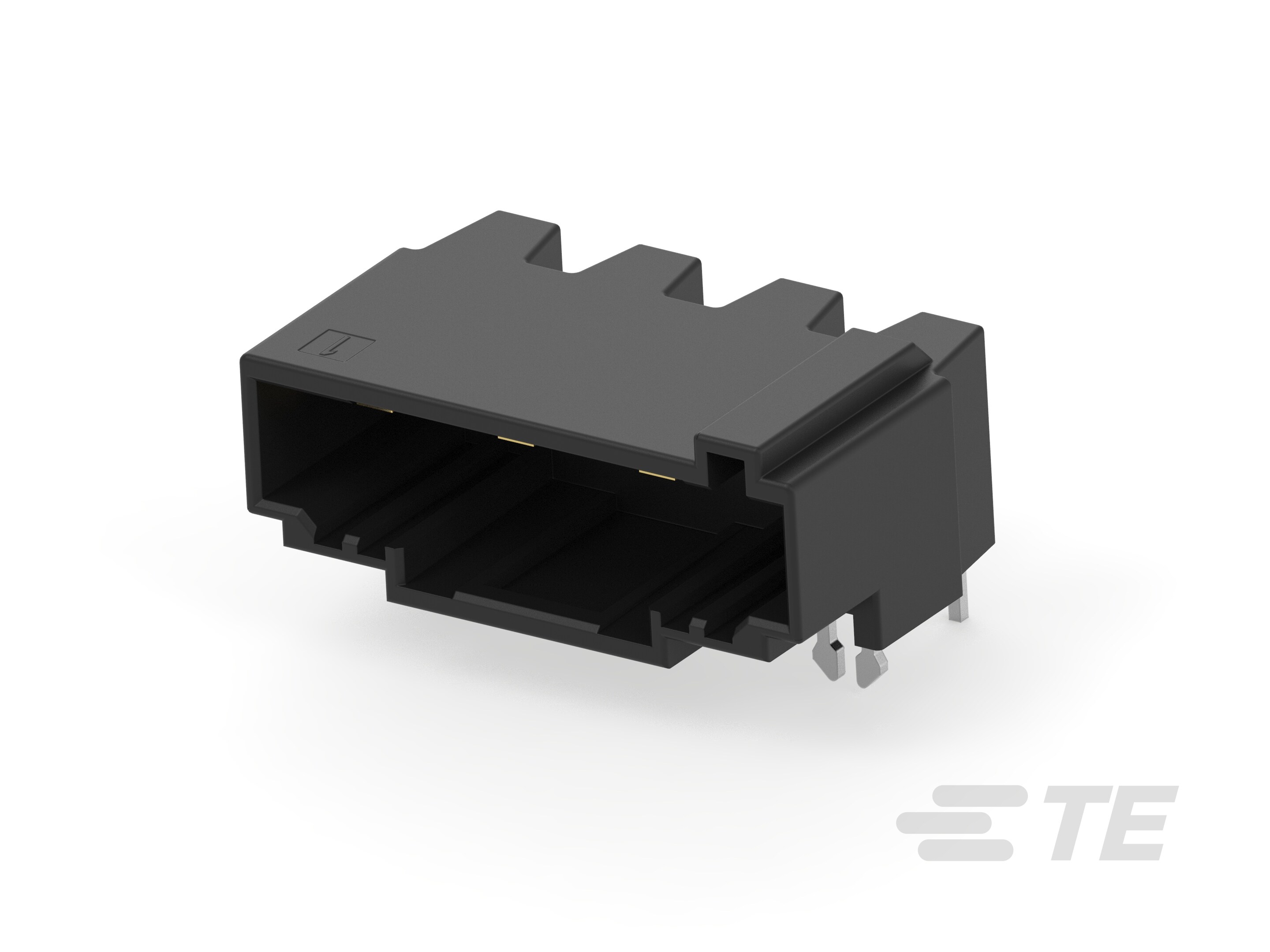

Header Assembly: Wire-to-Board Connector, Spring Clamp, 7.5 mm pitch, 14.5A

Header Assembly: Wire-to-Board Connector, Spring Clamp, 7.5 mm pitch, 14.5A-CAT-D9934-A75I
Dynamic 3950 assemblies are field-installable connectors with spring clamped contacts. Maximum 14.5A per pin with multiple positions. All contacts are gold-plated.
More Less

Product Features

  • Number of Positions : 6, 8, 4, 3

  • Terminal Block Connector Type : Header, Receptacle

  • Connector System : Wire-to-Board

  • Centerline (Pitch) : 7.5 mm [ .295 in ]

  • Number of Rows : 1

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Tray

Configuration Features

  • Wire Entry Location  Side, Top

  • Number of Positions  6, 8, 4, 3

  • Number of Rows  1

  • Wire Entry Angle  180°

Contact Features

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Gold

  • Contact Current Rating (Max) (A) 14.5, 12.7

Termination Features

  • Termination Method to PCB  Through Hole - Solder

  • Termination Method to Wire & Cable  Push-in

Housing Features

  • Housing Material  Thermoplastic

  • Centerline (Pitch)  7.5 mm [ .295 in ]

Identification Marking

  • Marking Color  Black

Body Features

  • Primary Product Color  Black

  • Product Orientation  Right Angle, Vertical

Product Type Features

  • Terminal Block Connector Type  Header, Receptacle

  • Connector System  Wire-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board, Wire & Cable

Electrical Characteristics

  • Operating Voltage (VAC) 300

Mechanical Attachment

  • Connector Mounting Type  Board Mount, Cable Mount (Free-Hanging)

Dimensions

  • Wire Size (AWG) 22 – 14

  • Wire Size (mm²) .32 – 2.1

Usage Conditions

  • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-D9934-A75I
