Reverse Current Cutout Contactor

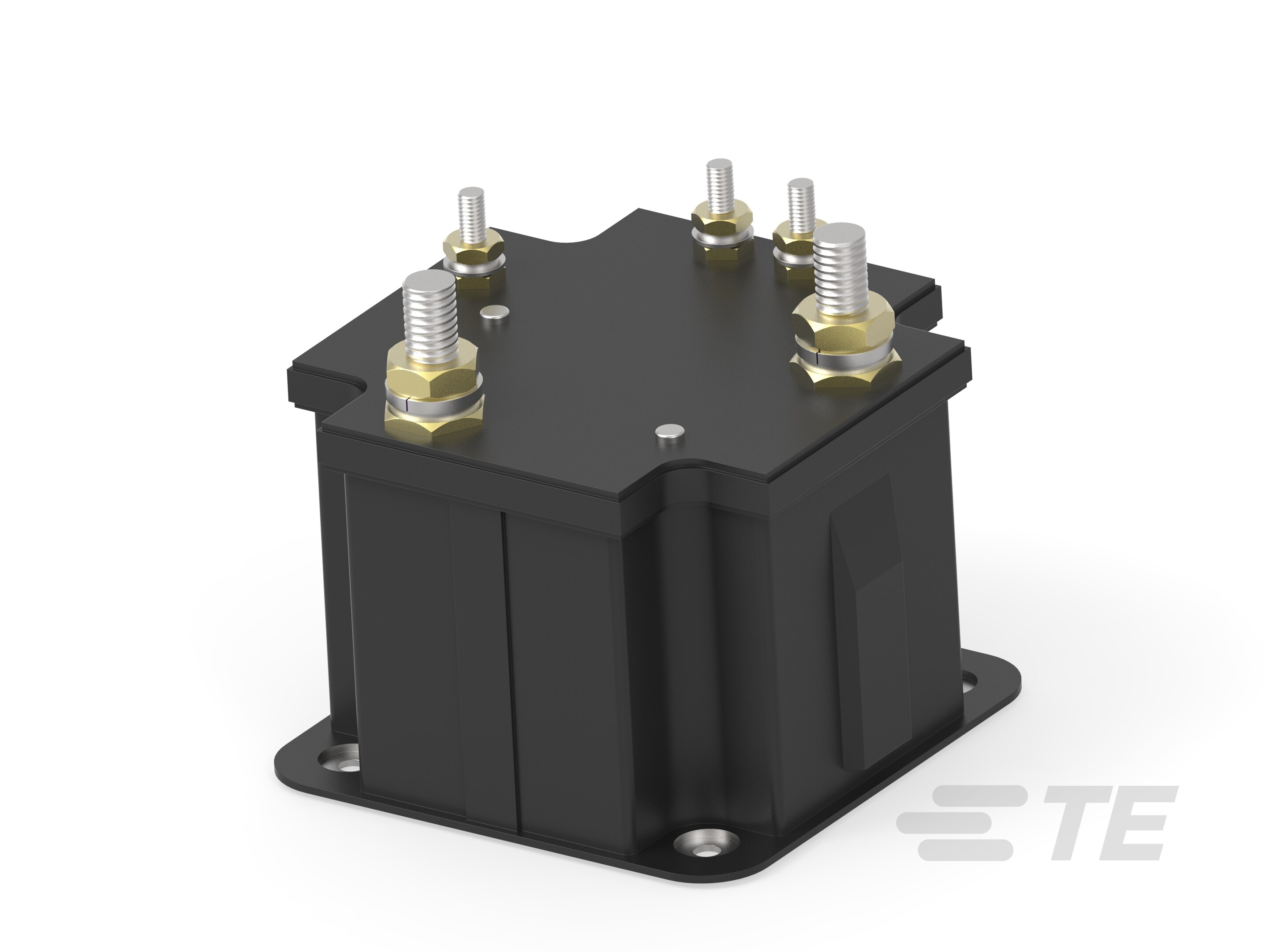

Reverse Current Cutout Contactor-CAT-DC-A701
TE's A701 series lightweight high performance DC contactors provides outstanding performance and reliability in a highly efficient package.
More Less

Product Features

  • Relay & Contactor Type : General Purpose Contactor

  • Current Type : DC

  • Contact Arrangement : SPST NO

  • Contact Current Rating (A): 400

  • Coil Voltage Rating (VDC): 28

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Relay & Contactor Type  General Purpose Contactor

Configuration Features

  • Auxiliary Switch Contact Arrangement  SPDT

  • Contact Number of Poles  1

  • Contact Arrangement  SPST NO

Electrical Characteristics

  • Coil Resistance (Ω) 78, 87.5

  • Contact Switching Voltage (Max) (VDC) 28

  • Contact Current Rating (A) 400

  • Coil Voltage Rating (VDC) 28

Body Features

  • Enclosure Type  Environmentally Sealed

Termination Features

  • Auxiliary Termination & Connection Type  10-32 UNF-2A Stud

  • Main Termination & Connection Type  3/8-24 UNF-2A Stud

  • Coil Termination & Connection Type  10-32 UNF-2A Stud

Mechanical Attachment

  • Torque (Auxiliary) (in-lbs) 24

  • Product Mounting Feature Type  Mounting Plate

  • Torque (Coil) (in-lbs) 24

  • Torque (Main) (in-lbs) 112.5

  • Product Mount Type  Chassis Mount

Operation/Application

  • Current Type  DC

Reference Number

  • TE Internal Number CAT-DC-A701
