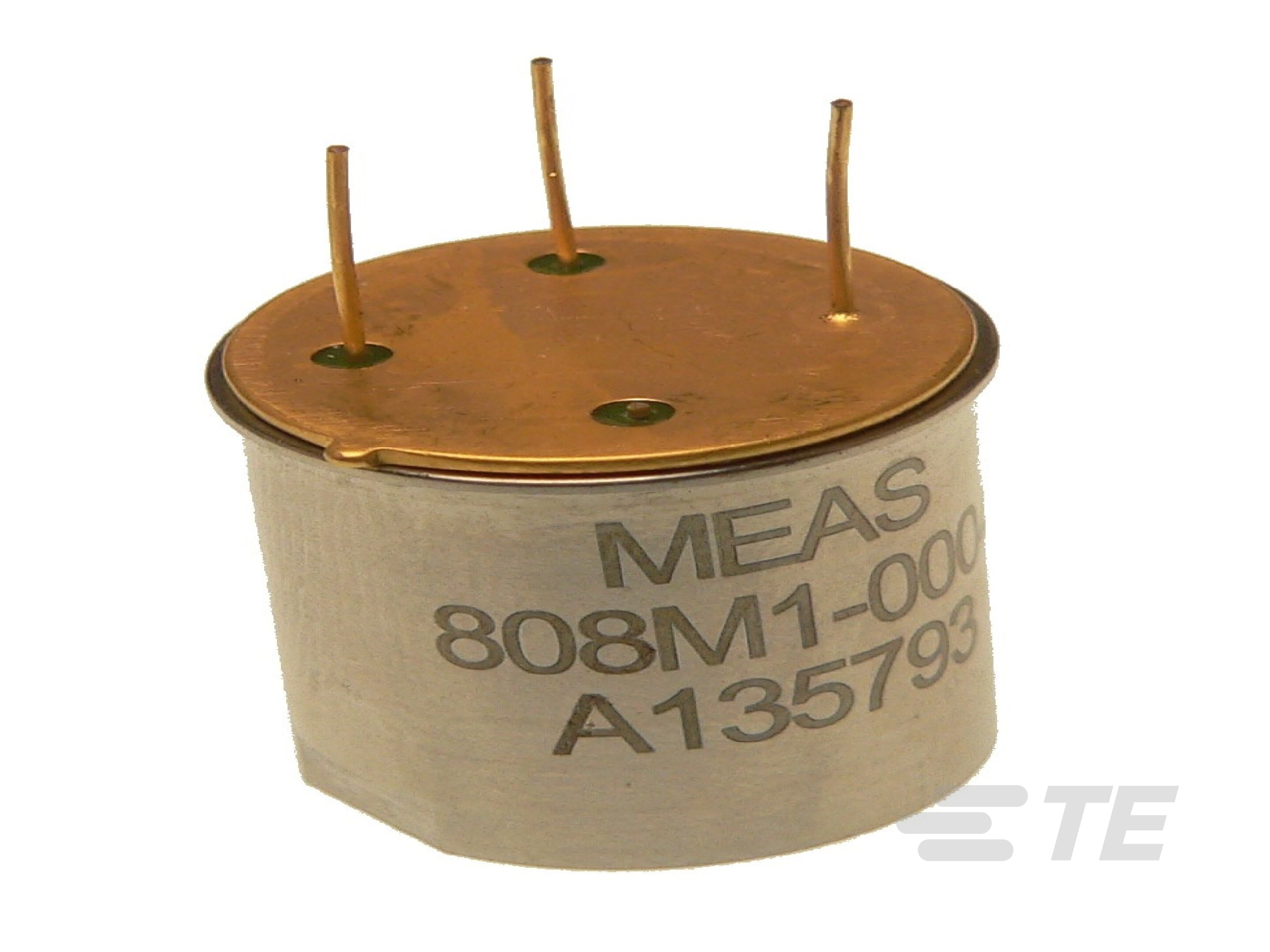

Model 808M1 TO-8 3-Wire Accelerometer

Model 808M1 TO-8 3-Wire Accelerometer-CAT-EAC0011
  • MEAS
|
  • MEAS 808
The Model 808M1 is a miniature adhesive mount voltage output accelerometer built on a 3-pin TO-8 header.
More Less

Product Features

  • Accelerometer Type : 3-Wire Voltage

  • Vibration Sensor Product Type : Piezoelectric Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 1 to 3000

  • Full Scale Output Voltage (VDC): ±2

Available from

LADD Inc
Overview

It is available in ±4g and ±20g dynamic ranges and offers a flat frequency response to 5kHz.  The accelerometer features a hermetic construction in a TO-8 header configuration. The model 808M1 incorporates a stable piezo-ceramic crystal with low power electronics in a 100% shielded housing suitable for many embedded OEM applications.The accelerometer is offered in two configurations; one for adhesive mounting and one for stud mounting.

BENEFITS

  • TO-8 Series Accelerometer
  • 3-Wire Voltage Output
  • Low-Cost, Embedded Applications
  • <0.80mA Power Consumption
  • ±4g and ±20g Range
  • Wide bandwidth up to 5kHz
  • Hermetically Sealed
  • -40°C to +100°C Operating Range
  • Case Grounded Design
  • 3.0-5.5 Excitation Voltage



Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Embedded

  • Accelerometer Type  3-Wire Voltage

  • Vibration Sensor Product Type  Piezoelectric Accelerometer

Body Features

  • Primary Product Material  Stainless Steel

  • Product Weight (g) 20

  • Number of Sensing Axes  Uniaxial

Electrical Characteristics

  • Excitation Voltage Range (VDC) 3 – 5.5

  • Full Scale Output Voltage (VDC) ±2

Other

  • Non-Linearity (FSO) (%) ±1

  • Overall Acceleration Range (±) (g) 4 – 20

  • Sensitivity Range (mV/g) 100 – 500

  • Acceleration Range (±) (g) 20, 4

  • Sensitivity (mV/g) 100, 500

  • EU RoHS Compliance  Compliant

Usage Conditions

  • Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

Operation/Application

  • Output Current Type  AC

Signal Characteristics

  • Frequency Response (Hz) 1 to 3000

Mechanical Attachment

  • Sensor Mount Type  Screw Mount, Adhesive

Reference Number

  • TE Internal Number CAT-EAC0011
