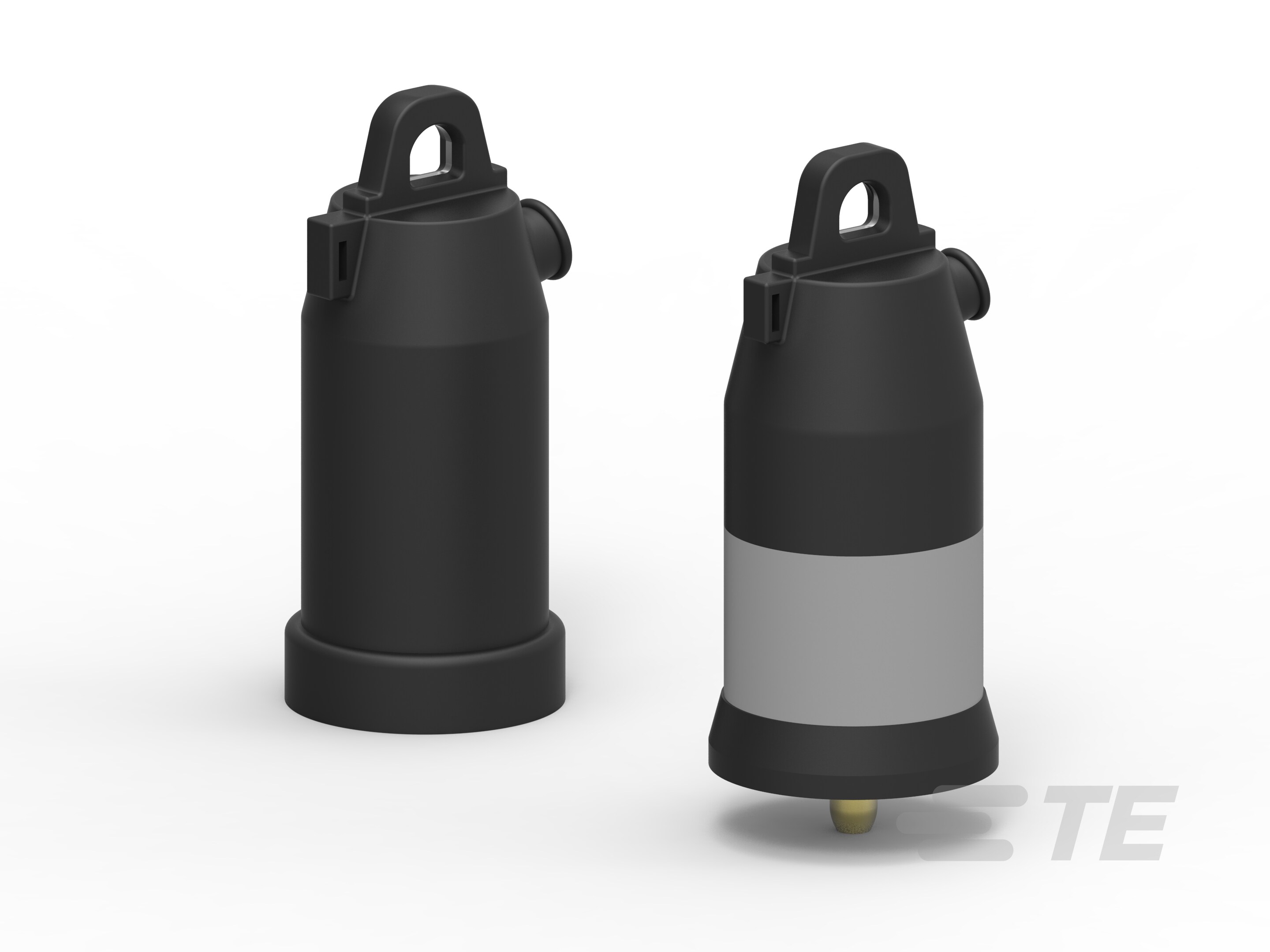

Loadbreak 200A Insulating Cap

Loadbreak 200A Insulating Cap-CAT-ELB-IC
  • RAYCHEM
|
  • RAYCHEM ELB
TE Connectivity’s (TE’s) Raychem 200A Insulating Cap provides protection for energized 15/25/35 kV 200A loadbreak interfaces.
More Less

Product Features

  • Voltage Class (kV): ≤ 25, ≤ 15, ≤ 35

  • Power Systems Connector Type : Compression

  • Bushing Type : 200A

Available from

LADD Inc
Overview

The insulating cap is meant to provide insulated, submer-sible protection for energized 15/25/35 kV loadbreak interfaces. They are frequently used temporarily or perma-nently within padmount cabinets, underground vaults, switchgear, transformers, and a variety of other apparatus. Typical applications include system maintenance, a circuit reconfiguration, and future expansion.

Cap conforms to IEEE Standard 386. These insulating caps are therefore interchangeable with other manufacturers’ products that also comply with this standard.

KEY FEATURES

  • Provides insulated, fully shielded, submersible connection
  • Maintains ground potential on the cap’s surface when the drain wire is connected to a common ground
  • Conforms to ANSI/IEEE Standard 386

Know More

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Installation Technology  Cold Applied

  • Power Systems Connector Type  Compression

  • Bushing Type  200A

Electrical Characteristics

  • Voltage Class (kV) ≤ 25, ≤ 15, ≤ 35

Body Features

  • Compatible Conductor Material  Aluminium, Copper

Operation/Application

  • Load Break Connection Product Type  Insulating Cap

Product Availability

  • Product Availability  Americas

Reference Number

  • TE Internal Number CAT-ELB-IC
