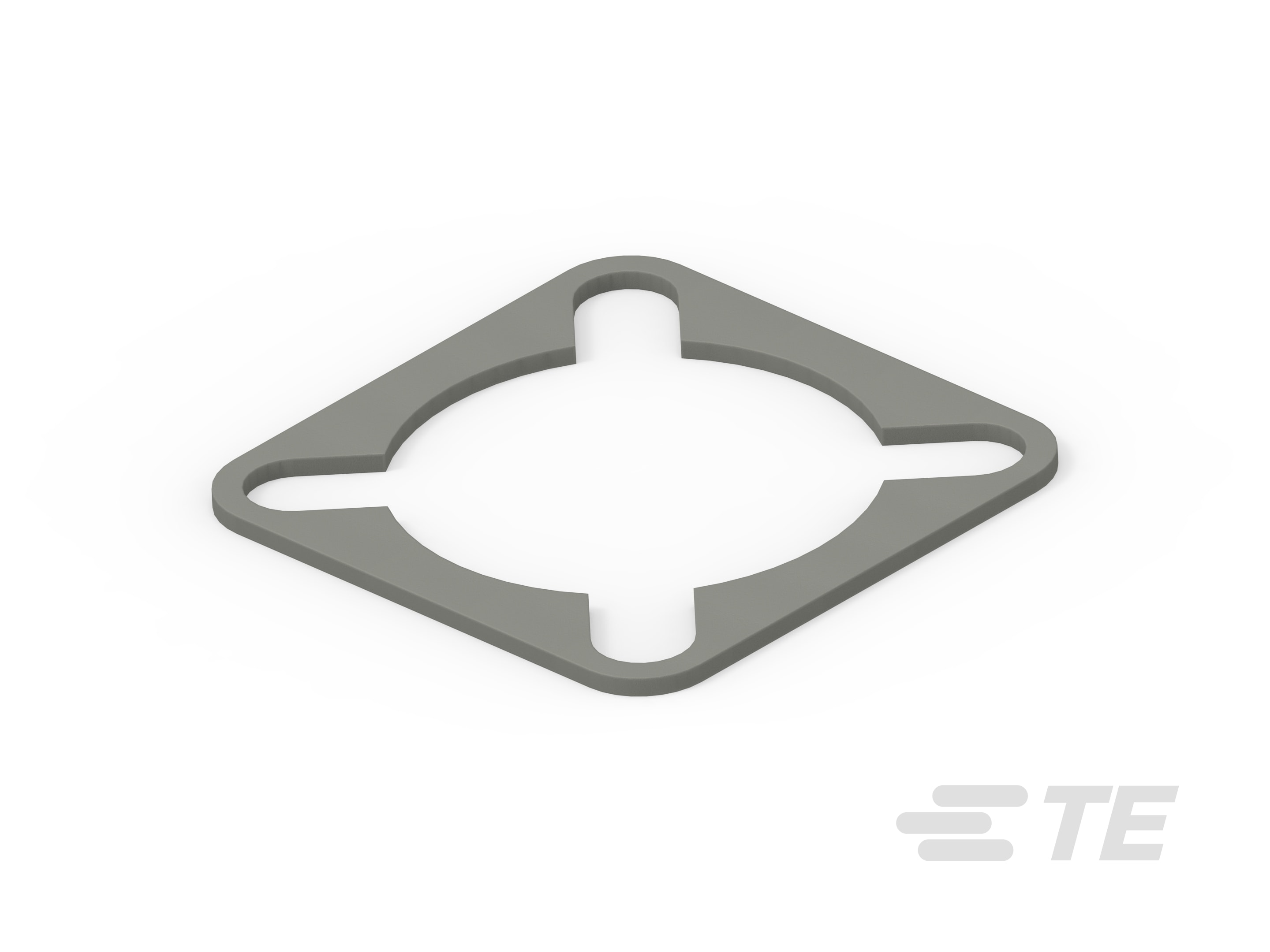

Std MIL-DTL-38999 Series III Conn Gasket

Std MIL-DTL-38999 Series III Conn Gasket-CAT-EMIG-0007
  • Kemtron
|
  • Kemtron 93 Series
Connector Gasket for RFI/EMI Shielding meeting MIL-DTL-38999 Series III standard sizes providing low contact resistance between connector and enclosure.
More Less

Product Features

  • Operating Temperature Range : -55 – 160 °C [ -67 – 320 °F ]

  • Filler Material : Nickel Plated Graphite (Ni/C), Silver Plated Aluminum (Ag/Al)

  • Gasket Type : EMI Connector Gasket

  • Compatible With Connector Shell Size : 19, 23, 15, 11, 9, 13, 21, 17, 25

  • Binding Material : Fluorosilicone, Silicone

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filler Material  Nickel Plated Graphite (Ni/C), Silver Plated Aluminum (Ag/Al)

  • Binding Material  Fluorosilicone, Silicone

  • Finished Type  Conductive Sheet

Electrical Characteristics

  • Resistance to Petroleum  Yes, No

  • Volume Resistivity (Max) (Ω.cm) .008, .012, .05

Body Features

  • Gasket Type  EMI Connector Gasket

Dimensions

  • Product Thickness  .8 mm [ .031 in ]

  • Product Width (mm) 24.51, 26.92, 29.29, 31.95, 34.32, 38.1, 41.28, 44.45, 47.63

  • Product Width (in) .965, 1.06, 1.153, 1.258, 1.351, 1.5, 1.625, 1.75, 1.875

Usage Conditions

  • Operating Temperature Range  -55 – 160 °C [ -67 – 320 °F ]

Operation/Application

  • Compatible With Connector Shell Size  9, 11, 13, 15, 17, 19, 21, 23, 25

Reference Number

  • TE Internal Number CAT-EMIG-0007
