D-Sub Conn Gaskets for RFI/EMI Shielding

Kemtron

Kemtron 95 Series

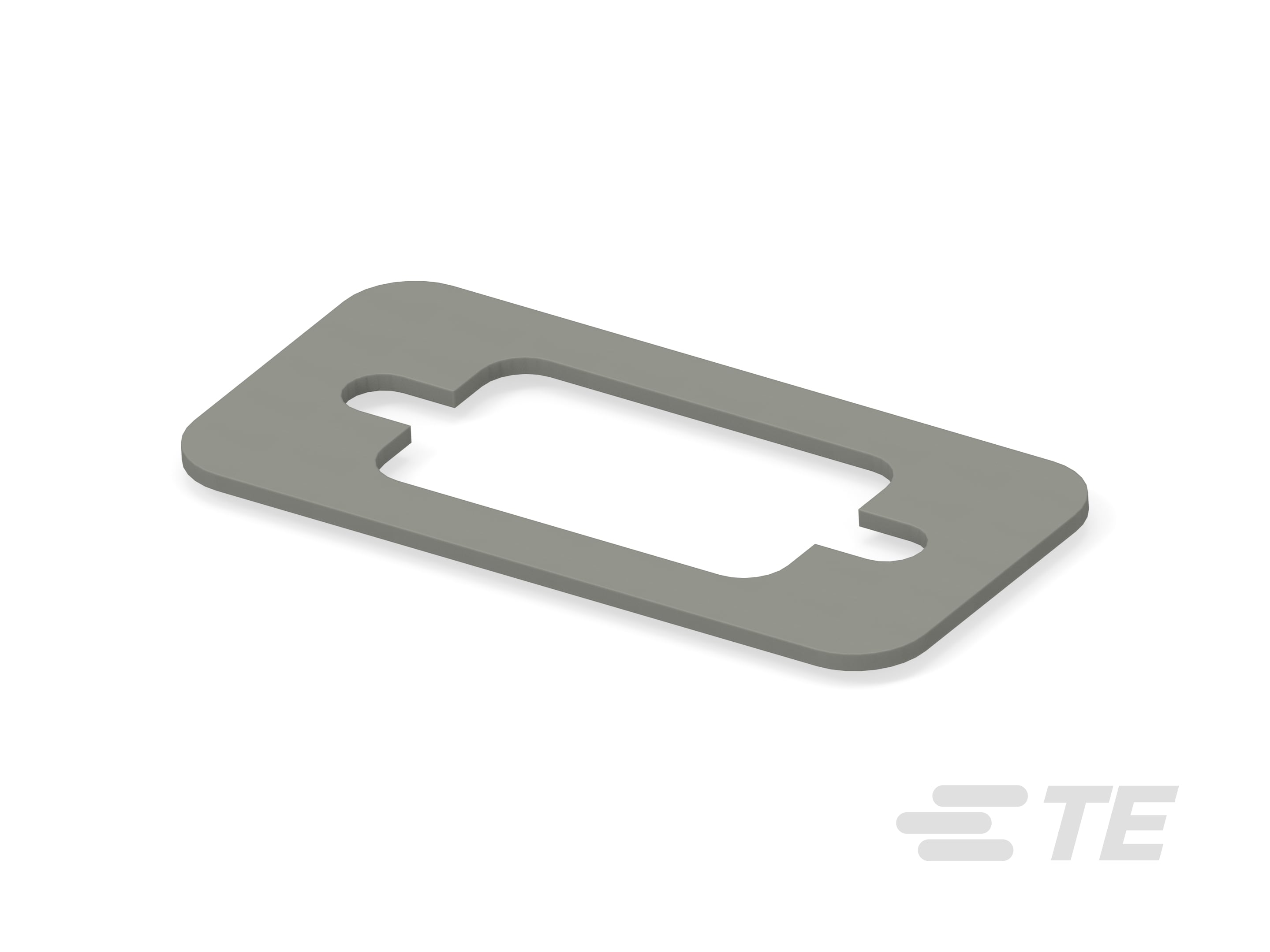

Connector Gasket for RFI/EMI Shielding meeting D-sub standard size providing low contact resistance between connector and enclosure.

More Less

Product Features

Operating Temperature Range : -55 – 160 °C [ -67 – 320 °F ]
Filler Material : Nickel Plated Graphite (Ni/C), Silver Plated Aluminum (Ag/Al)
Gasket Type : EMI Connector Gasket
Number of Positions : 15, 9, 50, 37, 25
Product Thickness (mm): .8, 1.6
Product Thickness (in): .031, .062

Available from

Product	TE Part #	Documents	Filler Material	Product Thickness	Product Width	Resistance to Petroleum	Volume Resistivity (Max)
Conn G SSA 1.6mm D-Sub 15 Pin Buy on te.com	2430163-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	44.2 mm	No	.008 Ω.cm
Conn G SSA 0.8mm D-Sub 25 Pin Buy on te.com	2430159-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	57.9 mm	No	.008 Ω.cm
Conn G SSA 0.8mm D-Sub 50 Pin Buy on te.com	2430161-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	72.1 mm	No	.008 Ω.cm
Conn G SSA 1.6mm D-Sub 9 Pin Buy on te.com	2430162-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	35.8 mm	No	.008 Ω.cm
Conn G SNG 0.8mm D-Sub 9 Pin Buy on te.com	2430137-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	35.8 mm	No	.05 Ω.cm
Conn G SNG 0.8mm D-Sub 37 Pin Buy on te.com	2430140-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	74.4 mm	No	.05 Ω.cm
Conn G SNG 0.8mm D-Sub 50 Pin	2430141-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	72.1 mm	No	.05 Ω.cm
Conn G SNG 1.6mm D-Sub 9 Pin Buy on te.com	2430142-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	35.8 mm	No	.05 Ω.cm
Conn G SNG 1.6mm D-Sub 37 Pin Buy on te.com	2430145-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	74.4 mm	No	.05 Ω.cm
Conn G FNG 0.8mm D-Sub 9 Pin Buy on te.com	2430147-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	35.8 mm	Yes	.05 Ω.cm
Conn G FNG 1.6mm D-Sub 15 Pin Buy on te.com	2430153-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	44.2 mm	Yes	.05 Ω.cm
Conn G FNG 1.6mm D-Sub 50 Pin Buy on te.com	2430156-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	72.1 mm	Yes	.05 Ω.cm
Conn G SSA 1.6mm D-Sub 37 Pin Buy on te.com	2430165-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	74.4 mm	No	.008 Ω.cm
Conn G SSA 1.6mm D-Sub 50 Pin Buy on te.com	2430166-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	72.1 mm	No	.008 Ω.cm
Conn G FSA 0.8mm D-Sub 15 Pin Buy on te.com	2430168-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	44.2 mm	Yes	.012 Ω.cm
Conn G FSA 1.6mm D-Sub 9 Pin Buy on te.com	2430172-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	35.8 mm	Yes	.012 Ω.cm
Conn G FSA 1.6mm D-Sub 15 Pin Buy on te.com	2430173-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	44.2 mm	Yes	.012 Ω.cm
Conn G SNG 0.8mm D-Sub 15 Pin Buy on te.com	2430138-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	44.2 mm	No	.05 Ω.cm
Conn G FNG 0.8mm D-Sub 25 Pin Buy on te.com	2430149-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	57.9 mm	Yes	.05 Ω.cm
Conn G FNG 0.8mm D-Sub 37 Pin Buy on te.com	2430150-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	74.4 mm	Yes	.05 Ω.cm
Conn G FNG 0.8mm D-Sub 50 Pin Buy on te.com	2430151-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	72.1 mm	Yes	.05 Ω.cm
Conn G FSA 0.8mm D-Sub 37 Pin Buy on te.com	2430170-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	74.4 mm	Yes	.012 Ω.cm
Conn G FSA 0.8mm D-Sub 50 Pin Buy on te.com	2430171-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	72.1 mm	Yes	.012 Ω.cm
Conn G FSA 1.6mm D-Sub 37 Pin Buy on te.com	2430175-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	74.4 mm	Yes	.012 Ω.cm
Conn G SNG 0.8mm D-Sub 25 Pin Buy on te.com	2430139-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	57.9 mm	No	.05 Ω.cm
Conn G SNG 1.6mm D-Sub 15 Pin Buy on te.com	2430143-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	44.2 mm	No	.05 Ω.cm
Conn G SNG 1.6mm D-Sub 25 Pin Buy on te.com	2430144-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	57.9 mm	No	.05 Ω.cm
Conn G SNG 1.6mm D-Sub 50 Pin Buy on te.com	2430146-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	72.1 mm	No	.05 Ω.cm
Conn G FNG 0.8mm D-Sub 15 Pin Buy on te.com	2430148-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	.8 mm	44.2 mm	Yes	.05 Ω.cm
Conn G FNG 1.6mm D-Sub 9 Pin Buy on te.com	2430152-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	35.8 mm	Yes	.05 Ω.cm
Conn G FNG 1.6mm D-Sub 25 Pin Buy on te.com	2430154-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	57.9 mm	Yes	.05 Ω.cm
Conn G FNG 1.6mm D-Sub 37 Pin Buy on te.com	2430155-1	Product Drawing 3D PDF	Nickel Plated Graphite (Ni/C)	1.6 mm	74.4 mm	Yes	.05 Ω.cm
Conn G SSA 0.8mm D-Sub 9 Pin Buy on te.com	2430157-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	35.8 mm	No	.008 Ω.cm
Conn G SSA 0.8mm D-Sub 15 Pin Buy on te.com	2430158-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	44.2 mm	No	.008 Ω.cm
Conn G SSA 0.8mm D-Sub 37 Pin Buy on te.com	2430160-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	74.4 mm	No	.008 Ω.cm
Conn G FSA 0.8mm D-Sub 9 Pin Buy on te.com	2430167-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	35.8 mm	Yes	.012 Ω.cm
Conn G FSA 0.8mm D-Sub 25 Pin Buy on te.com	2430169-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	.8 mm	57.9 mm	Yes	.012 Ω.cm
Conn G FSA 1.6mm D-Sub 25 Pin Buy on te.com	2430174-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	57.9 mm	Yes	.012 Ω.cm
Conn G FSA 1.6mm D-Sub 50 Pin Buy on te.com	2430176-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	72.1 mm	Yes	.012 Ω.cm
Conn G SSA 1.6mm D-Sub 25 Pin Buy on te.com	2430164-1	Product Drawing 3D PDF	Silver Plated Aluminum (Ag/Al)	1.6 mm	57.9 mm	No	.008 Ω.cm

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Filler Material Nickel Plated Graphite (Ni/C), Silver Plated Aluminum (Ag/Al)

Configuration Features

Number of Positions 9, 15, 25, 37, 50

Electrical Characteristics

Resistance to Petroleum No, Yes
Volume Resistivity (Max) (Ω.cm) .008, .012, .05

Body Features

Gasket Type EMI Connector Gasket

Dimensions

Product Thickness (mm) .8, 1.6
Product Thickness (in) .031, .062
Product Width (mm) 35.8, 44.2, 57.9, 72.1, 74.4
Product Width (in) 1.409, 1.74, 2.28, 2.839, 2.929

Usage Conditions

Operating Temperature Range -55 – 160 °C [ -67 – 320 °F ]

Reference Number

TE Internal Number CAT-EMIG-0009

Related Materials

Datasheets & Catalog Pages

Connector Gasket pdf English

D-Sub Conn Gaskets for RFI/EMI Shielding

Product Features

Operating Temperature Range : -55 – 160 °C [ -67 – 320 °F ]

Filler Material : Nickel Plated Graphite (Ni/C), Silver Plated Aluminum (Ag/Al)

Gasket Type : EMI Connector Gasket

Number of Positions : 15, 9, 50, 37, 25

Product Thickness (mm): .8, 1.6

Product Thickness (in): .031, .062

Product Type Features

Filler Material Nickel Plated Graphite (Ni/C), Silver Plated Aluminum (Ag/Al)

Configuration Features

Number of Positions 9, 15, 25, 37, 50

Electrical Characteristics

Resistance to Petroleum No, Yes

Volume Resistivity (Max) (Ω.cm) .008, .012, .05

Body Features

Gasket Type EMI Connector Gasket

Dimensions

Product Thickness (mm) .8, 1.6

Product Thickness (in) .031, .062

Product Width (mm) 35.8, 44.2, 57.9, 72.1, 74.4

Product Width (in) 1.409, 1.74, 2.28, 2.839, 2.929

Usage Conditions

Operating Temperature Range -55 – 160 °C [ -67 – 320 °F ]

Reference Number

TE Internal Number CAT-EMIG-0009

Datasheets & Catalog Pages
