Pedal Load Cell
- MEAS
- MEAS FN2114
Product Features
-

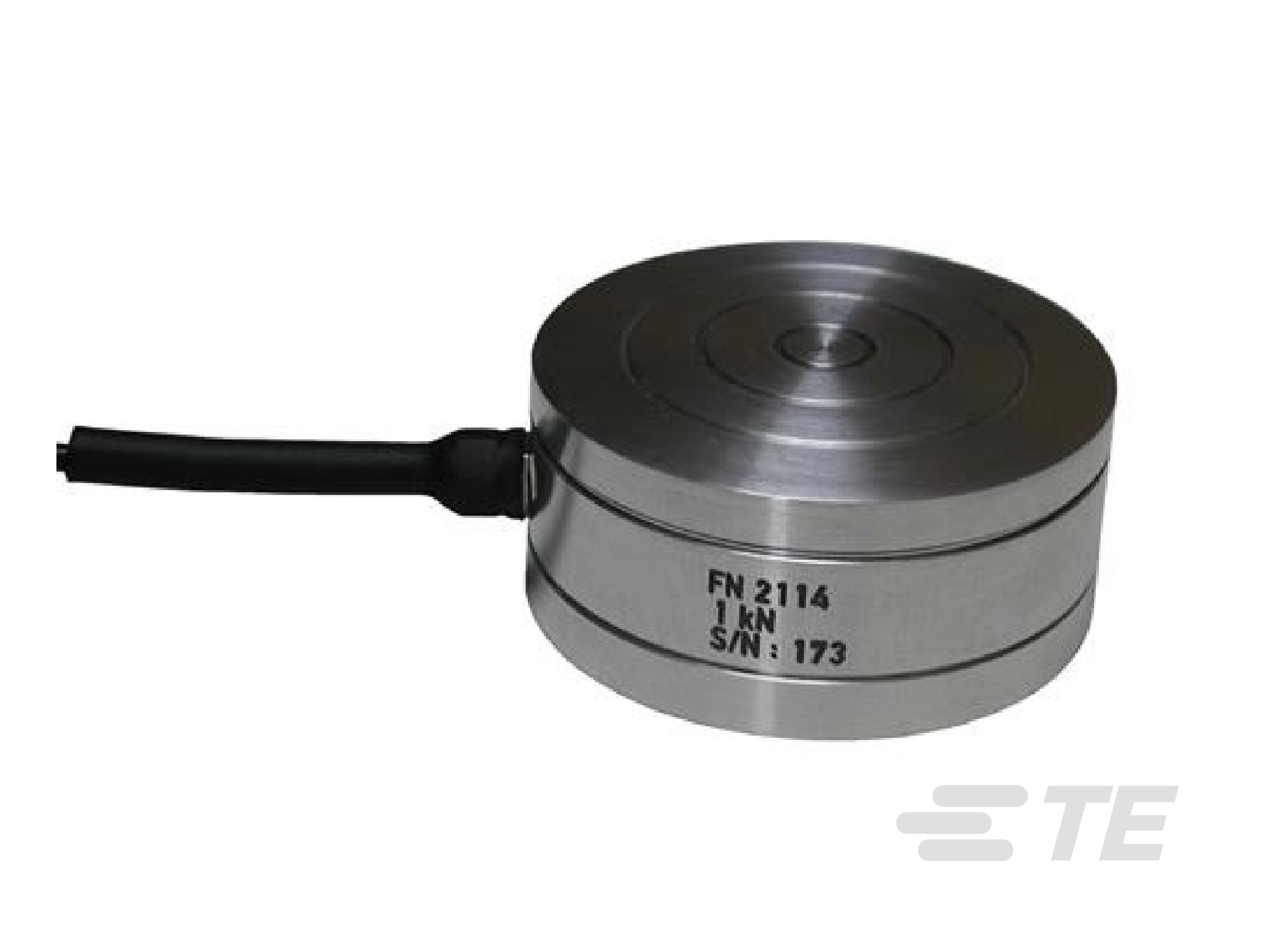

Force Load Cell Sensor Type : Automotive Load Cells
-
Force Direction : Compression
-
Full Scale Range (Newton): 200 – 2500
-
Full Scale Range (lbf): 40 – 500
-
Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]
Since the force to be measured on the brake, clutch, accelerometer, and vehicle types vary, we offer both standard and customized measurement ranges. With an internal mechanical decoupling system, accuracy is 1% F.S., regardless of the point of force application. Integrated amplifier for high level output is optionally available for all ranges. A similar pedal load cells with thicker dimension exists as model FN2570. With many years of experience as a designer and manufacturer of sensors, we often work with customers to design or customize sensors for specific uses and testing environments. On request, instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.
Benefits
- Ranges 200 to 2500 N (40 to 500 Lbf)
- Aluminum body
- Cable gland output
- Accuracy 1% regardless force application point
- Compression only
- Integrated amplifier optional
- Rugged design
Applications
- On-board vehicle equipment
- Test bench equipment
- Laboratory and research
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Force Load Cell Sensor Type Automotive Load Cells
Other
-
Force Direction Compression
Electrical Characteristics
-
Full Scale Range (Newton) 200 – 2500
-
Full Scale Range (lbf) 40 – 500
-
Supply Voltage Range (VDC) -15 – 15, 10, 10 – 30
Usage Conditions
-
Operating Temperature Range -20 – 80 °C [ -4 – 176 °F ]
-
Accuracy (% of FS) ±1
Industry Standards
-
IP Rating IP50
Operation/Application
-
Output Signal Type ±2 V, ±2 mV/V, ±5 V
Reference Number
-
TE Internal Number CAT-FLS0036
Datasheets & Catalog Pages
- FN2114 English
