Gear Stick Load Cell
- MEAS
- MEAS FN7080

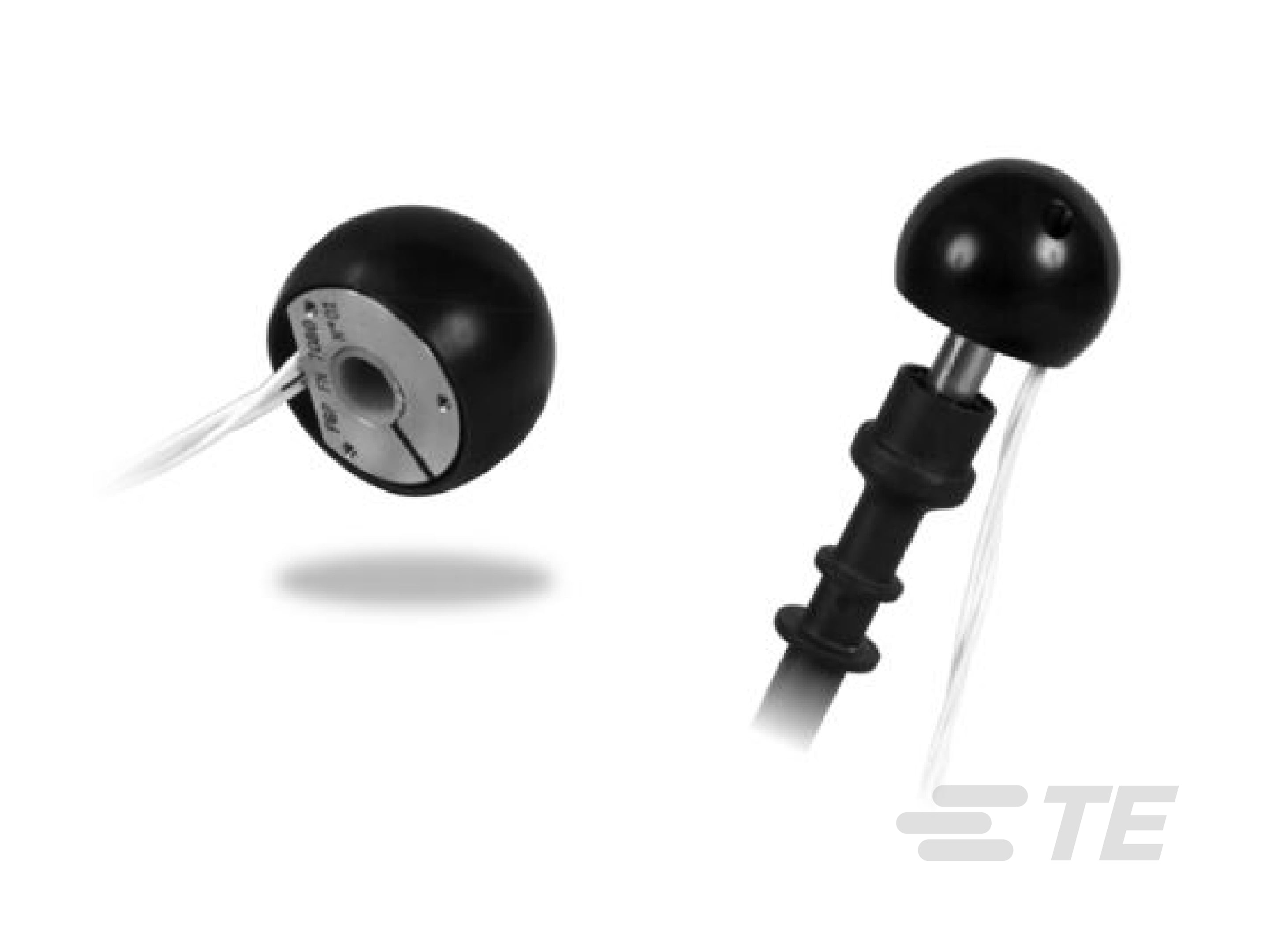

Designed for automotive comfort testing, the multi-component gear stick load cell is installed in place of the original gear knob on the gear stick and measures the force required to change gear.
Product Features
-
Force Load Cell Sensor Type : Automotive Load Cells
-
Force Direction : Compression, Tension
-
Full Scale Range (Newton): 200, 300, 500
-
Full Scale Range (lbf): 40, 60, 100
-
Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]
Overview
Features
- Ranges 200 to 500 N (40 to 100 lbf)
- Multi-components, up to 3 Force channels
- Aluminum body
- High adaptability to rod by cylindrical interfaces
- 2 and 3 axes measurements
- Fits most gear sticks
- Compact and ergonomic design
- Integrated amplifier optional
- Exists in many optional designs
Applications
- On-board vehicle equipment
- Test bench equipment
- Robotics and effectors
- Laboratory and research
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Force Load Cell Sensor Type Automotive Load Cells
Electrical Characteristics
-
Full Scale Range (Newton) 200, 300, 500
-
Full Scale Range (lbf) 40, 60, 100
-
Supply Voltage Range (VDC) 5, 10 – 30
Usage Conditions
-
Operating Temperature Range -20 – 80 °C [ -4 – 176 °F ]
-
Accuracy (% of FS) ±.3
Operation/Application
-
Output Signal Type ±2 mV/V, ±2 V
Industry Standards
-
IP Rating IP50
Other
-
Force Direction Compression, Tension
-
Zero Shift in CTR (%FS/°C) ±.5/50
-
Sensitivity Shift (%FS/°C) ±1/50
Reference Number
-
TE Internal Number CAT-FLS0037
