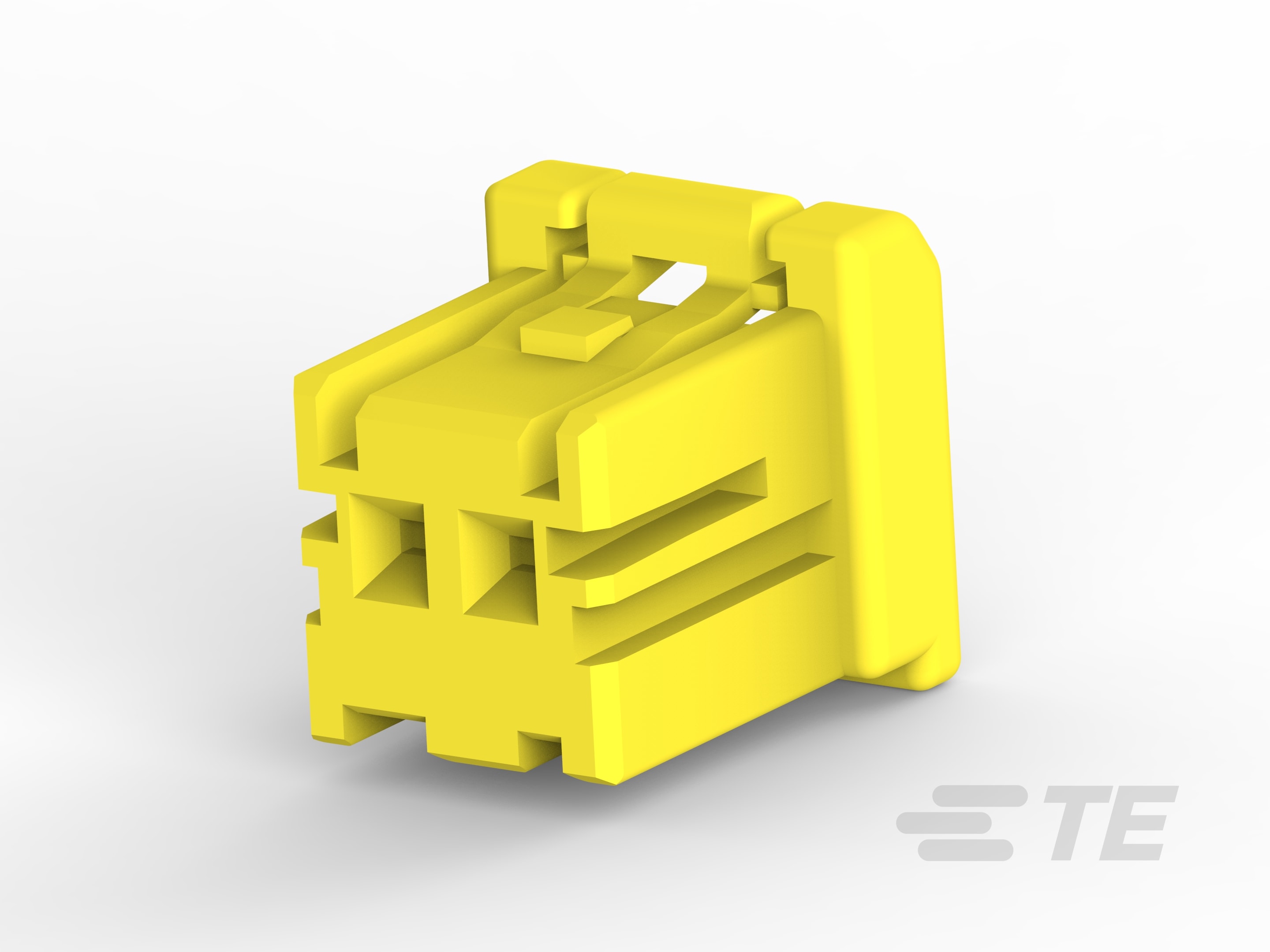

STD Temp Sig GRACE INERTIA Plug

STD Temp Sig GRACE INERTIA Plug-CAT-G7534A-P729
Standard Temperature Signal GRACE INERTIA plugs employ an inertia locking mechanism to simultaneously complete the circuit and "lock" the connector. This provides ideal mating reliability, prevents mismatching, and eliminates the need for complicated inspection processes.
More Less

Product Features

  • Connector System : Wire-to-Wire, Wire-to-Board

  • Number of Positions : 12, 3, 6, 8, 7, 5, 4, 2, 9

  • Centerline (Pitch) (mm): 2.5, 2

  • Centerline (Pitch) (in): .079, .098

  • Number of Rows : 2, 1

  • Housing Material : Nylon 66 GF, PBT GF

Available from

LADD Inc
Overview

Product Features

  • Dual beam contact design provides good contact and durability while four varieties of keying methods and colors are available for the series. An ergonomic design allows for easy assembly.
  • GRACE INERTIA connectors are made with several unique material varieties, including Glow Wire and standard temperature materials.
  • Lanceless contacts prevent snagging or entanglement.
  • Available in wire-to-board and wire-to-wire configurations.



  • Dual beam contact design provides good contact and durability while four varieties of keying methods and colors are available for the series. An ergonomic design allows for easy assembly.
  • GRACE INERTIA connectors are made with several unique material varieties, including Glow Wire and standard temperature materials.
  • Lanceless contacts prevent snagging or entanglement.
  • Available in wire-to-board and wire-to-wire configurations.
  • Dual beam contact design provides good contact and durability while four varieties of keying methods and colors are available for the series. An ergonomic design allows for easy assembly.
  • GRACE INERTIA connectors are made with several unique material varieties, including Glow Wire and standard temperature materials.
  • Lanceless contacts prevent snagging or entanglement.
  • Available in wire-to-board and wire-to-wire configurations.
  • Dual beam contact design provides good contact and durability while four varieties of keying methods and colors are available for the series. An ergonomic design allows for easy assembly.
  • GRACE INERTIA connectors are made with several unique material varieties, including Glow Wire and standard temperature materials.
  • Lanceless contacts prevent snagging or entanglement.
  • Available in wire-to-board and wire-to-wire configurations.
  • Dual beam contact design provides good contact and durability while four varieties of keying methods and colors are available for the series. An ergonomic design allows for easy assembly.
  • GRACE INERTIA connectors are made with several unique material varieties, including Glow Wire and standard temperature materials.
  • Lanceless contacts prevent snagging or entanglement.
  • Available in wire-to-board and wire-to-wire configurations.
    • Features

    Please review product documents or contact us for the latest agency approval information.

    Housing Features

    • Housing Color  Black, Blue, Yellow, Red, Natural

    • Centerline (Pitch) (mm) 2.5, 2

    • Centerline (Pitch) (in) .079, .098

    • Housing Material  Nylon 66 GF, PBT GF

    Packaging Features

    • Packaging Method  Package, Bag

    • Packaging Quantity  200, 1200, 600, 1000, 1350, 900, 300, 750, 400, 800, 1250, 500, 1600

    Electrical Characteristics

    • Operating Voltage (VDC) 50, 250

    • Operating Voltage (VAC) 250, 50

    Configuration Features

    • Number of Cavities  3, 9, 2, 4, 12, 6, 8, 5, 7

    • Number of Positions  12, 3, 6, 8, 7, 5, 4, 2, 9

    • Number of Rows  2, 1

    Operation/Application

    • Halogen Free  No

    • Circuit Application  Signal

    Dimensions

    • Connector Height (mm) 10.4, 11, 15.3, 11.3, 7.9

    • Connector Height (in) .445, .433, .409, .311, .511, .602

    • Row-to-Row Spacing (mm) 7.6

    • Row-to-Row Spacing (in) .3, .299

    • Product Length (mm) 9.54, 11.54, 18.2, 8.7, 17.2, 9.6, 7.1, 13.2, 5.54, 10.7, 12.1, 18.7, 8.2, 20.7, 5.7, 15.7, 19.2, 13.7, 7.54, 11.2, 14.6

    • Product Length (in) .279, .519, .677, .756, .736, .52, .454, .375, .618, .224, .378, .815, .342, .297, .476, .716, .218, .441, .44, .539, .575, .421, .323

    • Product Width (mm) 15.2, 15.3, 9.6, 6.75, 7.1, 5.88, 7.65

    • Product Width (in) .266, .231, .378, .301, .602, .598, .279

    Industry Standards

    • Glow Wire Rating  Standard Part - Not Glow Wire

    • UL Flammability Rating  UL 94V-0

    • Compatible With Agency/Standards Products  UL

    • Compatible With Approved Standards Products  UL E28476

    Identification Marking

    • Circuit Identification Feature  Without

    Contact Features

    • Contact Layout  Inline, Matrix

    • Contact Type  Socket

    Product Type Features

    • Connector System  Wire-to-Wire, Wire-to-Board

    • Connector & Housing Type  Plug

    • Sealable  No

    • Connector & Contact Terminates To  Wire & Cable

    Mechanical Attachment

    • Connector Mounting Type  Cable Mount (Free-Hanging)

    Usage Conditions

    • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

    Other

    • EU RoHS Compliance  Compliant

    • EU ELV Compliance  Compliant

    Reference Number

    • TE Internal Number CAT-G7534A-P729
